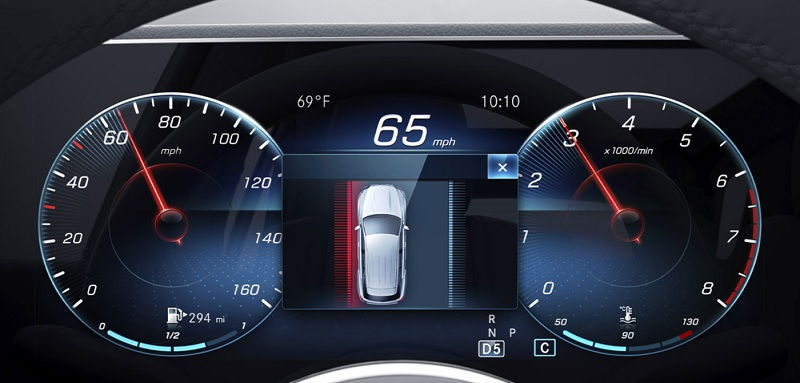

Mercedes Dashboard Symbols and Meanings GuideMechanic.Com Mercedes-Benz, renowned for its luxurious and sophisticated vehicles, equips its cars with a range of dashboard symbols to convey important information to drivers.
These symbols, often illuminated in various colors, are designed to alert drivers about potential issues or provide useful information about the vehicle’s status. However, deciphering these symbols can be a challenge, especially for those unfamiliar with Mercedes-Benz models.
In this comprehensive guide, we will delve into the world of Mercedes dashboard symbols and their meanings. Whether you own a brand-new Mercedes or are considering purchasing one, understanding these symbols is crucial for your safety and peace of mind.
From warning indicators to information symbols, we will cover all the essential details to help you navigate the intricate dashboard of your Mercedes-Benz.
Mercedes Dashboard Symbols and Meanings: Warning Symbols
Warning symbols on your Mercedes dashboard indicate potential problems that require immediate attention. These symbols typically appear in red or amber colors to grab your attention. Understanding these symbols will help you identify the specific issue and take appropriate action.
Check Engine Light
The check engine light is one of the most common warning symbols. It resembles an engine outline and illuminates when there is a problem with your vehicle’s engine or emission control system.
This symbol could indicate anything from a loose gas cap to a serious engine malfunction. If the check engine light comes on, it is recommended to have your vehicle diagnosed by a professional as soon as possible.
Oil Pressure Warning
The oil pressure warning symbol looks like an oil can with a dripping oil drop. It typically illuminates when there is low oil pressure in the engine.
Low oil pressure can result from a variety of issues, such as insufficient oil levels, a faulty oil pump, or a clogged oil filter. If this symbol appears, it is crucial to stop your vehicle immediately, check the oil level, and seek professional assistance if needed.
Brake System Warning
The brake system warning symbol, resembling an exclamation mark within a circle, indicates a problem with your vehicle’s braking system.
It could signify anything from low brake fluid levels to a malfunctioning ABS (Anti-lock Braking System). When this symbol appears, it is important to have your brakes inspected and repaired by a qualified technician to ensure your safety on the road.
Mercedes Dashboard Symbols and Meanings: Indicator Lights
Indicator lights on your Mercedes dashboard provide important information about various systems and features of your vehicle. These symbols are generally blue or green and provide valuable insights into your vehicle’s status.
Tire Pressure Monitoring
The tire pressure monitoring symbol appears as an exclamation mark inside a horseshoe-shaped tire. It illuminates when there is a significant deviation in tire pressure.
Properly inflated tires are essential for optimal vehicle performance and fuel efficiency. If this symbol appears, it is recommended to check your tire pressures and adjust them accordingly.
Fuel Level Indicator
The fuel level indicator symbol resembles a gas pump and displays the current fuel level in your vehicle’s tank. It is crucial to keep an eye on this symbol to avoid running out of fuel.
Running out of fuel can not only leave you stranded but also potentially damage your vehicle’s fuel system. Refuel your vehicle when the fuel level is low to avoid any inconveniences.
Vehicle Stability Control
The vehicle stability control symbol, often represented by a car with wavy lines beneath it, indicates that your vehicle’s stability control system is active.
This system helps maintain traction and stability during challenging driving conditions. When this symbol illuminates, it means the system is engaged and actively working to keep your vehicle balanced. It is a reassuring symbol, especially in adverse weather or road conditions.
Mercedes Dashboard Symbols and Meanings: Service Reminders
Mercedes vehicles are equipped with service reminders to ensure timely maintenance and upkeep. These symbols serve as reminders for routine maintenance tasks and inspections, helping you keep your vehicle in optimal condition.
Oil Change Reminder
The oil change reminder symbol, often depicted as an oil can with a droplet, indicates that it is time for an oil change. Regular oil changes are vital to keep your engine running smoothly and efficiently.
When this symbol appears, it is recommended to schedule an oil change at your earliest convenience to maintain your vehicle’s performance and longevity.
Filter Replacement Reminder
Mercedes vehicles have various filters that require periodic replacement, such as air filters and cabin filters. The filter replacement reminder symbol typically appears as a filter outline with arrows pointing towards it.
This symbol signifies that it is time to replace one or more filters in your vehicle. Neglecting filter replacements can result in reduced air quality, compromised engine performance, and increased fuel consumption. Therefore, promptly replacing the filters is essential for your vehicle’s health.
Vehicle Inspection Reminder
The vehicle inspection reminder symbol, represented by a car with an exclamation mark inside it, appears to remind you that your vehicle is due for a comprehensive inspection. Regular inspections help ensure that your vehicle meets safety and emissions standards, identifies potential issues early on, and maintains its overall reliability. When this symbol appears, schedule an appointment with your trusted mechanic to have your vehicle thoroughly inspected.
Mercedes Dashboard Symbols and Meanings: Driver Assistance Systems
Modern Mercedes vehicles come equipped with advanced driver assistance systems that enhance safety and provide additional convenience. The symbols associated with these systems are designed to inform you about their status and functionality.
Adaptive Cruise Control
The adaptive cruise control symbol appears as a car with radar waves emanating from it. This symbol indicates that your vehicle’s adaptive cruise control system is active.
Adaptive cruise control maintains a set speed while automatically adjusting the distance to the vehicle ahead. When this symbol illuminates, it means the system is engaged and actively monitoring the road ahead to ensure a safe and comfortable driving experience.
Lane-Keeping Assist
The lane-keeping assist symbol, often represented by a car drifting out of its lane, indicates that your vehicle’s lane-keeping assist system is operational.
Lane-keeping assist helps prevent unintentional lane departures by gently steering the vehicle back into the correct lane. When this symbol appears, it means the system is active and ready to assist you in maintaining your lane position.
Blind-Spot Monitoring
The blind-spot monitoring symbol, typically represented by a vehicle with two arrows on either side, indicates that your vehicle’s blind-spot monitoring system is active.
This system alerts you if another vehicle enters your blind spot, helping you make safer lane changes. When this symbol illuminates, it means the system is actively monitoring your blind spots and will provide visual or audible alerts if necessary.
Mercedes Dashboard Symbols and Meanings: Temperature and Cooling System
The temperature and cooling system symbols on your Mercedes dashboard inform you about the status of your vehicle’s engine temperature and cooling system. These symbols are crucial for preventing engine overheating and ensuring optimal engine performance.
Engine Coolant Temperature Warning
The engine coolant temperature warning symbol, often depicted as a thermometer submerged in water, indicates that the engine temperature is too high.
Overheating can result from a variety of issues, such as low coolant levels, a malfunctioning thermostat, or a faulty radiator.
If this symbol appears, it is crucial to pull over, allow the engine to cool down, and seek professional assistance to prevent potential engine damage.
Coolant Level Warning
The coolant level warning symbol looks like a radiator or bucket with a liquid level indicator. It illuminates when the coolant level in your vehicle’s radiator or reservoir is low.
Insufficient coolant can lead to engine overheating and potential damage. If this symbol appears, check your coolant levels and top up if necessary. However, if the symbol persists, it is recommended to have your cooling system inspected for leaks or other issues.
Coolant Temperature Gauge
The coolant temperature gauge on your Mercedes dashboard provides real-time information about the engine’s temperature. It usually ranges from cold to hot, with the optimal operating temperature falling within the middle range.
Monitoring this gauge allows you to ensure that your engine is running at the correct temperature. If the gauge approaches the hot end, it indicates potential overheating, requiring immediate attention.
Mercedes Dashboard Symbols and Meanings: Electrical System
The electrical system symbols on your Mercedes dashboard inform you about the status of various electrical components in your vehicle. These symbols help identify potential issues with the battery, alternator, or lighting system.
Battery Charge Warning
The battery charge warning symbol looks like a battery with a positive and negative sign. It illuminates when there is a problem with your vehicle’s battery charging system.
This symbol could indicate a faulty alternator, loose or corroded battery terminals, or a weak battery. If this symbol appears, it is recommended to have your vehicle’s charging system inspected and repaired to avoid unexpected battery failure.
Alternator Warning
The alternator warning symbol typically appears as a battery with a lightning bolt inside it. It illuminates when there is an issue with your vehicle’s alternator, which is responsible for charging the battery and powering electrical components.
A malfunctioning alternator can lead to a drained battery or electrical system failure. If this symbol appears, it is crucial to have your alternator checked and replaced if necessary.
Lighting System Malfunction
The lighting system malfunction symbol resembles a light bulb and indicates a problem with one or more lighting components in your vehicle.
It could indicateanything from a blown bulb to a faulty wiring connection. When this symbol appears, it is important to inspect your vehicle’s exterior and interior lights to identify the problematic area. Replace any faulty bulbs or seek professional assistance to rectify any wiring issues.
Mercedes Dashboard Symbols and Meanings: Airbag and Safety Systems
Your Mercedes is equipped with advanced safety systems, including airbags, seat belt reminders, and other features designed to protect you and your passengers. The symbols associated with these systems provide important information about their status and functionality.
Airbag System Status
The airbag system status symbol typically appears as an inflated airbag within a circle. It illuminates briefly when you start your vehicle, indicating that the airbag system is functioning properly.
If this symbol remains illuminated or flashes continuously, it could indicate a problem with the airbag system. In such cases, it is crucial to have your vehicle inspected by a professional to ensure proper airbag operation in case of an accident.
Seat Belt Reminder
The seat belt reminder symbol resembles a person wearing a seat belt and illuminates when one or more occupants in the vehicle have not fastened their seat belts.
This symbol serves as a reminder to buckle up for your safety. Ensure that all occupants are wearing their seat belts before driving, as seat belts significantly reduce the risk of injury in the event of a collision.
Child Safety Lock
The child safety lock symbol appears as a small padlock within the outline of an open door. It indicates that the child safety lock feature is engaged on the respective door(s).
The child safety lock prevents the rear doors from being opened from the inside, ensuring the safety of children seated in the rear. When this symbol is illuminated, it means the child safety lock is active and cannot be disengaged from the inside.
Mercedes Dashboard Symbols and Meanings: Security and Immobilizer
Your Mercedes is equipped with security and immobilizer systems to deter theft and unauthorized access. Understanding the symbols associated with these systems will help you identify their status and ensure the security of your vehicle.
Vehicle Security System
The vehicle security system symbol looks like a car with a key inside it. It illuminates when the security system is armed, indicating that the vehicle is protected against unauthorized access.
When this symbol appears, it means the security system is active, and any attempts to unlock or start the vehicle without the proper key or remote will trigger an alarm. Always ensure that the security system is armed when leaving your vehicle unattended.
Immobilizer System
The immobilizer system symbol appears as a key within a car outline and indicates that the immobilizer system is active. The immobilizer system is designed to prevent unauthorized starting of your vehicle.
When this symbol is illuminated, it means the immobilizer system is engaged, and the engine will not start without the correct key or remote.
If you experience difficulties starting your vehicle and this symbol remains illuminated, consult your vehicle’s manual or contact a professional for assistance.
Mercedes Dashboard Symbols and Meanings: Audio and Infotainment
Your Mercedes is equipped with advanced audio and infotainment systems, providing entertainment and connectivity during your drives. The symbols associated with these systems help you navigate the various features and troubleshoot any potential issues.
Audio Source Selection
The audio source selection symbol allows you to choose between different audio sources, such as FM radio, AM radio, CD player, or Bluetooth connectivity.
This symbol typically appears as a series of icons representing the available audio sources. Use the corresponding buttons or touch screen controls to select your desired audio source.
Volume Control
The volume control symbol looks like a speaker with sound waves emanating from it. It allows you to adjust the volume of the audio system.
Use the volume control buttons or knobs to increase or decrease the volume to your preferred level. Some Mercedes models also allow you to control the volume using steering wheel-mounted controls.
Phone Connectivity
The phone connectivity symbol appears as a phone or Bluetooth icon and indicates that your vehicle is connected to a mobile device via Bluetooth.
This symbol allows you to make hands-free calls, stream music, and access other phone-related features through your vehicle’s audio system. Consult your vehicle’s manual for instructions on how to pair and connect your mobile device.
Mercedes Dashboard Symbols and Meanings: Miscellaneous Symbols
Mercedes vehicles feature various additional symbols on the dashboard that provide information about specific features or reminders. Understanding these symbols will help you make the most of your vehicle’s capabilities.
Seat Adjustment Reminder
The seat adjustment reminder symbol typically appears as a seat silhouette with arrows pointing in different directions. It reminds you to adjust your seat for optimal comfort and driving position.
When this symbol is illuminated, you can use the seat adjustment controls to modify the seat position, including seat height, angle, and lumbar support.
Convertible Roof Status
If you own a Mercedes convertible, you may have a convertible roof status symbol on your dashboard. This symbol indicates the status of your convertible roof, whether it is open, closed, or in the process of opening or closing.
Familiarize yourself with the specific symbol and its variations to accurately understand the current status of your convertible roof.
Windshield Wiper Indicator
The windshield wiper indicator symbol resembles a windshield with wavy lines indicating water or rain. It illuminates when the windshield wipers are activated.
This symbol serves as a reminder to turn on your wipers during rainy or snowy conditions for improved visibility. Adjust the wiper speed using the wiper control stalk or buttons, depending on your vehicle’s configuration.
In conclusion, understanding the symbols that adorn your Mercedes dashboard is essential for maintaining your vehicle’s performance, safety, and overall functionality.
By familiarizing yourself with these symbols and their meanings, you can effectively respond to alerts and take appropriate action when necessary.
Always consult your vehicle’s manual for detailed information and seek professional assistance if you are unsure about any symbol or issue. Drive safely and confidently with your Mercedes-Benz!
