Understanding “Cylinder 7 Exhaust Valve Control Circuit/Open” – Causes, Symptoms, and Solutions GuideMechanic.Com In modern internal combustion engines, precise control over intake and exhaust valve operation is critical for optimal performance, emissions, and fuel efficiency.

Technologies like Variable Valve Timing (VVT) and cylinder deactivation systems have added complexity to valve operation, especially in multi-cylinder engines like V8s.

When issues arise with the electrical systems that manage these valves, diagnostic trouble codes (DTCs) can help identify the source.

One such issue is a “Cylinder 7 Exhaust Valve Control Circuit/Open” fault. This article will explore what this code means, how the system works, potential causes and symptoms, and how to properly diagnose and repair the problem.

What Does “Cylinder 7 Exhaust Valve Control Circuit/Open” Mean?

This fault refers to a problem with the electrical control circuit responsible for managing the exhaust valve actuator or solenoid on Cylinder 7. Specifically, the term “open” means the circuit is incomplete—there is a break in the wiring or connection, or a component in the circuit has failed, preventing electrical current from reaching the exhaust valve actuator.

When the Engine Control Module (ECM) sends a command to actuate the exhaust valve and does not receive a proper voltage or feedback signal, it logs this fault.

The ECM expects the circuit to be closed and functioning properly when active. If it detects an open circuit (like a disconnected wire, broken solenoid, or faulty ECM driver), it sets a fault code.

How the Exhaust Valve Control Circuit Works

Modern engines may use electrically-controlled solenoids or hydraulically-assisted actuators to control the timing and duration of exhaust valve opening.

These components are commanded by the ECM based on inputs like engine speed, load, throttle position, and temperature.

In V8 engines with cylinder deactivation systems (such as Active Fuel Management [AFM] or Dynamic Fuel Management [DFM] used in GM vehicles), exhaust valves in certain cylinders are disabled during light-load conditions to improve fuel economy.

This is done by electronically controlling oil pressure and special valve lifters through solenoids in the valve lifter oil manifold assembly (VLOM).

If the exhaust valve solenoid or actuator for Cylinder 7 fails to receive voltage—or if there is a break in the circuit—the ECM flags the condition as an open circuit, causing drivability issues or reducing system functionality.

Common Causes of a Cylinder 7 Exhaust Valve Control Circuit/Open Fault

Several issues can lead to an open circuit in the exhaust valve control system. The most common include:

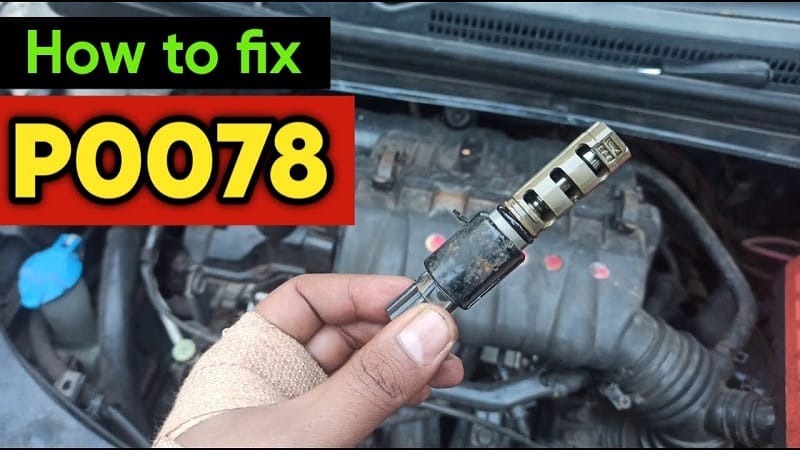

1. Faulty Exhaust Valve Control Solenoid (Cylinder 7)

Solenoids can fail due to internal wear, electrical failure, or contamination.
A failed solenoid may present infinite resistance or no continuity.

2. Damaged Wiring or Connectors

Wires going to the solenoid or actuator may become corroded, frayed, cut, or disconnected.
Broken or loose pins in the connector can also open the circuit.

3. Faulty Exhaust Valve Actuator

On engines with more advanced systems, actuators may control valve movement directly.
If the actuator motor or sensor fails, the circuit may appear open to the ECM.

4. Malfunctioning ECM Driver Circuit

The ECM’s internal circuit that supplies or monitors voltage to the valve solenoid may fail.
Though rare, this is possible especially if the circuit is shorted for an extended time.

5. Incorrect or Contaminated Engine Oil

In oil-actuated systems, dirty or wrong-viscosity oil can clog internal passages or cause solenoids to stick, indirectly contributing to circuit-related faults.

Symptoms of a Cylinder 7 Exhaust Valve Circuit/Open Condition

Depending on the severity of the issue, the vehicle may exhibit one or more of the following symptoms:

Check Engine Light (CEL) is illuminated.
Engine runs rough, especially at idle or light throttle.
Reduced power or poor acceleration.
Unusual ticking or tapping noises from the engine.
Poor fuel economy (if cylinder deactivation is disabled).
Misfire-like behavior in Cylinder 7.
Vehicle enters “limp mode” in severe cases.

Diagnosing Cylinder 7 Exhaust Valve Circuit/Open

Proper diagnosis is essential to avoid unnecessary part replacement. Below is a typical diagnostic approach:

1. Scan for Codes

Use an OBD-II scan tool to retrieve the fault code and confirm it refers to Cylinder 7.

Note any companion codes (e.g., related to intake valve control, misfire, or oil pressure).

2. Inspect Wiring and Connectors

Visually inspect the harness going to the Cylinder 7 valve control solenoid.

Look for corrosion, broken wires, oil intrusion, or loose connections.

3. Check Solenoid Resistance

Disconnect the solenoid connector and measure resistance across the terminals using a multimeter.

Compare values to the manufacturer’s specs (typically 5–20 ohms).

Infinite resistance indicates an open circuit in the solenoid.

4. Check for Power and Ground

Use a test light or multimeter to verify that the ECM is sending voltage to the solenoid when commanded.

A missing power or ground signal may indicate a wiring or ECM issue.

5. Perform Actuator Test (if equipped)

On some scan tools, you can command the solenoid or actuator on/off to test its function.

Lack of response may confirm a mechanical or electrical failure.

6. Inspect Engine Oil

Check oil level, condition, and viscosity.

Dirty or low oil may contribute to valve control issues, especially in AFM/DFM engines.

Fixes for Cylinder 7 Exhaust Valve Circuit/Open

Based on diagnosis, the following repairs may resolve the issue:

Replace the Cylinder 7 exhaust valve control solenoid or actuator.
Repair or replace damaged wiring or corroded connectors.
Clean or flush oil passages, especially if oil sludge is suspected.
Replace or reprogram the ECM (only if confirmed as faulty).
Change engine oil and filter, using the recommended type and viscosity.

Vehicles Commonly Affected

This fault is most commonly found in V8 engines with cylinder deactivation systems, including:

GM: Chevrolet Silverado, Tahoe, Suburban, Camaro; GMC Sierra, Yukon; Cadillac Escalade.
Chrysler/Dodge: HEMI V8s with Multi-Displacement System (MDS).
Honda: V6 engines with Variable Cylinder Management (VCM).
Ford: Some models with EcoBoost or advanced VCT systems.

Preventing Future Valve Circuit Issues

To help prevent exhaust valve circuit faults:

Use high-quality engine oil and change it regularly.
Inspect wiring harnesses periodically for signs of wear or damage.
Avoid extended idling, which may contribute to oil sludge buildup.
Listen for abnormal engine noises, which may indicate early lifter or solenoid failure.
Stay current with ECM updates, especially if the manufacturer has issued TSBs (Technical Service Bulletins) regarding valve control issues.

Conclusion

A “Cylinder 7 Exhaust Valve Control Circuit/Open” fault may seem intimidating, but it usually points to a problem that can be resolved with methodical diagnosis and repair.

Whether it’s a failed solenoid, broken wire, or oil-related issue, addressing this problem early can help restore proper engine performance and avoid long-term damage.

Because modern engines rely heavily on electronics and precise control systems, even a small issue like an open circuit can lead to larger problems if ignored.

By understanding how the system works and responding promptly, drivers and technicians can keep the engine running smoothly and efficiently.
