P3451 Cylinder 7 Deactivation/Intake Valve Control Circuit Low: What It Means and How to Fix It GuideMechanic.Com As modern internal combustion engines continue to evolve, many manufacturers have implemented advanced technologies like cylinder deactivation to improve fuel efficiency without sacrificing performance.
While these systems work remarkably well, they are not immune to faults. One such fault is DTC P3451 – “Cylinder 7 Deactivation/Intake Valve Control Circuit Low.”
In this article, we’ll break down the meaning of this code, explore how the underlying system works, examine the symptoms and causes, and explain diagnostic and repair procedures.
See Also: P3450 Cylinder 7 Deactivation/Intake Valve Control Circuit Performance
P3451 Cylinder 7 Deactivation/Intake Valve Control Circuit Low
What is Code P3451?

P3451 is a generic powertrain trouble code related specifically to the cylinder deactivation system, particularly affecting cylinder number 7.
It indicates that the Engine Control Module (ECM) has detected low voltage in the intake valve control circuit for that cylinder.
This control circuit is responsible for operating the intake valve deactivation solenoid, which enables or disables the intake valves during cylinder deactivation.
A low voltage condition typically suggests an electrical issue such as a short to ground, high resistance, or a failed solenoid.
Understanding Cylinder Deactivation
Cylinder deactivation, also known as Active Fuel Management (AFM) by General Motors or Variable Cylinder Management (VCM) by Honda, is a system that temporarily disables half of the engine’s cylinders during light-load conditions (like highway cruising) to save fuel.
In a V8 engine, this means it can run as a V4 by deactivating cylinders like 1, 4, 6, and 7. This is achieved by:
- Disabling the operation of intake and exhaust valves through special hydraulic lifters.
- Cutting fuel and spark to the affected cylinders.
- Using solenoids that control oil pressure to activate/deactivate the valve lifters.
- P3451 specifically refers to a fault in the electrical circuit controlling the solenoid for cylinder 7’s intake valve.
P3451 Cylinder 7 Deactivation/Intake Valve Control Circuit Low
Meaning of “Circuit Low”
When a code indicates “circuit low”, it means that the voltage in the control wire is lower than expected. This could be caused by:
- A short to ground.
- Excessive resistance in wiring or connectors.
- A faulty component (like a solenoid).
- A malfunctioning ECM output.
The ECM continuously monitors these circuits for proper voltage and response. If the voltage stays too low during or after an activation command, the ECM triggers DTC P3451.
Symptoms of Code P3451
Depending on the vehicle and the severity of the fault, drivers may experience a range of symptoms, including:
- Check Engine Light illuminated.
- Reduced fuel economy (because cylinder deactivation may be disabled).
- Engine runs rough, especially when transitioning between V8 and V4 mode.
- Ticking or tapping noise from the valve train.
- Loss of power under acceleration.
- Limp mode activation in some vehicles, limiting performance to prevent damage.
P3451 Cylinder 7 Deactivation/Intake Valve Control Circuit Low
Causes of P3451
Here are the most common causes of code P3451:
- Faulty Cylinder 7 Deactivation Solenoid (Valve Lifter Oil Manifold Solenoid)
- Internal failure can cause incorrect electrical resistance or short to ground.
- Damaged Wiring or Connectors
- Corrosion, wear, or rodent damage to the wiring harness leading to cylinder 7’s control solenoid.
Low or Dirty Engine Oil
Oil pressure plays a critical role in the operation of the deactivation system. Dirty or insufficient oil can affect solenoid operation.
Clogged Oil Passages
Debris or sludge can block oil flow to the lifters or solenoids, leading to improper function.
Faulty Intake Valve Lifter
A mechanical failure in the valve lifter can lead to improper valve control.
Malfunctioning ECM
Although rare, the ECM might fail to deliver the correct signal or interpret the voltage inaccurately.
P3451 Cylinder 7 Deactivation/Intake Valve Control Circuit Low
How to Diagnose Code P3451
1. Connect a Scan Tool
Retrieve the stored trouble codes and check freeze frame data.
Confirm the presence of P3451 and look for other related codes (e.g., P3400-P3457).
2. Visual Inspection
Inspect the wiring harness and connectors near the valve lifter oil manifold and cylinder head.
Look for signs of burnt wires, exposed conductors, corrosion, or loose pins.
3. Check Engine Oil
Verify oil level and condition.
If dirty, thick, or low, replace it with the manufacturer-recommended oil.
4. Test the Solenoid
Use a multimeter to measure the resistance of the cylinder 7 deactivation solenoid.
Compare readings to factory specifications (typically between 5–20 ohms).
5. Check Circuit Voltage
With the key on, engine off, test for voltage at the solenoid connector.
Voltage should match battery voltage.
If low, trace back the circuit to find possible shorts or open circuits.

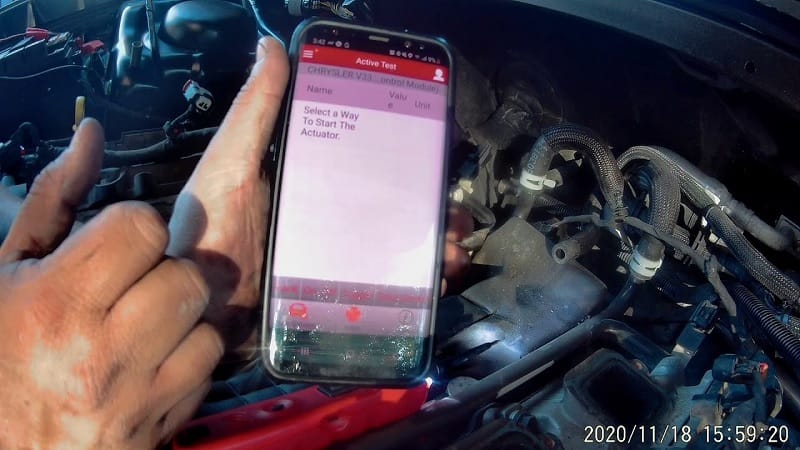

6. Perform a Functional Test
Use a scan tool with bi-directional control to activate the solenoid and observe system response.
7. Inspect Lifter and Oil Control System
If all electronics are functional, internal engine inspection may be necessary to check for lifter failure or oil delivery issues.
P3451 Cylinder 7 Deactivation/Intake Valve Control Circuit Low
Common Fixes for P3451
After diagnosing the issue, here are common solutions:
- Replace the intake valve control solenoid for cylinder 7.
- Repair or replace damaged wiring or connectors.
- Change engine oil and filter if dirty or degraded.
- Flush the engine or clean oil passages if sludge is present.
- Replace the intake valve lifter, especially if accompanied by noise or rough performance.
- Update or reprogram the ECM, or in rare cases, replace it if it proves defective.
Note: Always disconnect the battery and follow safety procedures when working with engine electronics.
Vehicles Commonly Affected
The P3451 code is most often seen in General Motors vehicles equipped with Active Fuel Management (AFM) systems, particularly with V8 engines such as:
- Chevrolet Silverado, Suburban, Tahoe
- GMC Sierra, Yukon
- Cadillac Escalade
- Chevrolet Avalanche
- Buick and some older Pontiac V8 models
Prevention Tips
Use high-quality engine oil recommended by the manufacturer.
Change oil on time to prevent sludge buildup.
Avoid extended idling and short trips that prevent full engine warm-up.
Listen for unusual engine noises and address them early.
Inspect and protect wiring in the engine bay, especially if driving in harsh environments.
Conclusion
The P3451 – Cylinder 7 Deactivation/Intake Valve Control Circuit Low code is an indication of an electrical or hydraulic issue preventing proper valve deactivation.
It’s often related to the solenoid control circuit, oil condition, or valve lifter operation. While the issue may not cause immediate drivability problems, ignoring it can reduce fuel efficiency and lead to long-term engine wear.
By understanding the symptoms, causes, and diagnostic procedures, technicians and vehicle owners can address this fault promptly and avoid more serious engine complications.
Keeping up with regular maintenance and monitoring engine performance is the best way to prevent this and other AFM-related trouble codes.
