2002 Ford Explorer Fuel Pump GuideMechanic.Com The fuel pump is a crucial component of any vehicle, and the 2002 Ford Explorer is no exception.
In this blog article, we will delve into the various aspects of the fuel pump in the 2002 Ford Explorer, providing you with a comprehensive understanding of its functionality, common issues, maintenance tips, and future advancements.
Whether you are a Ford Explorer owner or simply curious about the inner workings of a fuel pump, this article will serve as your ultimate guide.
See Also: 2012 Ford Focus Catalytic Converter
Understanding the Fuel Pump System

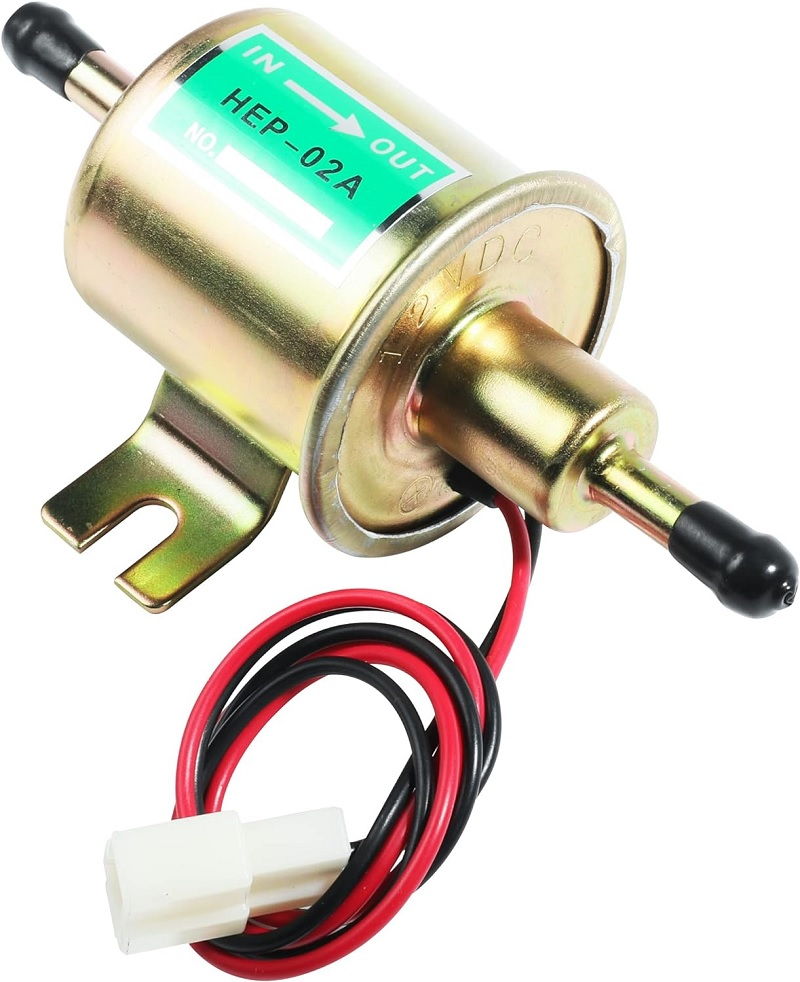

Check out this 12V Electric Fuel Pump,Universal Heavy Duty Electric Fuel Pump Inline Fuel Pump
When it comes to the fuel pump system in the 2002 Ford Explorer, several components work together to ensure a steady flow of fuel from the tank to the engine.
Understanding how these components interact is essential for troubleshooting and maintaining the fuel pump system. Let’s explore each component in detail:
The Fuel Pump
At the heart of the fuel pump system is, of course, the fuel pump itself. The fuel pump is responsible for drawing fuel from the tank and delivering it to the engine with the necessary pressure.
In the 2002 Ford Explorer, the fuel pump is typically located inside the fuel tank. It consists of an electric motor, a pump assembly, and a sending unit.
The electric motor drives the pump assembly, which pressurizes the fuel and sends it through the fuel lines to the engine.
The Fuel Tank
The fuel tank in the 2002 Ford Explorer serves as the storage container for the fuel. It is typically made of steel or plastic to prevent corrosion and leaks.
The fuel tank is equipped with various components, including a fuel level sensor, a fuel filler neck, and a fuel pump module. These components work together to ensure the safe and efficient containment of fuel within the tank.
The Fuel Lines
The fuel lines are the conduits through which fuel travels from the tank to the engine. In the 2002 Ford Explorer, there are two main fuel lines: the supply line and the return line.
See Also: 2003 Ford Expedition Catalytic Converter
The supply line carries pressurized fuel from the fuel pump to the engine, while the return line transports excess fuel back to the tank.
The fuel lines are typically made of steel or high-pressure-rated rubber to withstand the demands of the fuel delivery system.
The Fuel Injectors
The fuel injectors play a crucial role in delivering fuel to the engine cylinders. In the 2002 Ford Explorer, the fuel injectors are electronically controlled and precisely calibrated to ensure the correct amount of fuel is sprayed into each cylinder during the combustion process.
The fuel injectors receive pressurized fuel from the supply line and atomize it into a fine mist for efficient combustion.
Summary: The fuel pump system in the 2002 Ford Explorer consists of the fuel pump, fuel tank, fuel lines, and fuel injectors. Each component plays a vital role in ensuring the proper delivery of fuel from the tank to the engine.
Signs of a Failing Fuel Pump

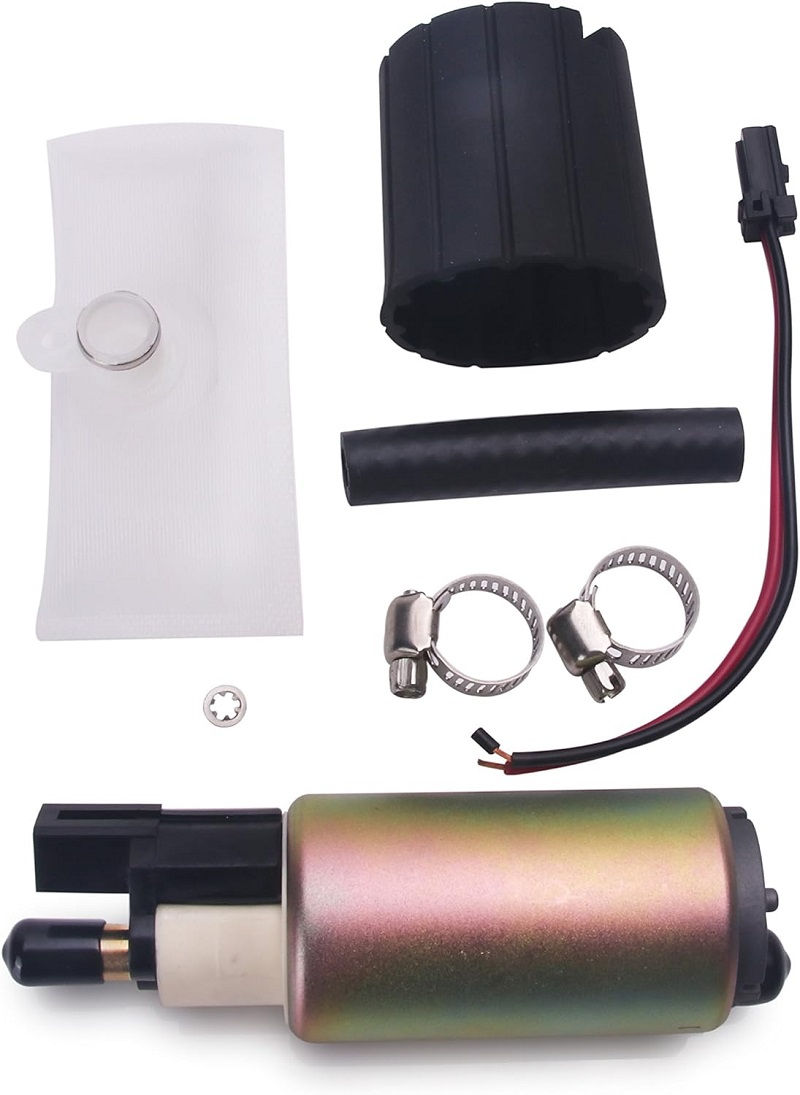

Check out this Vanbol Electric Fuel Pump Install Kit Fit
Recognizing the signs of a failing fuel pump is crucial in order to address the issue promptly and avoid potential breakdowns. Here are some common indicators that may suggest a problem with the fuel pump in your 2002 Ford Explorer:
Engine Misfires
If your engine frequently misfires or runs rough, it could be a sign of a failing fuel pump. A weak or malfunctioning fuel pump may not be able to deliver the proper amount of fuel to the engine, resulting in incomplete combustion and misfires.
If you notice a significant decrease in engine performance or a noticeable shaking or hesitation during acceleration, it’s important to have your fuel pump checked.
Difficulty Starting the Vehicle
A failing fuel pump can make it difficult to start your 2002 Ford Explorer. If you experience prolonged cranking or multiple attempts to start the engine, it could indicate that the fuel pump is not delivering enough fuel to facilitate ignition.
This can be especially noticeable when starting the vehicle after it has been parked for an extended period of time.
If you find yourself frequently needing to prime the fuel system or use starting fluid to get the engine running, it’s likely time to have your fuel pump inspected.
Sudden Loss of Power
A sudden loss of power while driving can be a dangerous situation and may indicate a failing fuel pump. If your 2002 Ford Explorer experiences a sudden drop in power or struggles to maintain speed, it could be due to a lack of sufficient fuel supply.
See Also: Ford Ranger Catalytic Converter
This can occur when the fuel pump fails to deliver the necessary fuel pressure or flow rate. If you notice a significant decrease in acceleration or a loss of power during uphill climbs or when carrying heavy loads, it’s important to have your fuel pump evaluated.
Engine Stalling
A failing fuel pump can also cause the engine to stall unexpectedly. If your 2002 Ford Explorer stalls while idling or driving, it could be a result of inadequate fuel delivery.
A faulty fuel pump may not be able to maintain consistent fuel pressure, causing the engine to stall when the demand for fuel exceeds its capabilities.
If you experience frequent stalling or the engine cuts out intermittently, it’s crucial to have your fuel pump system inspected as soon as possible.
Whining Noise from the Fuel Tank
A whining noise coming from the fuel tank area can be an early warning sign of a failing fuel pump. As the fuel pump deteriorates, it may produce a high-pitched whining or buzzing sound.
This is often caused by worn-out bearings or a failing electric motor. If you hear any unusual noises coming from the fuel tank, especially during or after starting the engine, it’s advisable to have your fuel pump inspected.
Fuel Odor
If you detect a strong smell of fuel inside or outside your 2002 Ford Explorer, it could be indicative of a fuel pump issue.
A failing fuel pump can cause fuel to leak or seep from the pump assembly or the fuel lines, leading to a noticeable odor.
Fuel leaks are a serious safety concern and should be addressed immediately. If you notice any fuel odors, it’s important to have your fuel pump system inspected to identify and rectify the source of the leak.
Check Engine Light
While the check engine light can illuminate for various reasons, it may also indicate a problem with the fuel pump in your 2002 Ford Explorer.
If your vehicle’s onboard diagnostic system detects an issue with the fuel pump or fuel delivery system, it will trigger the check engine light.
If the check engine light remains illuminated or flashes intermittently, it’s essential to have your vehicle scanned for diagnostic trouble codes (DTCs) to identify the specific issue and take appropriate action.
Reduced Fuel Efficiency
A failing fuel pump can cause a decrease in fuel efficiency, resulting in more frequent visits to the gas station. If you notice a significant drop in your 2002 Ford Explorer’s fuel economy, it could be attributed to a fuel pump that is not delivering fuel efficiently.
A weakened or faulty fuel pump may struggle to maintain the proper fuel pressure, leading to inefficient combustion and increased fuel consumption.
If you find yourself filling up more often than usual or notice a decrease in your vehicle’s mileage per gallon, it’s advisable to have your fuel pump system inspected.
Difficulty Passing Emissions Tests
If your 2002 Ford Explorer fails emissions tests or struggles to meet the required emissions standards, it could be a result of a failing fuel pump.
See Also: 2013 Ford Explorer Catalytic Converter
A malfunctioning fuel pump can disrupt the fuel-air mixture ratio, leading to incomplete combustion and increased emissions.
If you consistently fail emissions tests or experience difficulties in meeting emission regulations, it’s important to have your fuel pump system evaluated and repaired to ensure compliance.
Intermittent Issues
Intermittent issues or sporadic occurrences of any of the aforementioned symptoms can also indicate a problem with the fuel pump.
Fuel pump failures may not always be constant or predictable, making diagnosis more challenging. If you experience occasional symptoms that seem to come and go, it’s essential to have your fuel pump system thoroughly inspected to identify any underlying issues.
Summary: Recognizing the signs of a failing fuel pump in your 2002 Ford Explorer is crucial for timely repairs and avoiding potential breakdowns.
Symptoms such as engine misfires, difficulty starting the vehicle, sudden loss of power, engine stalling, unusual noises, fuel odors, check engine light illumination, reduced fuel efficiency, difficulty passing emissions tests, or intermittent issues can all indicate a problem with the fuel pump system.
Diagnosing Fuel Pump Problems
Check out this CUSTONEPARTS High Performance Aftermarket Electric Intank Fuel Pump With Installation Kit
If you suspect a fuel pump issue in your 2002 Ford Explorer, diagnosing the problem accurately is vital to prevent unnecessary repairs and expenses.
While professional assistance is recommended for a thorough diagnosis, there are several diagnostic techniques and tools that you can use to assess the health of your fuel pump system. Here are some key methods to consider:
Visual Inspection
A visual inspection of the fuel pump system can provide valuable insights into potential issues. Start by examining the fuel lines, looking for signs of leaks, cracks, or loose connections. Inspect the fuel tank for any visible damage or corrosion.
Additionally, check the area around the fuel pump for any signs of fuel leakage or residue. A thorough visual inspection can help identify any physical damage or visible abnormalities that may affect the performance of the fuel pump system.
Fuel Pressure Testing
One ofthe most reliable ways to diagnose fuel pump problems is through fuel pressure testing. This test measures the fuel pressure delivered by the fuel pump to the engine.
To perform a fuel pressure test on your 2002 Ford Explorer, you will need a fuel pressure gauge and the appropriate adapters for your fuel system.
Begin by locating the fuel pressure test port, which is typically found on the fuel rail or fuel line. Connect the fuel pressure gauge to the test port and start the engine.
The gauge will display the current fuel pressure reading. Compare this reading to the manufacturer’s specified fuel pressure range for your vehicle.
If the measured fuel pressure falls outside of the recommended range, it may indicate a problem with the fuel pump, such as a weak pump or a clogged fuel filter.
See Also: 2004 Ford Expedition Fuel Pump
However, it’s important to note that a low fuel pressure reading could also be caused by other factors, such as a faulty fuel pressure regulator or a restricted fuel line.
Conversely, if the fuel pressure is too high, it may suggest a malfunctioning fuel pressure regulator. In either case, consulting a professional mechanic or referring to the vehicle’s service manual is advisable to accurately diagnose and address the issue.
Fuel Volume Testing
In addition to fuel pressure testing, fuel volume testing can provide further insights into the performance of your 2002 Ford Explorer’s fuel pump system. Fuel volume testing measures the amount of fuel delivered by the fuel pump over a specified period of time.
To perform this test, you will need a fuel pressure gauge, a container to collect fuel, and a stopwatch or timer. Begin by disconnecting the fuel line at the fuel rail or fuel filter and attaching the fuel pressure gauge. Place the other end of the fuel line into the collection container.
Start the engine and allow it to idle for a specific duration, usually 30 seconds to one minute. During this time, the fuel will flow into the container, and the gauge will display the fuel volume.
Compare the measured fuel volume to the manufacturer’s specified range for your vehicle. If the fuel volume falls below the recommended range, it may indicate a weak or failing fuel pump that is not delivering an adequate amount of fuel to the engine.
However, similar to fuel pressure testing, other factors such as a clogged fuel filter or a restricted fuel line can also affect the fuel volume. Therefore, professional diagnosis or consultation with an experienced mechanic is recommended.
Electrical Testing
In some cases, fuel pump problems can be attributed to electrical issues rather than mechanical failures. To assess the electrical aspect of the fuel pump system, you can perform various tests using a multimeter or electrical testing equipment.
Start by checking the fuel pump fuse and relay, as a blown fuse or a faulty relay can prevent the fuel pump from receiving power. If the fuse or relay is faulty, replacing it may resolve the issue.
Additionally, you can use a multimeter to test the voltage at the fuel pump connector. Connect the multimeter to the power and ground terminals of the fuel pump connector while the engine is running.
The multimeter should display the voltage being supplied to the fuel pump. If no voltage is detected, it may indicate an electrical problem in the fuel pump circuit, such as a broken wire or a malfunctioning fuel pump relay.
However, it’s important to exercise caution when working with electrical components, and if you are not familiar with electrical testing procedures, it is advisable to seek professional assistance.
Additional Diagnostic Tools
In addition to the aforementioned diagnostic methods, there are other specialized tools and techniques that can aid in diagnosing fuel pump problems in your 2002 Ford Explorer.
For example, a fuel pressure gauge with a built-in fuel flow meter can provide simultaneous measurements of fuel pressure and flow rate, offering a more comprehensive assessment of the fuel pump’s performance.
Additionally, some vehicles may have onboard diagnostic systems that can retrieve trouble codes related to the fuel pump or fuel delivery system.
Using a diagnostic scanner or code reader, you can retrieve these codes and refer to the vehicle’s service manual or consult a professional for further guidance.
Overall, the use of appropriate diagnostic tools and techniques can help pinpoint the exact cause of fuel pump problems, enabling you to take the necessary steps for repair or replacement.
Summary: Diagnosing fuel pump problems in your 2002 Ford Explorer involves various methods, including visual inspection, fuel pressure testing, fuel volume testing, electrical testing, and the use of specialized diagnostic tools.
These diagnostic techniques can help identify issues such as inadequate fuel pressure, low fuel volume, electrical malfunctions, or other factors affecting the fuel pump’s performance.
Replacing the Fuel Pump
If your 2002 Ford Explorer’s fuel pump is beyond repair or has been diagnosed as faulty, replacing it is necessary to ensure proper fuel delivery and engine performance.
While replacing a fuel pump can be a complex task, with the right tools and knowledge, you can successfully complete the replacement process. Here is a step-by-step guide to help you replace the fuel pump in your 2002 Ford Explorer:
Gather the Necessary Tools and Materials
Before you begin the fuel pump replacement process, ensure that you have all the required tools and materials on hand.
Some of the tools you may need include a socket wrench set, screwdrivers, pliers, a fuel line disconnect tool, a fuel pump lock ring removal tool, a rubber mallet or hammer, and a suitable container to collect fuel. Additionally, you will need a new fuel pump assembly that is compatible with your 2002 Ford Explorer.
Prepare for Fuel System Service
Working with the fuel system requires safety precautions due to the flammable nature of gasoline. Start by ensuring that your vehicle is parked in a well-ventilated area away from open flames, sparks, or sources of ignition.
Next, relieve the fuel system pressure by locating the fuel pump relay or fuse in the vehicle’s fuse box. Remove the relay or fuse to disable the fuel pump, and then start the engine. Allow it to run until it stalls, indicating that the fuel pressure has been relieved.
Once the engine has stalled, turn off the ignition and disconnect the battery’s negative terminal to prevent accidental sparks.
Access the Fuel Pump
In the 2002 Ford Explorer, the fuel pump is typically located inside the fuel tank. Accessing the fuel pump requires removing the fuel tank, so ensure that the tank is as empty as possible to reduce its weight. Begin by disconnecting the filler neck hose and vent hose from the fuel tank.
Next, support the fuel tank with a hydraulic jack or other suitable support mechanism. Loosen and remove the fuel tank straps, carefully lower the tank, and disconnect the electrical connectors and fuel lines attached to the tank.
Once the tank is disconnected, lower it further to gain access to the fuel pump module, which is secured by a lock ring.
Remove the Fuel Pump Module
To remove the fuel pump module, use a fuel pump lock ring removal tool that matches the specifications of your vehicle. Attach the tool to the lock ring and use a rubber mallet or hammer to loosen and remove the lock ring.
With the lock ring removed, carefully lift the fuel pump module out of the fuel tank, taking care not to damage the float arm or other components. Inspect the module for any signs of damage or contamination that may have contributed to the fuel pump failure.
Install the New Fuel Pump
Before installing the new fuel pump, compare it to the old one to ensure they are identical and compatible with your 2002 Ford Explorer. Start by transferring any necessary components from the old fuel pump to the new one, such as the fuel level sensor or float arm.
Once the new fuel pump is prepared, carefully lower it into the fuel tank, aligning the mounting points with the corresponding holes.
Ensure that the fuel pump module is seated securely in the tank. Reinstall the lock ring and use the lock ring removal tool to tighten it, ensuring a proper seal.
Reassemble the Fuel System
With the new fuel pump installed, it’s time to reassemble the fuel system. Begin by reconnecting the electrical connectors and fuel lines to the fuel tank, ensuring that all connections are secure. Raise the fuel tank back into position using the hydraulic jack or support mechanism.
Once the tank is in place, reinstall and tighten the fuel tank straps. Reconnect the filler neck hose and vent hose, ensuring they are properly secured. Finally, double-check all connections, including the fuel lines and electrical connectors, to ensure they are tight and leak-free.
Test the Fuel Pump System
After replacing the fuel pump, it’s important to test the system before starting the engine. First, reconnect the battery’s negative terminal.
Then, turn the ignition key to the “On” position without starting the engine. Listen for the sound of the fuel pump priming or running.
This indicates that the fuel pump is receiving power and functioning correctly. Additionally, check for any fuel leaks around the fuel tank or connections.
If everything appears to be in order, you can proceed to start the engine and confirm that the new fuel pump is operating as expected.
Summary: Replacing the fuel pump in your 2002 Ford Explorer requires gathering the necessary tools and materials, preparing for fuel system service, accessing the fuel pump, removing the old fuel pump module, installing the new fuel pump, reassembling the fuel system, and testing the fuel pump system for proper operation.
