4l60e Shift Solenoid GuideMechanic.Com At the heart of the 4L60E transmission lies a critical component known as the shift solenoid. This electro-hydraulic valve is responsible for controlling the flow and pressure of fluid within the transmission, allowing for smooth and efficient gear changes.

Understanding the Basics of the 4L60E Shift Solenoid

Understanding the basics of the 4L60E shift solenoid is essential for anyone looking to gain a comprehensive understanding of automatic transmissions.

Construction and Design

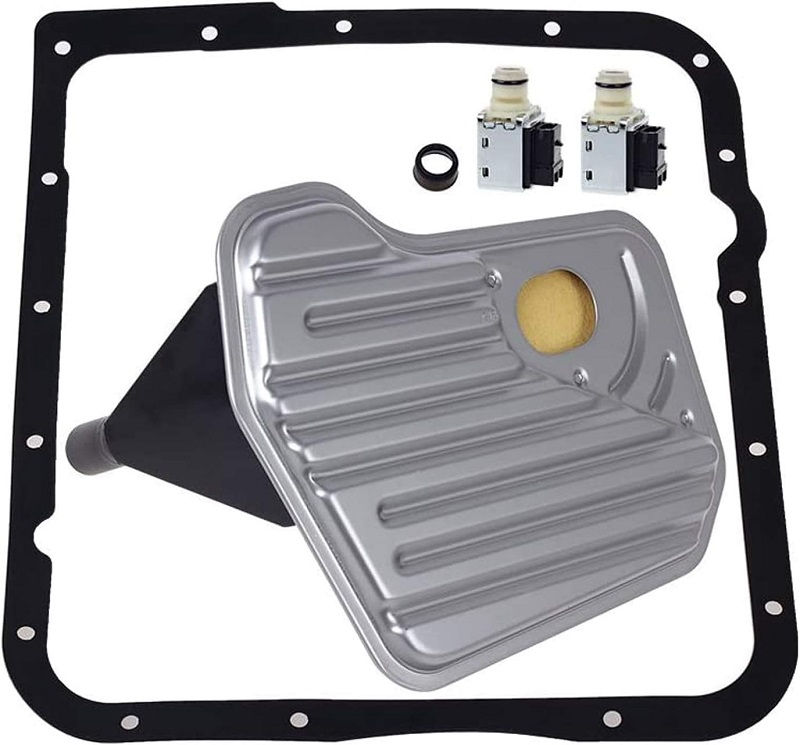

Check out this HERCOO 4L60E Shift Transmission Solenoid Valve A&B with Filter Gasket Kit Compatible with 1998-Up GM Chevrolet Buick Pontiac Trucks

4l60e Shift Solenoid

The 4L60E shift solenoid is typically made up of a housing, a coil, and a plunger. The housing provides a protective casing for the internal components, while the coil serves as an electromagnet that generates a magnetic field.

The plunger, which is connected to the coil, moves within the housing, controlling the flow of transmission fluid.

Inside the shift solenoid, there are multiple valves and passages that open and close to direct fluid to the appropriate clutch packs and bands within the transmission.

These valves and passages are actuated by the movement of the plunger, which is controlled by electrical signals from the vehicle’s computer system.

Functionality and Role in the Transmission System

The primary function of the 4L60E shift solenoid is to facilitate gear changes within the transmission. When the vehicle’s computer system determines that a shift needs to occur based on factors such as speed and engine load, it sends electrical signals to the shift solenoid, activating it to open or close specific valves and passages.

See Also: P0087 Cummins

By opening the appropriate valves and passages, the shift solenoid directs pressurized transmission fluid to the desired clutch pack or band, engaging or disengaging them as needed.

This action enables the transmission to shift smoothly and efficiently through its various gears, ensuring optimal performance and fuel efficiency.

Significance in Transmission Performance

The 4L60E shift solenoid plays a crucial role in the overall performance of the transmission. A properly functioning shift solenoid allows for seamless gear changes, ensuring smooth acceleration and deceleration.

It also contributes to fuel efficiency by enabling the transmission to operate at the correct gear ratios based on driving conditions.

On the other hand, a malfunctioning or failing shift solenoid can lead to a range of transmission issues. These can include delayed or erratic shifting, harsh or rough gear engagement, slipping gears, or even complete transmission failure.

Therefore, it is essential to monitor the condition of the shift solenoid and address any problems promptly to avoid more significant transmission issues.

Common Symptoms of a Failing Shift Solenoid

Check out this Jackery Portable Power Station Explorer 300, 293Wh Backup Lithium Battery, 110V/300W Pure Sine Wave AC Outlet, Solar Generator (Solar Panel Not Included) for Outdoors Camping Travel Hunting Blackout

4l60e Shift Solenoid

Identifying the symptoms of a failing shift solenoid is crucial for diagnosing transmission problems and addressing them before they escalate.

By being aware of the common signs associated with a faulty shift solenoid, you can take appropriate measures to rectify the issue and prevent further damage to your transmission.

Delayed Engagement

One of the most noticeable symptoms of a failing shift solenoid is delayed engagement when shifting gears. You may experience a significant delay between shifting from park to drive or between gear changes while driving.

See Also: 2016 Buick Enclave Problems

This delay is often accompanied by a hesitation or lack of response from the transmission, making the vehicle feel sluggish or unresponsive.

This delay in engagement can occur due to various reasons, such as a clogged valve or a weakened electrical connection. Regardless of the cause, it is crucial to address this issue promptly to avoid further damage to the transmission.

Erratic or Harsh Shifting

Another common symptom of a failing shift solenoid is erratic or harsh shifting. You may notice that the transmission shifts abruptly, causing a jolt or jerk in the vehicle. This can happen during both upshifts and downshifts, depending on which solenoid is affected.

Erratic shifting can occur due to several reasons, including a worn-out solenoid or a malfunctioning electrical connection. It is essential to diagnose the specific cause of the issue to determine the appropriate course of action.

Slipping Gears

If you find that your vehicle’s engine revs higher than usual without a corresponding increase in speed, it may indicate a slipping gear.

Slipping gears occur when the shift solenoid fails to engage the appropriate clutch pack or band, causing a loss of power transmission between the engine and the wheels.

A slipping gear can be a sign of a failing shift solenoid, particularly if it occurs consistently across multiple gear changes. It is crucial to address this issue promptly to prevent further damage to the transmission and ensure safe driving conditions.

Stuck in Neutral or Limp Mode

In some cases, a failing shift solenoid can cause the transmission to become stuck in neutral or limp mode. Limp mode is a failsafe mechanism employed by the vehicle’s computer system to protect the transmission from further damage.

When the system detects a problem with the shift solenoid, it restricts the transmission to a single gear, usually second or third, allowing the vehicle to be driven at a reduced speed.

If your vehicle is stuck in neutral or limp mode, it is crucial to have it inspected and repaired as soon as possible. Continuing to drive in this state can lead to severe damage to the transmission and may result in a costly repair or replacement.

Troubleshooting Techniques for Shift Solenoid Problems

When faced with shift solenoid issues, it is essential to know how to troubleshoot and resolve them effectively.

By following specific troubleshooting techniques, you can diagnose the problem accurately and take appropriate measures to rectify it. Here are some practical steps to help you troubleshoot shift solenoid problems:

Step 1: Check for Diagnostic Trouble Codes (DTCs)

The first step in troubleshooting shift solenoid problems is to scan the vehicle’s computer system for diagnostic trouble codes (DTCs). These codes can provide valuable information about the specific issue affecting the shift solenoid.

See Also: P0603 Code 7.3 Powerstroke

Using an OBD-II scanner or a diagnostic tool compatible with your vehicle, connect to the vehicle’s computer system and retrieve any stored DTCs. Common codes related to shift solenoid problems include P0751 (Shift Solenoid “A” Performance/Stuck Off) and P0753 (Shift Solenoid “A” Electrical/1-2 Shift Solenoid Circuit Electrical).

Once you have identified the relevant DTCs, you can proceed with further troubleshooting steps based on the specific code(s) retrieved.

Step 2: Inspect Electrical Connections

Electrical issues are a common cause of shift solenoid problems. To address this possibility, it is essential to inspect the electrical connections associated with the shift solenoid. Start by locating the shift solenoid within the transmission, typically near the valve body.

Inspect the wiring harness connected to the shift solenoid for any signs of damage, such as frayed wires or loose connections. Ensure that the connectors are securely attached, and there is no corrosion or debris present. If you notice any issues, repair or replace the affected wiring harness or connectors as necessary.

Step 3: Test the Shift Solenoid Resistance

To determine the health of the shift solenoid, you can perform a resistance test using a multimeter. This test allows you to measure the electrical resistance across the solenoid’s terminals, providing an indication of its condition.

Start by disconnecting the wiring harness from the shift solenoid. Set your multimeter to the resistance (ohms) setting and touch the probes to the solenoid’s terminals.

Compare the resistance reading to the manufacturer’s specifications. If the resistance is significantly higher or lower than the expected range, it may indicate a faulty solenoid that requires replacement.

Step 4: Perform a Transmission Fluid Pressure Test

Low fluid pressure can also contribute to shift solenoid problems. To check the transmission fluid pressure, you will need a transmission pressure gauge and the appropriate adapters for your vehicle.

Follow the manufacturer’s instructions to connect the pressure gauge to the transmission’s pressure test port. Start the engine and allow it to reach normal operating temperature. With the transmission in Park or Neutral, observe the pressure reading on the gauge.

See Also: Tc Brake And Alignment

Refer to the manufacturer’s specifications to determine the expected pressure range for your vehicle. If the pressure reading falls outside the specified range, it may indicate a problem with the pump, valve body, or other components that affect fluid pressure. In such cases, it is advisable to consult a professional mechanic for further diagnosis and repair.

Step 5: Inspect and Clean the Valve Body

The valve body is a critical component within the transmission that houses various valves and passages, including those controlled by the shift solenoid. Over time, these valves and passages can become clogged or obstructed, leading to shift solenoid problems.

To address this issue, you can remove and inspect the valve body for any signs of debris, sludge, or wear. If you notice any buildup or blockages, clean the valve body thoroughly using an appropriate solvent or transmission cleaner.

Be sure to follow the manufacturer’s instructions and exercise caution to prevent damage to the delicate components within the valve body

Step 6: Check for Mechanical Issues

In some cases, shift solenoid problems may be caused by mechanical issues within the transmission. These can include worn-out clutch packs, damaged bands, or a malfunctioning torque converter. It is important to inspect these components for any signs of wear, damage, or improper functioning.

If you are not experienced with transmission repair, it is recommended to consult a professional mechanic or transmission specialist for further diagnosis and repair. They have the expertise and specialized tools necessary to assess and address mechanical issues effectively.

Step 7: Consider Professional Diagnosis and Repair

If you have followed the troubleshooting steps outlined above and are still unable to resolve the shift solenoid problem, it may be time to seek professional assistance. A qualified mechanic or transmission specialist will have the knowledge and experience to diagnose the issue accurately and recommend the appropriate repairs.

Keep in mind that modern transmissions are complex systems, and attempting complex repairs without the necessary expertise can lead to further damage and costly repairs. It is always better to rely on professionals when dealing with intricate transmission components like the shift solenoid.

Replacing the 4L60E Shift Solenoid

If you have determined that the shift solenoid in your 4L60E transmission needs to be replaced, it is essential to follow the proper procedure to ensure a successful installation. Here is a step-by-step guide to help you replace the shift solenoid:

Step 1: Gather the Necessary Tools and Parts

Before beginning the replacement process, gather all the tools and parts you will need. This may include a socket set, wrenches, a torque wrench, a new shift solenoid, and transmission fluid. Refer to your vehicle’s service manual or consult a reputable source to ensure you have the correct tools and parts for your specific vehicle model.

Step 2: Prepare the Vehicle

Ensure the vehicle is parked on a level surface and the transmission is in park or neutral. Engage the parking brake to prevent the vehicle from rolling during the replacement process. It may also be beneficial to disconnect the negative battery cable to prevent any electrical mishaps.

Step 3: Locate and Access the Shift Solenoid

The shift solenoid is typically located on the valve body inside the transmission. Accessing the shift solenoid may require removing certain components, such as the transmission pan, transmission fluid filter, or other parts obstructing access to the valve body.

See Also: Car Wont Accelerate But RPMs Go Up

Refer to your vehicle’s service manual or consult a reputable source for specific instructions on accessing the shift solenoid.

Step 4: Remove the Old Shift Solenoid

Once you have accessed the shift solenoid, carefully disconnect the wiring harness and any other connectors attached to the solenoid. Take note of the existing orientation and position of the solenoid to facilitate the installation of the new one.

Using the appropriate tools, carefully remove the bolts or fasteners securing the shift solenoid to the valve body. Take care not to damage any surrounding components or the valve body itself during this process.

Step 5: Install the New Shift Solenoid

Before installing the new shift solenoid, ensure it is the correct replacement for your vehicle model and matches the specifications of the original solenoid. Apply a small amount of transmission fluid to the O-rings or gaskets on the solenoid to facilitate a proper seal.

Carefully position the new shift solenoid onto the valve body, aligning it with the mounting holes. Insert the bolts or fasteners and tighten them to the manufacturer’s specified torque using a torque wrench.

Step 6: Reconnect Wiring and Components

Reconnect the wiring harness and any other connectors that were detached from the old shift solenoid. Ensure they are securely fastened and properly seated to prevent any electrical or connection issues.

If any components were removed to access the shift solenoid, such as the transmission pan or fluid filter, reinstall them according to the manufacturer’s instructions. Take care to use the correct torque specifications when tightening bolts or fasteners.

Step 7: Refill Transmission Fluid

If any transmission fluid was lost or drained during the replacement process, refill the transmission with the appropriate fluid. Refer to your vehicle’s service manual or consult a reputable source for the correct type and quantity of transmission fluid required.

Step 8: Test and Verify

Once the shift solenoid replacement is complete and all components are reinstalled, start the vehicle and allow it to idle for a few minutes. Shift through the gears to ensure smooth and proper engagement. Check for any leaks or abnormalities in transmission operation.

It is recommended to take the vehicle for a short test drive to further verify the proper functioning of the shift solenoid and ensure that the transmission is shifting correctly. Monitor the vehicle’s performance and address any issues promptly.

Preventative Maintenance for Shift Solenoids

Preventative maintenance is crucial for ensuring the longevity and optimal performance of shift solenoids in the 4L60E transmission. By incorporating these maintenance practices into your routine, you can minimize the risk of shift solenoid problems and extend the lifespan of your transmission.

Regular Fluid and Filter Changes

One of the most important maintenance practices for shift solenoids is regular fluid and filter changes. Over time, transmission fluid can become contaminated with debris, sludge, and wear particles, which can negatively impact the shift solenoid’s operation.

Refer to your vehicle’s service manual or consult a reputable source for the recommended fluid change interval. In general, it is advisable to change the transmission fluid and filter every 30,000 to 60,000 miles, depending on driving conditions and usage. Regular fluid and filter changes help ensure clean and properly lubricated components, including the shift solenoid.

Use the Correct Transmission Fluid

Using the correct type and grade of transmission fluid is essential for maintaining the health of the shift solenoid and the overall transmission system. Different vehicles and transmissions require specific types of fluid to operate optimally.

Refer to your vehicle’s service manual or consult a reputable source to determine the correct transmission fluid for your specific vehicle model. Avoid using incorrect or incompatible fluids, as they can cause detrimental effects on the shift solenoid and other transmission components.

Address Fluid Leaks Promptly

Fluid leaks can lead to a loss of fluid pressure within the transmission, which can affect the operation of the shift solenoid. It is essential to address any fluid leaks promptly to prevent further damage to the transmission.

If you notice any signs of transmission fluid leakage, such as puddles under the vehicle or low fluid levels, have the issue inspected and repaired by a qualified mechanic. Common areas for fluid leaks include the transmission pan gasket, seals, and cooler lines.

Regular Transmission Inspections

Regular inspections of the transmission can help detect early signs of wear or damage to the shift solenoid and other components. Consider having a professional mechanic or transmission specialist perform a comprehensive inspection of the transmission during routine maintenance visits.

During the inspection, they can check for any signs of leakage, excessive wear, or abnormal behavior. They can also inspect the shift solenoid, electrical connections, and other related components for any issues. Addressing potential problems early can prevent costly repairs and extend the lifespan of the shift solenoid.

Follow Manufacturer Recommendations

Lastly, it is crucial to follow the manufacturer’s recommendations for maintenance and service intervals. Each vehicle model and transmission may have specific guidelines for maintenance practices and intervals.

Refer to your vehicle’s service manual or consult a reputable source to determine the recommended maintenance practices for your specific vehicle. By following these recommendations, you can ensure that your shift solenoid and transmission receive the necessary care and attention they require.

Upgrading the Shift Solenoid for Enhanced Performance

If you are looking to enhance the performance of your 4L60E transmission, upgrading the shift solenoid can be a viable option. Aftermarket shift solenoids offer various benefits, including improved shift quality, enhanced durability, and increased torque capacity.

Benefits of Upgrading Shift Solenoids

Upgrading the shift solenoid can provide several advantages over the stock solenoid. Here are some benefits of aftermarket shift solenoids:

  • Improved Shift Quality: Aftermarket solenoids are often designed with enhanced precision and responsiveness, resulting in smoother and more precise gear changes.
  • Enhanced Durability: Some aftermarket solenoids are built with higher-quality materials and improved construction, making them more resistant to wear and heat.
  • Increased Torque Capacity: Upgraded solenoids can handle higher torque loads, allowing for improved performance in high-performance or modified vehicles.
  • Customization Options: Aftermarket solenoids may offer customization options such as adjustable shift points or shift firmness, allowing you to tailor the transmission’s behavior to your preferences.

Considerations for Upgrading Shift Solenoids

Before upgrading your shift solenoid, there are a few considerations to keep in mind:

  • Compatibility: Ensure that the upgraded shift solenoid is compatible with your specific transmission model and vehicle. Check the manufacturer’s specifications and consult with experts or reputable suppliers to confirm compatibility.
  • Performance Goals: Determine your performance goals and expectations before selecting an upgraded shift solenoid. Different solenoids may offer varying levels of performance improvement, so it’s important to choose one that aligns with your desired outcomes.
  • Budget: Set a budget for your upgrade project, considering the costs of the upgraded solenoid, installation, and any additional components or modifications that may be required.
  • Professional Installation: While some shift solenoid upgrades may be relatively straightforward, others may require more intricate modifications or adjustments. It is advisable to seek the assistance of a professional mechanic or transmission specialist for a proper installation.

Research and Consultation

Before making a final decision on an upgraded shift solenoid, conduct thorough research and consult with experts or reputable suppliers. Read reviews, forums, and other reliable sources to gather information about the performance and reliability of the solenoid options you are considering.

Additionally, seeking advice from experienced individuals or professionals who have knowledge in transmission upgrades can provide valuable insights and recommendations. They can help you make an informed decision based on your specific goals and requirements.

Installation and Calibration

Once you have selected the appropriate upgraded shift solenoid, it is crucial to follow the manufacturer’s instructions for installation. Each solenoid may have specific requirements and procedures, so it is important to adhere to these guidelines to ensure proper functioning.

After the installation, calibration of the shift solenoid may be necessary to optimize performance and compatibility with your transmission and vehicle. This may involve adjusting shift points, shift firmness, or other parameters to achieve the desired performance characteristics.

It is recommended to consult with a professional transmission specialist or mechanic who has experience with shift solenoid upgrades. They can provide guidance and assistance in properly installing and calibrating the upgraded solenoid for optimal performance.

Monitoring and Maintenance

After upgrading the shift solenoid, it is important to monitor its performance and address any issues promptly. Regularly inspect the solenoid and related components for any signs of wear, leakage, or abnormal behavior.

Additionally, it is recommended to follow the manufacturer’s maintenance recommendations for the upgraded solenoid. This may include fluid changes, filter replacements, and other maintenance practices specific to the upgraded component.

By properly monitoring and maintaining the upgraded shift solenoid, you can ensure its longevity and continued performance enhancement in your 4L60E transmission.

Common Myths and Misconceptions About Shift Solenoids

Within the automotive community, several myths and misconceptions surround shift solenoids. These misunderstandings can lead to confusion and misinformation. It is important to debunk these myths and provide accurate information to promote a better understanding of shift solenoids. Here are some common myths and misconceptions:

Myth 1: Shift Solenoids Cause All Transmission Problems

One prevalent myth is that shift solenoids are the root cause of all transmission problems. While shift solenoids can contribute to certain issues, they are not the sole cause of every transmission malfunction. Other components, such as the torque converter, clutch packs, or valve body, can also be responsible for transmission problems.

It is essential to conduct a comprehensive diagnosis to identify the specific cause of a transmission problem rather than assuming it is solely due to a shift solenoid issue.

Myth 2: All Shift Solenoids are Interchangeable

Another misconception is that shift solenoids are interchangeable across different transmission models or brands. In reality, shift solenoids are designed to meet specific requirements and specifications for each transmission model.

Using an incompatible shift solenoid can lead to compatibility issues, poor performance, or even damage to the transmission. It is crucial to use the correct shift solenoid that matches your transmission model and meets the manufacturer’s specifications.

Myth 3: Shift Solenoids Never Require Maintenance

Some believe that shift solenoids are maintenance-free components that do not require any attention. However, like other transmission components, shift solenoids can benefit from regular maintenance practices.

Regular fluid changes, filter replacements, and inspections can help prevent potential issues with shift solenoids. By addressing any signs of wear or damage early on, you can extend the lifespan of the solenoid and ensure its proper functioning.

Myth 4: Aftermarket Shift Solenoids are Always Superior

There is a common misconception that aftermarket shift solenoids are always superior to OEM (Original Equipment Manufacturer) solenoids. While aftermarket options can offer performance enhancements and customization features, they may not always be superior in terms of durability or compatibility.

When considering an aftermarket shift solenoid, it is crucial to research and select a reputable brand that is known for quality and reliability. Consult with experts or reputable suppliers to ensure the chosen aftermarket solenoid meets the necessary specifications for your specific vehicle and transmission model.
