P0004 Code: Fuel Volume Regulator Control Circuit High GuideMechanic.Com In the realm of automotive diagnostics, trouble codes serve as vital clues in identifying underlying issues within a vehicle’s complex systems.

Among these, the P0004 code stands out, signaling a problem with the fuel volume regulator control circuit. Understanding this code and its implications is crucial for efficient troubleshooting and maintenance of modern vehicles.

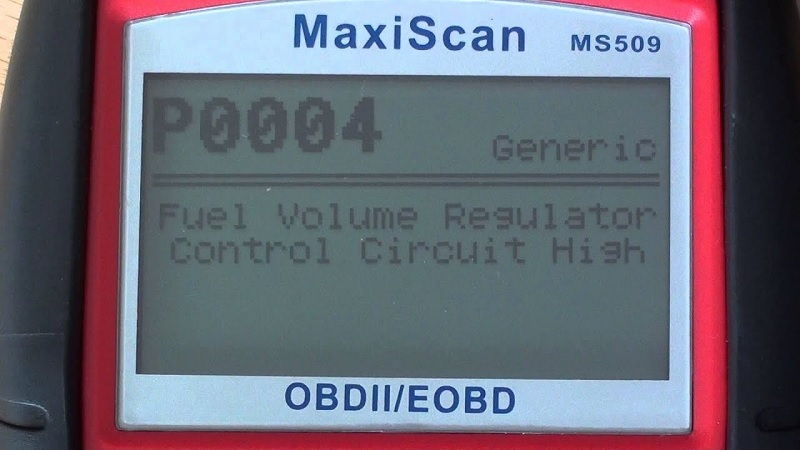

What is the P0004 Code?

P0004 Code

The P0004 trouble code is part of the On-Board Diagnostics II (OBD-II) system, which monitors various components and systems in a vehicle to detect malfunctions.

Specifically, P0004 indicates an issue with the fuel volume regulator control circuit being too high. This circuit is responsible for controlling the volume of fuel that enters the engine, ensuring optimal performance and efficiency.

Causes of Code:

See Also: What Does Code P0173 Mean?

Several factors can trigger the P0004 trouble code, ranging from electrical faults to mechanical issues within the fuel system. Here are some common causes:

Faulty Fuel Volume Regulator:

A malfunctioning fuel volume regulator can disrupt the flow of fuel to the engine, leading to irregularities in fuel volume control.

Wiring or Connector Problems:

Corroded, damaged, or disconnected wiring and connectors can interrupt the flow of electrical signals to the fuel volume regulator, resulting in high circuit resistance.

Issues with the Fuel Pump:

A failing fuel pump can generate excessive resistance in the fuel volume regulator control circuit, triggering the P0004 code.

ECU Malfunction:

A malfunctioning Engine Control Unit (ECU) can misinterpret signals from the fuel volume regulator, leading to erroneous high circuit readings.

Fuel Filter Clogs:

A clogged fuel filter can obstruct the flow of fuel, causing pressure to build up in the system and triggering the P0004 code.

P0004 Code: Fuel Volume Regulator Control Circuit High

Diagnostic Procedure:

Check out this ANCEL AD310 Classic Enhanced Universal OBD II Scanner Car Engine Fault Code Reader CAN Diagnostic Scan Tool-Black

P0004 Code

Diagnosing the root cause of the P0004 trouble code requires a systematic approach and the use of diagnostic tools. Here’s a step-by-step procedure that automotive technicians follow:

Code Reading:

Using an OBD-II scanner, retrieve the trouble codes stored in the vehicle’s ECU, including P0004.

Visual Inspection:

Inspect the fuel volume regulator, wiring, connectors, and fuel pump for any visible signs of damage, corrosion, or wear.

Electrical Testing:

Use a multimeter to measure the voltage and resistance at various points along the fuel volume regulator control circuit. Check for continuity and proper signal transmission.

Pressure Testing:

Use a fuel pressure gauge to measure the pressure in the fuel system and ensure it falls within the manufacturer’s specified range.

Component Testing:

Test the fuel volume regulator, fuel pump, and associated components for proper functionality. Replace any faulty parts as necessary.

Clearing Codes:

After repairs are completed, clear the trouble codes from the ECU’s memory using the OBD-II scanner.

Road Test:

Conduct a road test to verify that the issue has been resolved and that the vehicle operates normally.

P0004 Code: Fuel Volume Regulator Control Circuit High

Repair Options:

Check out this (Upgraded AD310) ANCEL AD530 OBD2 Scanner Diagnostic Tool with Battery Test Car Engine Light Code Reader ScanTool, All OBD2 Function Enhanced Code Definition and Upgraded Graphing Battery Status

P0004 Code

Depending on the underlying cause of the P0004 trouble code, several repair options are available:

Repair or Replace Wiring and Connectors: Address any wiring or connector issues by repairing damaged components or replacing them if necessary.

Replace Fuel Volume Regulator: If the fuel volume regulator is faulty, replace it with a new unit to restore proper fuel flow and control.

Service or Replace Fuel Pump: If the fuel pump is causing the high circuit readings, service it if possible or replace it with a new one.

Clean or Replace Fuel Filter: If the fuel filter is clogged, clean it thoroughly or replace it with a new one to ensure proper fuel flow.

ECU Reprogramming or Replacement: If the ECU is malfunctioning, consider reprogramming it or replacing it with a new one to correct the issue.


The P0004 trouble code indicates a problem with the fuel volume regulator control circuit being too high, requiring prompt attention to avoid potential drivability issues and engine damage.

By following a systematic diagnostic procedure and utilizing appropriate repair techniques, automotive technicians can effectively address the underlying causes of this code and restore the vehicle’s optimal performance and efficiency. Regular maintenance and timely repairs are essential for ensuring the long-term reliability and safety of modern vehicles.
