Understanding the P0006 Code: Fuel Shutoff Valve “A” Control Circuit Low GuideMechanic.Com In the intricate network of components that make up a modern vehicle’s engine system, even a minor fault can lead to significant performance issues.
One such fault is indicated by the P0006 code, specifically related to the fuel shutoff valve “A” control circuit being low. Understanding what this code means, its potential causes, and the necessary steps to resolve it is crucial for maintaining vehicle efficiency and performance.
See Also: P0005 Code: Fuel Shutoff Valve “A” Control Circuit/Open
Decoding the P0006 Code:
The P0006 trouble code is an OBD-II diagnostic code that indicates a fault in the fuel shutoff valve “A” control circuit, which is part of the engine control module’s (ECM) system. This code is specific to vehicles equipped with electronic fuel injection systems.
When this fault occurs, the ECM detects that the control circuit for the fuel shutoff valve “A” is operating at a lower voltage level than expected.
The “A” designation typically signifies the primary fuel shutoff valve or the primary circuit responsible for controlling fuel flow.
This low voltage condition can impede the proper functioning of the fuel shutoff valve, leading to potential engine performance issues and even stalling.
Probable Causes:
Several factors could contribute to triggering the P0006 code, including:
Faulty Fuel Shutoff Valve: The valve itself may be malfunctioning due to wear and tear, electrical issues, or internal damage.
Wiring Issues:
Damage to the wiring harness connected to the fuel shutoff valve or loose connections can disrupt the flow of electrical signals, resulting in a low voltage condition.
Faulty ECM:
In some cases, the engine control module itself may be at fault, either due to internal issues or external factors such as water damage or electrical surges.
Corrosion or Contamination:
Corrosion or contamination at the connector terminals or within the circuitry can interfere with proper electrical conductivity.
Other Electrical Problems:
Issues with related components such as sensors, actuators, or other control modules within the vehicle’s electrical system can indirectly affect the fuel shutoff valve control circuit.

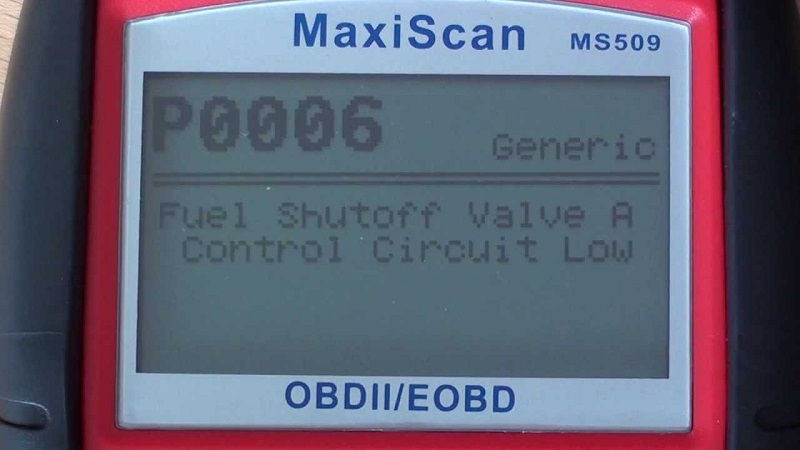

P0006 Code: Fuel Shutoff Valve “A” Control Circuit Low
Symptoms:
When the P0006 code is triggered, drivers may experience a variety of symptoms, including:
Check Engine Light:
The most common indication of a problem is the illumination of the check engine light on the vehicle’s dashboard.
Engine Stalling or Rough Idle:
See Also: P0004 Code: Fuel Volume Regulator Control Circuit High
Issues with the fuel shutoff valve can lead to unstable engine operation, including stalling or rough idling.
Decreased Fuel Efficiency:
A malfunctioning fuel shutoff valve can result in inefficient fuel delivery, leading to decreased fuel efficiency.
Reduced Engine Performance:
The vehicle may exhibit reduced power or acceleration due to fuel flow irregularities.
P0006 Code: Fuel Shutoff Valve “A” Control Circuit Low
Diagnostic Procedure:

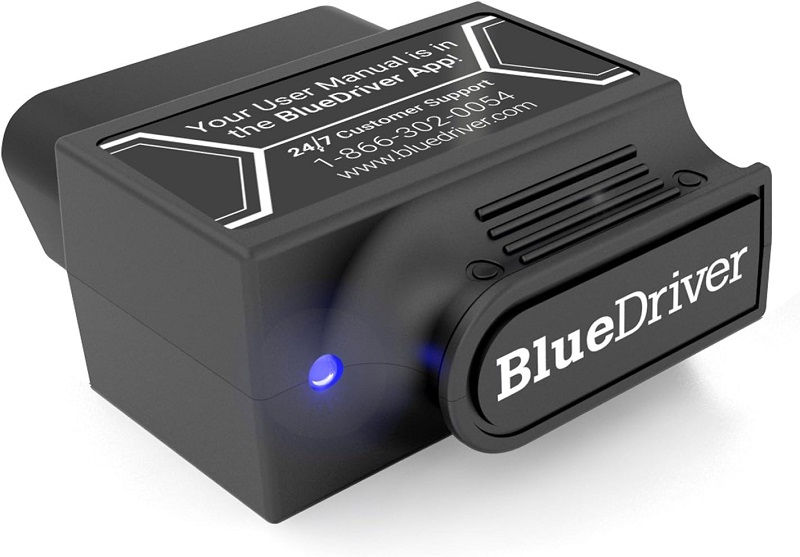

Check out this BlueDriver Bluetooth Pro OBDII Scan Tool for iPhone & Android
Diagnosing the underlying cause of the P0006 code typically involves a systematic approach, including:
Code Scan:
Using an OBD-II scanner to retrieve the trouble code and any accompanying codes can provide valuable diagnostic information.
Visual Inspection:
Inspecting the wiring harness, connectors, and components associated with the fuel shutoff valve for signs of damage, corrosion, or contamination.
Testing the Fuel Shutoff Valve:
Conducting electrical tests to determine if the fuel shutoff valve is functioning correctly and receiving the proper voltage signals.
Checking ECM Functionality:
Testing the engine control module for any internal faults or communication issues with other vehicle systems.
Repair or Replacement:
Based on the diagnostic findings, repairing or replacing faulty components, such as the fuel shutoff valve, wiring harness, or ECM, as necessary.
P0006 Code: Fuel Shutoff Valve “A” Control Circuit Low
Resolving the Issue:
Once the root cause of the P0006 code has been identified, appropriate steps can be taken to resolve the issue effectively:
Repairing Wiring or Connectors:
Repairing damaged wiring or connectors and ensuring proper electrical connections can restore functionality to the fuel shutoff valve control circuit.
Replacing Faulty Components:
If the fuel shutoff valve or ECM is determined to be faulty, replacement with a new or refurbished unit may be necessary.
Clearing Codes:
After repairs are completed, clearing the trouble codes using an OBD-II scanner allows the ECM to reevaluate the system and monitor for any recurring issues.
Performing System Checks:
Conducting a thorough system check and test drive to verify that the issue has been resolved and that the vehicle is operating properly.
Conclusion:
The P0006 code indicating a low voltage condition in the fuel shutoff valve “A” control circuit is a critical issue that requires prompt attention to prevent potential engine performance problems.
By understanding the possible causes, symptoms, and diagnostic procedures associated with this code, vehicle owners and technicians can effectively address the issue and restore optimal engine operation.
Regular maintenance and timely repairs play a crucial role in ensuring the longevity and reliability of modern vehicle systems.
