P0017 Code Crankshaft Position – Camshaft Position Correlation (Bank 1 Sensor B)

Posted on

This post contains affiliate links. This means I will make a commission at no extra cost to you should you click through and make a purchase [ “As an Amazon Associate, I earn from qualifying purchases.” ]. Read the full disclosure here.

Deciphering the P0017 Code: Crankshaft Position – Camshaft Position Correlation (Bank 1 Sensor B) GuideMechanic.Com In the intricate world of automotive diagnostics, few things are as unsettling as the illumination of the dreaded check engine light.

Among the myriad of fault codes that can trigger this warning is the P0017 code, signaling a potential issue with the correlation between the crankshaft position and the camshaft position in Bank 1 Sensor B of the engine.

Unraveling the mystery behind this code, understanding its implications, and navigating the process of diagnosis and repair is crucial for maintaining the health and performance of the vehicle.

See Also: P0015 Code “B” Camshaft Position -Timing Over-Retarded (Bank 1)

Understanding the P0017 Code:

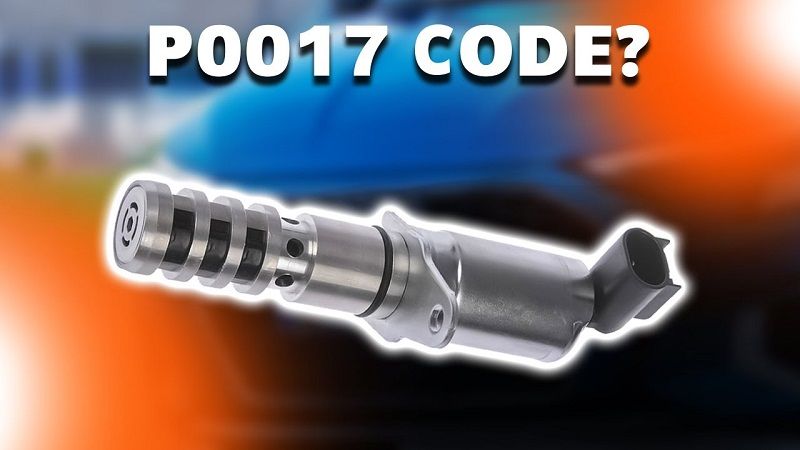

P0017 Code

The P0017 code specifically points to a discrepancy between the timing of the crankshaft and camshaft in Bank 1 Sensor B of the engine.

In modern vehicles equipped with advanced engine management systems, precise synchronization between these components is essential for optimal performance, fuel efficiency, and emission control.

When the Engine Control Module (ECM) detects a deviation beyond acceptable limits in the timing correlation between the crankshaft and camshaft, it triggers the P0017 code and prompts the illumination of the check engine light on the dashboard.

Potential Causes of the Code:

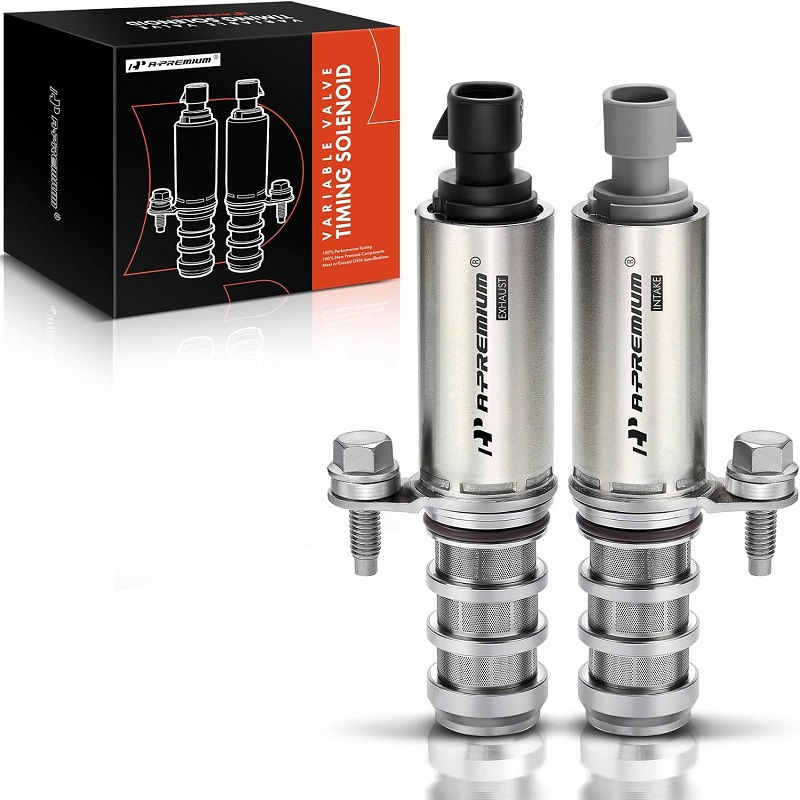

Check out this A-Premium VVT Intake & Exhaust Camshaft Position Actuator Solenoid Valve Kit Compatible with Chevy GMC Equinox Malibu Cobalt HHR Terrain Buick Pontiac Saturn 2.0L 2.2L 2.4L Replaces# 12655421 12655420

P0017 Code

Faulty Camshaft or Crankshaft Position Sensor:

A malfunctioning sensor can provide inaccurate data to the ECM, resulting in timing discrepancies and the triggering of the P0017 code.

Timing Chain/Belt Issues:

Worn or stretched timing chains or belts can introduce slack, disrupting the timing relationship between the crankshaft and camshaft.

VVT Solenoid Malfunction:

The Variable Valve Timing (VVT) solenoid regulates oil flow to adjust camshaft timing. If it fails or becomes clogged with debris, timing issues may arise, leading to the P0017 code.

Engine Oil Problems:

Insufficient oil pressure or contaminated engine oil can impede the operation of VVT components, affecting timing synchronization and triggering the fault code.

Mechanical Engine Faults:

Damage to components such as the timing chain guides, tensioners, or gears can interfere with the timing correlation between the crankshaft and camshaft, resulting in the appearance of the P0017 code.

ECM Malfunction:

Although rare, a malfunctioning ECM may misinterpret sensor data, leading to incorrect timing adjustments and the triggering of fault codes such as P0017.

P0017 Code Crankshaft Position – Camshaft Position Correlation (Bank 1 Sensor B)

Diagnosis and Repair:

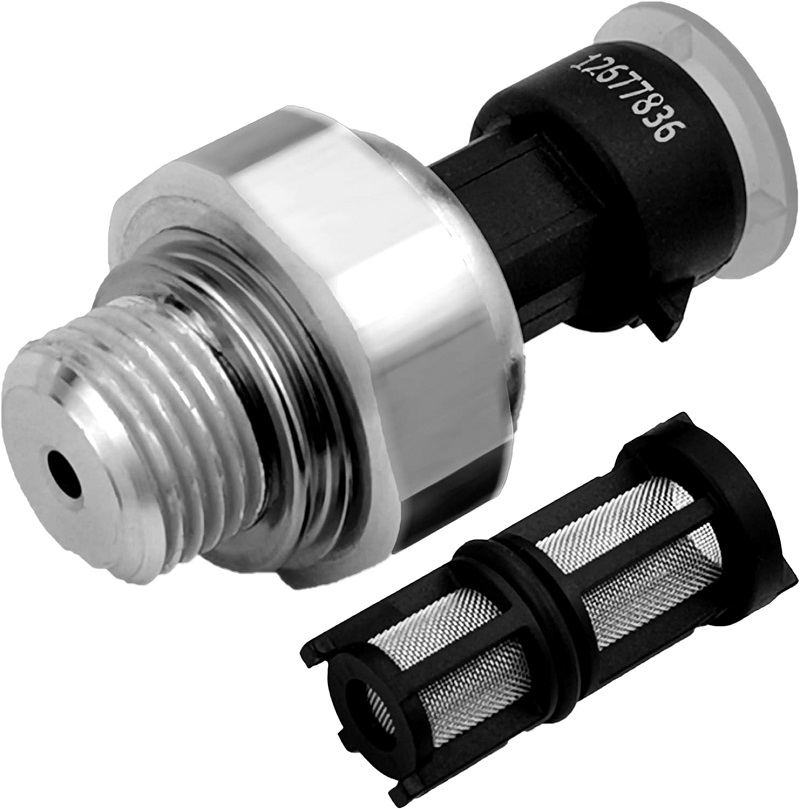

Check out this 12677836 Oil Pressure Sensor for 2003-2008 Chevy Chevrolet Silverado 1500 2500 3500,Express,Corvette,Suburban,Avalanche,Impala,Tahoe,Trailblazer& GMC Sierra,Savana,Yukon,Envoy&Cadillac,CTS,Escalade

P0017 Code

Diagnosing the root cause of a P0017 code requires a systematic approach by a qualified automotive technician:

Code Retrieval:

Utilizing a diagnostic scan tool, retrieve the trouble codes stored in the ECM, paying particular attention to any accompanying codes that may provide additional insight into the issue.

Visual Inspection:

Conduct a visual inspection of engine components, focusing on the timing chain/belt, sensors, and VVT solenoid for signs of wear, damage, or oil leaks.

Sensor Testing:

Test the camshaft and crankshaft position sensors using a multimeter to ensure they are operating within specified parameters.

Oil Pressure Check:

Verify adequate engine oil pressure using a mechanical gauge, addressing any issues with oil level or viscosity that may affect VVT operation.

Timing Components Inspection:

If necessary, remove components such as the timing cover to inspect the timing chain, tensioners, and guides for wear or damage that could affect timing synchronization.

VVT System Testing:

Test the VVT solenoid for proper operation and check for obstructions in the oil passages that could impede its function.

ECM Scan:

Perform a comprehensive scan of the ECM for any potential software-related issues or updates that may resolve the problem.

P0017 Code Crankshaft Position – Camshaft Position Correlation (Bank 1 Sensor B)

Once the underlying cause has been identified, repairs can be initiated:

Sensor Replacement:

Replace any faulty camshaft or crankshaft position sensors, ensuring proper installation and calibration.

Timing Chain/Belt Replacement:

If timing components are worn or damaged, replace them following manufacturer specifications to restore proper timing synchronization.

VVT Solenoid Replacement:

Replace the VVT solenoid if it is found to be faulty, ensuring unimpeded oil flow and optimal timing adjustment.

Oil Change and Maintenance:

Perform an oil change using the manufacturer’s recommended oil grade and viscosity, addressing any oil-related issues that could affect VVT operation.

ECM Replacement/Reprogramming:

If necessary, replace or reprogram the ECM to rectify any software-related issues that may be contributing to the fault code.


See Also: P0016 Code: Camshaft Position Correlation (Bank 1 Sensor A)

The appearance of a P0017 code indicating a crankshaft position – camshaft position correlation issue necessitates prompt attention to prevent potential engine damage and performance degradation.

Understanding the underlying causes and following a systematic diagnostic approach is crucial for accurate diagnosis and effective repairs.

By addressing the root cause of the problem, vehicle owners can ensure the continued reliability and performance of their vehicle on the road.

Regular maintenance, including oil changes and inspections, can also help prevent such issues from arising in the future, ultimately extending the lifespan of engine and drivetrain components.
