P0030 HO2S Heater Control Circuit (Bank 1 Sensor 1): Understanding, Diagnosing, and Fixing GuideMechanic.Com In the realm of automotive diagnostics, the P0030 trouble code stands out as a common issue that can plague vehicles equipped with an oxygen sensor heater circuit.

Specifically, this code relates to the HO2S (Heated Oxygen Sensor) Heater Control Circuit malfunction on Bank 1, Sensor 1. While it may sound complex, understanding this code and addressing it properly can prevent potential issues with your vehicle’s performance and emissions. In this article, we’ll delve into what the P0030 code signifies, how to diagnose it, and the steps you can take to resolve it.

See Also: P002E “B” Camshaft Profile Control Circuit Low Bank 2

P0030 HO2S Heater Control Circuit (Bank 1 Sensor 1)

Understanding the P0030 Code:

P0030 HO2S Heater Control Circuit (Bank 1 Sensor 1)

Firstly, let’s break down the code itself. “P” indicates it’s a powertrain code, which means it relates to components such as the engine, transmission, and emissions systems. “0030” is the specific trouble code, and it pertains to the HO2S Heater Control Circuit.

The HO2S, commonly referred to as an oxygen sensor, measures the oxygen content in the exhaust gases, providing crucial feedback to the engine control module (ECM) for proper air-fuel ratio control.

The heater element in the sensor ensures it reaches operating temperature quickly, enhancing its efficiency during cold starts and minimizing emissions.

Bank 1 Sensor 1:

The term “Bank 1” refers to the side of the engine where the number 1 cylinder is located. In inline engines, there’s typically only one bank.

However, in V-configured engines, there are usually two banks: Bank 1 contains the cylinder with the number 1 piston. “Sensor 1” indicates it’s the first oxygen sensor in the exhaust system, located before the catalytic converter. This sensor’s data is crucial for the ECM’s fuel management strategy.

P0030 HO2S Heater Control Circuit (Bank 1 Sensor 1)

Causes of P0030 Code:

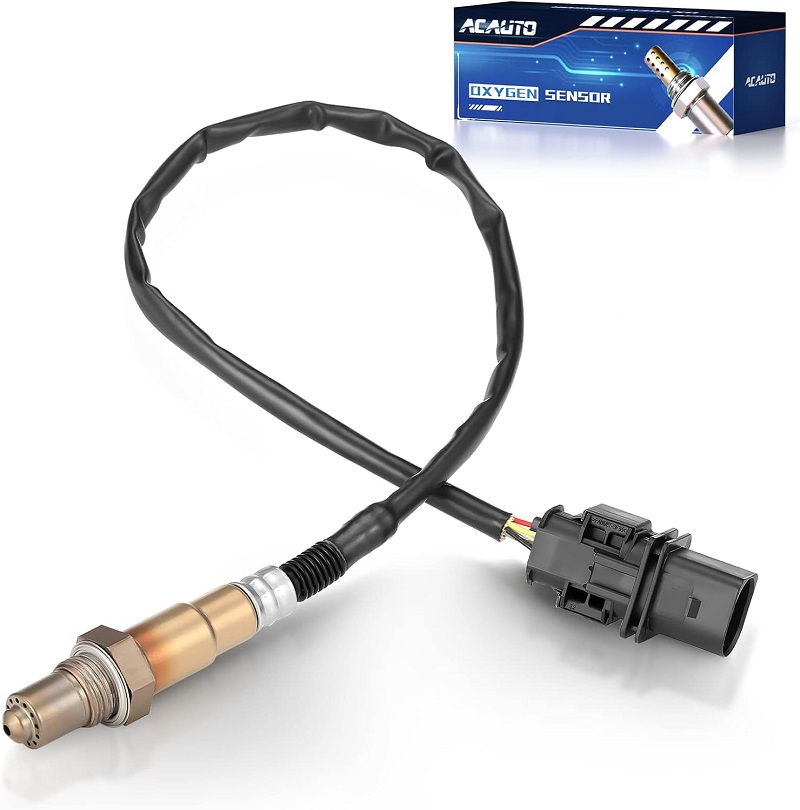

Check out this 234-5107 Oxygen Sensor Upstream O2 Sensor Compatible with Ford F150 Transit 150 250 Expedition Fiesta Audi A3 TT Volkswagen Jetta CC Pasat GTI Porsche Lincoln 0258017025 17025 12575657 213-1572

P0030 HO2S Heater Control Circuit (Bank 1 Sensor 1)

Several factors can trigger the P0030 trouble code, including:

Faulty Oxygen Sensor Heater:

The most common cause is a malfunctioning oxygen sensor heater. This can occur due to internal heater element failure or damage.

Wiring Issues:

Broken wires, shorts, or corroded connections in the oxygen sensor heater circuit can disrupt the heater’s operation, triggering the P0030 code.

Blown Fuse:

A blown fuse in the oxygen sensor heater circuit can prevent power from reaching the sensor’s heater, leading to the code.

ECM Failure:

While less common, a malfunctioning engine control module (ECM) may fail to provide proper voltage to the oxygen sensor heater, resulting in the P0030 code.

P0030 HO2S Heater Control Circuit (Bank 1 Sensor 1)

Diagnosing P0030:

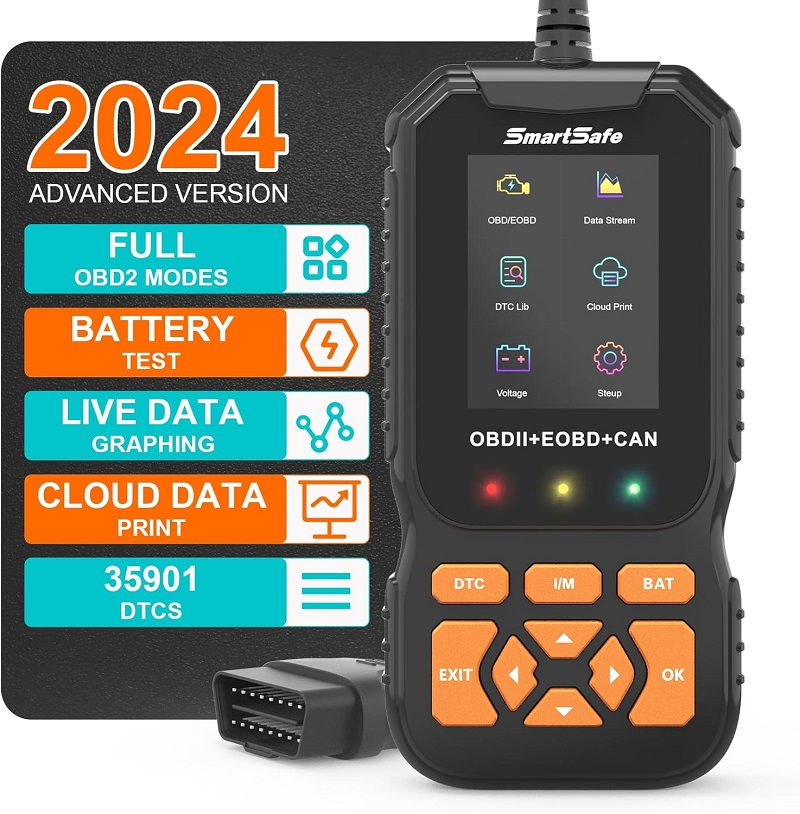

Check out this 2024 Professional OBD2 Scanner Diagnostic Tool Enhanced Auto Check Engine with Read/Erase Fault Code, 35,901 DTCs, Cloud Data Print, Code Reader Scanner for Cars After 1996

P0030 HO2S Heater Control Circuit (Bank 1 Sensor 1)

Diagnosing the P0030 code typically involves several steps to pinpoint the exact cause:

Code Scan:

Begin by using an OBD-II scanner to retrieve the trouble code and any accompanying freeze frame data. This information can provide insight into when the fault occurred and under what conditions.

Visual Inspection:

Visually inspect the oxygen sensor wiring harness and connector for any signs of damage, corrosion, or loose connections. Ensure there are no exhaust leaks near the sensor.

Check Heater Resistance:

Using a multimeter, measure the resistance of the oxygen sensor heater. Compare the reading to the manufacturer’s specifications. A significantly high or low resistance indicates a faulty heater element.

Inspect Fuse:

Locate and inspect the fuse related to the oxygen sensor heater circuit. Replace any blown fuses and retest the system.

Test Heater Voltage:

With the engine running and at operating temperature, use a voltmeter to check for voltage at the oxygen sensor heater connector. Lack of voltage indicates a wiring or ECM issue.

Scan Tool Data Analysis:

Utilize a scan tool to monitor live data while the engine is running. Pay attention to oxygen sensor data, particularly the Bank 1 Sensor 1 heater operation.

P0030 HO2S Heater Control Circuit (Bank 1 Sensor 1)

Fixing P0030:

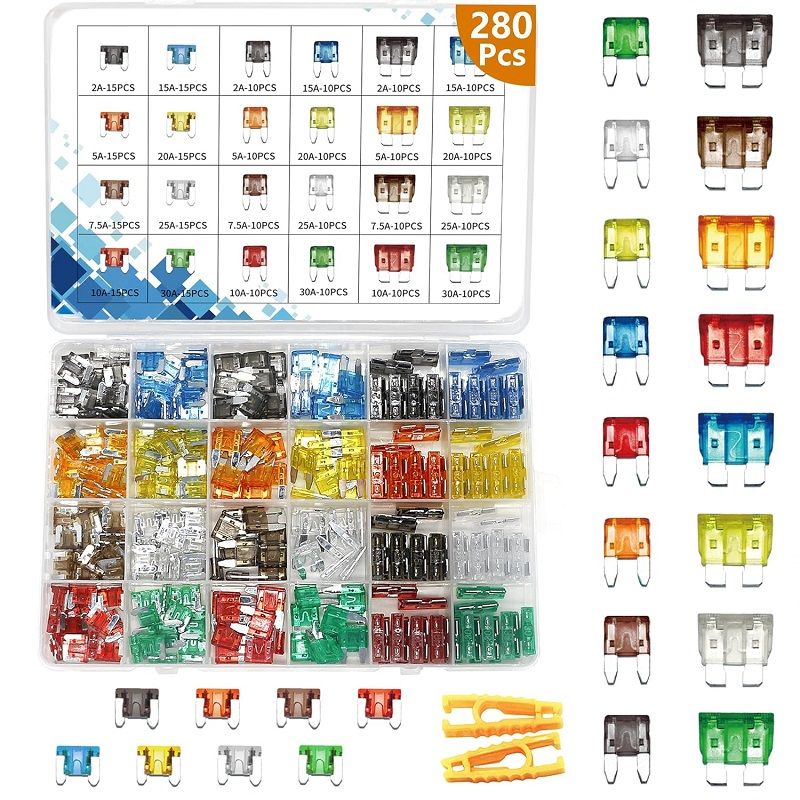

Check out this 282Pcs-Car Fuses Assortment Kit,Blade-Type Automotive Fuses,Automotive Fuses-Standard&Mini&Low Profile Mini(2A/5A/7.5A/10A/15A/20A/25A/30A),Replacement Fuses for Car/RV/Truck/Motorcycle

Once you’ve identified the cause of the P0030 code, you can proceed with the necessary repairs:

Replace Oxygen Sensor:

If the oxygen sensor heater is faulty, replace the sensor with a new, high-quality unit. Ensure it meets or exceeds OEM specifications.

Repair Wiring:

Repair any damaged or corroded wires in the oxygen sensor heater circuit. Properly solder and insulate connections to prevent future issues.

Replace Fuse:

If a blown fuse is the culprit, replace it with a fuse of the same rating. Inspect the circuit for any underlying issues that may have caused the fuse to blow.

ECM Replacement:

In rare cases of ECM failure, replace the engine control module with a new or remanufactured unit. Ensure the replacement ECM is correctly programmed for your vehicle.

Clear Codes:

After completing repairs, use the OBD-II scanner to clear the trouble codes and reset the ECM. Perform a test drive to ensure the P0030 code does not return.


The P0030 trouble code relating to the HO2S Heater Control Circuit on Bank 1 Sensor 1 is a common issue encountered by vehicle owners.

Understanding its causes, diagnosing the problem accurately, and implementing the necessary repairs are essential steps to ensure optimal engine performance and emissions compliance.

By following the diagnostic and repair procedures outlined in this article, you can effectively address the P0030 code and maintain your vehicle’s reliability and efficiency.

If you’re uncertain about performing these repairs yourself, don’t hesitate to seek assistance from a qualified automotive technician.

See Also: P002F “B” Camshaft Profile Control Circuit High Bank 2
