Decoding P003D: Understanding “A” Camshaft Profile Control Stuck On Bank 1 GuideMechanic.Com In the realm of automotive diagnostics, the cryptic codes emitted by onboard computers can leave even seasoned mechanics scratching their heads.

One such code, P003D, indicating “A” Camshaft Profile Control Stuck On Bank 1, is a perplexing challenge for both professionals and car owners alike. However, delving into its intricacies can demystify its meaning and shed light on the underlying issues.

See Also: P003B Turbocharger/Supercharger Boost Control “B” Position Exceeded Learning Limit

P003D “A” Camshaft Profile Control Stuck On Bank 1

Understanding the Basics

P003D A Camshaft Profile Control Stuck On Bank 1

Before dissecting P003D, it’s crucial to grasp some fundamental concepts. Modern vehicles are equipped with complex systems to optimize performance, fuel efficiency, and emissions control.

Among these systems is Variable Valve Timing (VVT), a technology that adjusts the timing of valve opening and closing events, enhancing engine efficiency across different operating conditions.

Camshaft profile control, a subset of VVT, regulates the lift and duration of valve opening by altering the camshaft’s profile. This adjustment optimizes engine performance at various RPM ranges, balancing power output and fuel consumption.

P003D “A” Camshaft Profile Control Stuck On Bank 1

Deciphering P003D

Now, let’s decipher P003D. The “P” prefix signifies that the code originates from the powertrain control module (PCM), indicating a potential issue within the engine or transmission. The succeeding digits and letters provide specific details about the problem.

P: Powertrain code

003D: Specific trouble code

“A” Camshaft Profile Control refers to the intake camshaft on Bank 1 of the engine. In inline engines, Bank 1 typically refers to the side of the engine where the cylinder number 1 resides. For V6 or V8 engines, Bank 1 usually includes the cylinders on the left side of the engine as viewed from the driver’s seat.

The term “stuck” suggests that the camshaft profile control mechanism is unable to adjust or maintain its desired position. This malfunction can disrupt the engine’s operation, leading to performance issues and potential damage if left unresolved.

P003D “A” Camshaft Profile Control Stuck On Bank 1

Common Causes

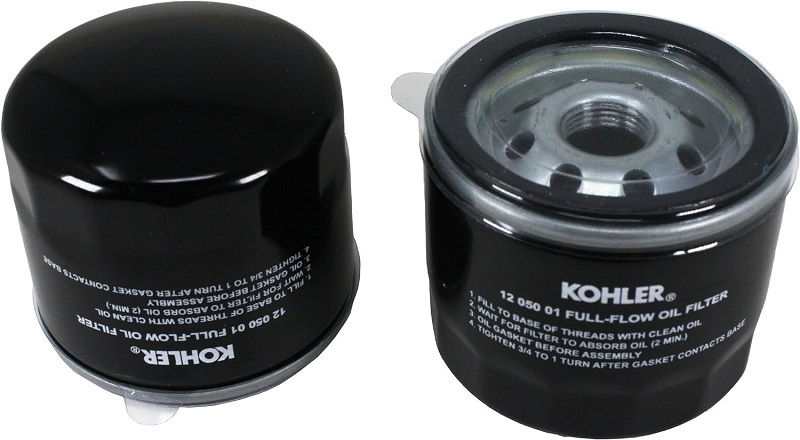

Check out this Set of 2 KOHLER 12 050 01-S Engine Oil Filter

P003D A Camshaft Profile Control Stuck On Bank 1

Several factors can trigger P003D, ranging from mechanical failures to electrical glitches. Understanding these root causes is pivotal in formulating an effective diagnostic and repair strategy:

Mechanical Obstruction:

Accumulated sludge, debris, or mechanical failures within the VVT system can impede the movement of components, causing the camshaft profile control to become stuck.

Faulty Solenoid or Actuator:

VVT systems rely on solenoids or actuators to adjust camshaft timing. A malfunctioning solenoid or actuator can prevent proper operation, leading to a stuck camshaft profile.

Oil Flow Issues:

Adequate oil pressure and flow are essential for VVT systems to function optimally. Any restriction or contamination in the oil passages can hinder the movement of VVT components, resulting in malfunctions.

Electrical Faults:

Wiring harness issues, connector corrosion, or PCM malfunctions can disrupt communication between the control module and VVT components, leading to erroneous commands or failure to actuate.

P003D “A” Camshaft Profile Control Stuck On Bank 1

Diagnostic Procedure

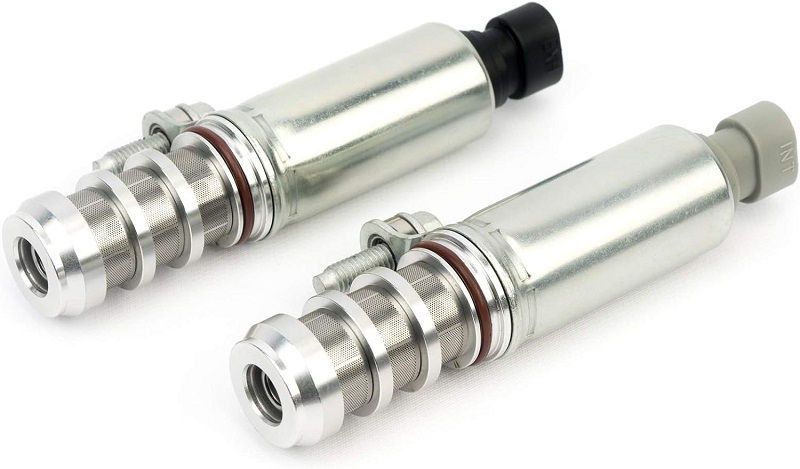

Check out this Intake and Exhaust Camshaft Position Actuator Solenoid Valve Kit, Replaces 12655420, 12655421, Compatible with Chevy, GMC 2.0, 2.2, 2.4L – HHR, Cobalt,Equinox, Malibu, G6 and other GM Vehicles

P003D A Camshaft Profile Control Stuck On Bank 1

Effectively diagnosing and rectifying P003D necessitates a systematic approach and the utilization of diagnostic tools. Here’s a general outline of the diagnostic procedure:

Code Retrieval:

Begin by retrieving the trouble code using an OBD-II scanner. Note down any accompanying codes or freeze frame data, providing valuable context for the diagnosis.

Visual Inspection:

Conduct a visual inspection of the VVT system, checking for signs of damage, leaks, or obstructions. Pay close attention to wiring, connectors, and components associated with camshaft profile control.

Functional Tests:

Perform functional tests on the VVT solenoid or actuator, verifying their ability to respond to commands from the PCM. Monitor camshaft position sensor readings and compare them to desired values.

Oil Pressure Inspection:

Evaluate oil pressure at various engine speeds, ensuring it meets manufacturer specifications. Inspect oil passages for blockages or contamination, addressing any issues encountered.

Component Replacement:

Based on diagnostic findings, replace defective components such as solenoids, actuators, or sensors. Ensure proper installation and calibration according to manufacturer guidelines.

Clearing Codes:

After repairs are completed, clear the trouble codes and conduct a road test to verify proper operation. Monitor live data to confirm that the issue has been resolved satisfactorily.


In conclusion, P003D, denoting “A” Camshaft Profile Control Stuck On Bank 1, presents a diagnostic challenge for automotive technicians.

Understanding the intricacies of VVT systems and following a methodical diagnostic approach are paramount in addressing this issue effectively.

By identifying and rectifying underlying mechanical or electrical faults, vehicle owners can restore optimal engine performance and reliability.

As automotive technology continues to evolve, staying abreast of diagnostic techniques and embracing innovation is crucial in maintaining and servicing modern vehicles.
