Unveiling P0051: Deciphering HO2S Heater Control Circuit Low (Bank 2 Sensor 1) GuideMechanic.Com In the intricate realm of automotive diagnostics, encountering cryptic error codes is a common occurrence. Among these codes, P0051 stands out as a particularly challenging puzzle to solve.
Designated as HO2S Heater Control Circuit Low (Bank 2 Sensor 1), P0051 indicates an issue with the heating element within the oxygen sensor located in Bank 2 of the engine.
To unravel the complexities of P0051, one must delve into the inner workings of oxygen sensors and their heating circuits, coupled with a systematic approach to diagnosing and resolving the underlying issues.
See Also: P004F Turbocharger/Supercharger Boost Control “B” Circuit Intermittent/Erratic
P0051 HO2S Heater Control Circuit Low (Bank 2 Sensor 1)
Understanding Oxygen Sensors and Heater Circuits

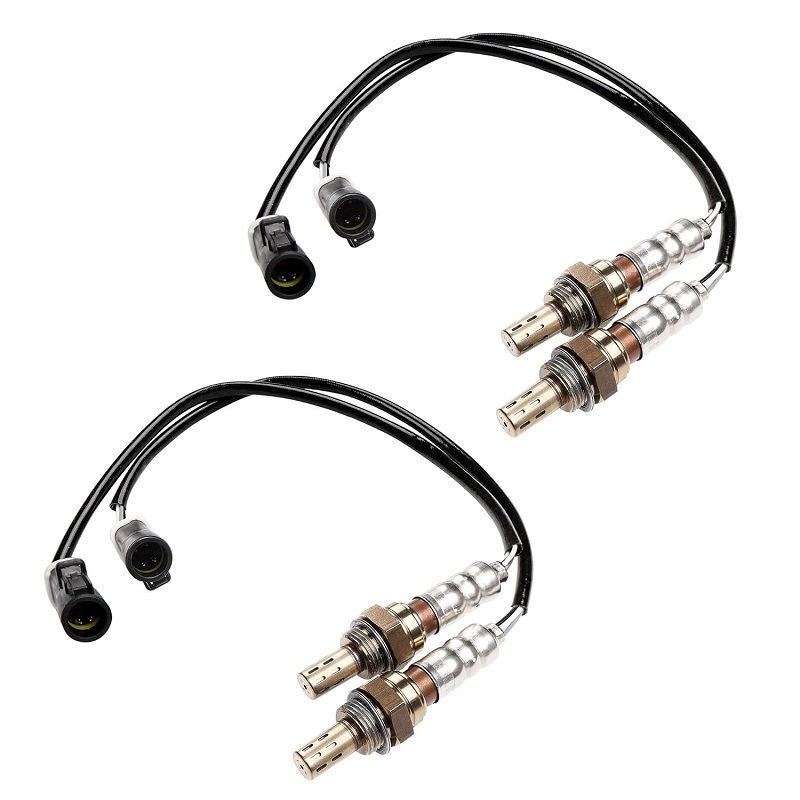

Before diving into the intricacies of P0051, it’s essential to comprehend the pivotal role of oxygen sensors in modern vehicles.
Oxygen sensors, also known as O2 sensors, play a critical role in monitoring the oxygen content in the exhaust gases emitted by the engine. This information is crucial for maintaining the optimal air-fuel ratio required for efficient combustion.
Oxygen sensors typically consist of a ceramic element coated with a layer of platinum and zirconium oxide. This element generates a voltage signal based on the difference in oxygen concentration between the exhaust gas and the ambient air.
However, for accurate operation, oxygen sensors require a specific operating temperature range, which is facilitated by an integrated heating element.
Deciphering P0051: What Does It Signify?
P0051 specifically pertains to a low voltage condition within the heating circuit of the oxygen sensor located in Bank 2, Sensor 1. Bank 2 refers to the side of the engine where the second cylinder bank is located, while Sensor 1 denotes the sensor positioned upstream of the catalytic converter.
The “Heater Control Circuit Low” aspect of the code indicates that the issue lies with the electrical circuit responsible for heating the oxygen sensor to its operating temperature.
P0051 HO2S Heater Control Circuit Low (Bank 2 Sensor 1)
Common Causes of P0051
Diagnosing and resolving P0051 requires a systematic approach to identify potential culprits within the HO2S heater control circuit. Some common causes include:
Faulty Oxygen Sensor:
The heating element within the oxygen sensor may degrade over time or fail altogether, resulting in a low voltage condition and triggering the P0051 code.
Wiring Issues:
Frayed, corroded, or damaged wiring within the heater circuit can impede the flow of electrical current to the oxygen sensor, resulting in a low voltage condition and triggering the P0051 code.
Faulty Relay or Fuse:
A malfunctioning relay or fuse in the oxygen sensor heater circuit can prevent the heating element from receiving sufficient power, resulting in a low voltage condition and triggering the P0051 code.
Poor Electrical Connections:
Loose or corroded electrical connectors can introduce resistance into the circuit, hindering the flow of electricity to the oxygen sensor and resulting in a low voltage condition and triggering the P0051 code.
ECM Issues:
In rare cases, a malfunction within the engine control module (ECM) can prevent it from properly controlling the oxygen sensor heater circuit, resulting in a low voltage condition and triggering the P0051 code.
P0051 HO2S Heater Control Circuit Low (Bank 2 Sensor 1)
Diagnosing and Resolving P0051
Effectively diagnosing and resolving P0051 requires a methodical approach and a thorough understanding of automotive diagnostics. Here’s a step-by-step guide to tackling this elusive DTC:
Visual Inspection:
Begin by visually inspecting the oxygen sensor and its associated wiring for any signs of damage, corrosion, or wear. Pay close attention to the wiring harness and connectors, as well as the sensor itself.
Check Heater Resistance:

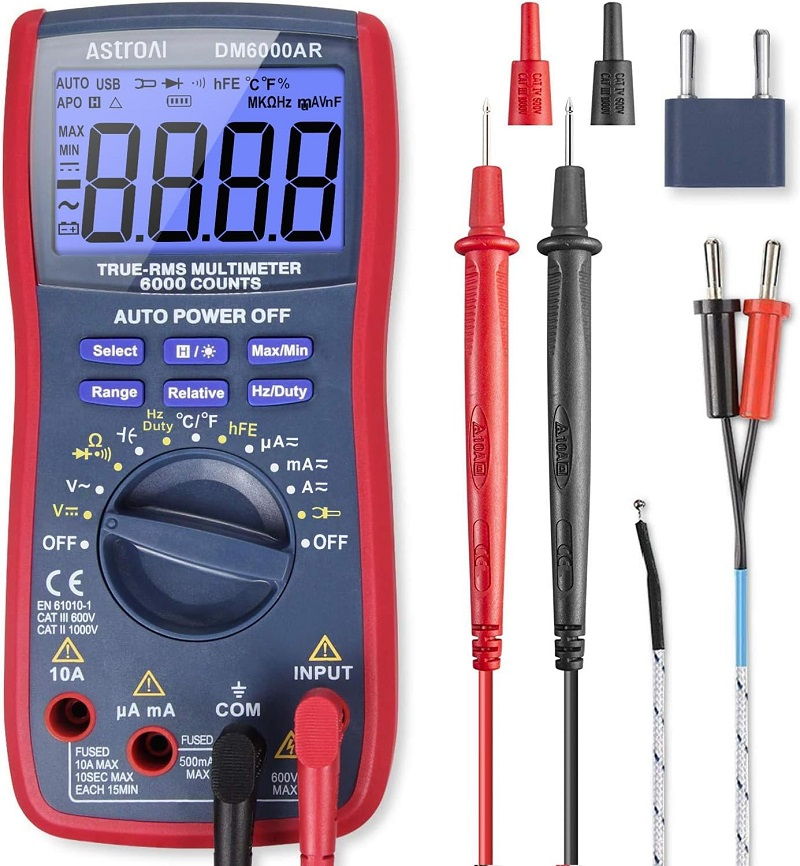

Use a multimeter to measure the resistance across the oxygen sensor heater circuit. Compare the measured resistance to the specifications provided by the vehicle manufacturer to determine if the heater element is functioning correctly.
Test Heater Circuit Voltage:
With the engine running, use a multimeter to check for voltage at the oxygen sensor heater circuit. Ensure that the heater is receiving sufficient voltage from the ECM or relay.
Inspect Relays and Fuses:
Check the relays and fuses associated with the oxygen sensor heater circuit to ensure they are functioning correctly. Replace any faulty relays or fuses as needed.
Verify ECM Functionality:
Consider the possibility of an ECM malfunction contributing to the P0051 code. Conduct a diagnostic evaluation of the ECM to rule out any underlying issues affecting its operation.
Clear Codes and Test Drive:
Once the root cause of the P0051 code has been identified and addressed, clear the DTC from the ECM’s memory using a diagnostic scan tool. Test drive the vehicle to ensure that the issue has been successfully resolved and that no further codes are present.
Conclusion
See Also: P0050 HO2S Heater Control Circuit (Bank 2 Sensor 1)
Navigating the complexities of P0051 HO2S Heater Control Circuit Low (Bank 2 Sensor 1) requires a blend of expertise, patience, and meticulous attention to detail.
By understanding the underlying principles of oxygen sensors and heater circuits and systematically diagnosing potential causes, mechanics can effectively address the issues triggering this elusive DTC.
Whether it’s a faulty oxygen sensor, wiring issues, or ECM malfunctions, resolving P0051 demands a comprehensive understanding of the vehicle’s systems and a commitment to thorough troubleshooting.
With the right tools, knowledge, and expertise, conquering this diagnostic challenge becomes an achievable endeavor, restoring both performance and reliability to vehicles worldwide.
