Demystifying P0052 Code: Understanding HO2S Heater Control Circuit High (Bank 2 Sensor 1) GuideMechanic.Com In the intricate landscape of automotive diagnostics, deciphering cryptic error codes serves as a fundamental aspect of troubleshooting.

Among the myriad of diagnostic trouble codes (DTCs) encountered by mechanics and car owners, P0052 presents a particularly intriguing challenge.

Designated as HO2S Heater Control Circuit High (Bank 2 Sensor 1), P0052 signifies an issue with the heating element within the oxygen sensor located in Bank 2 of the engine.

To unravel the complexities of P0052, one must delve into the inner workings of oxygen sensors and their heating circuits, coupled with a methodical approach to diagnosing and resolving the underlying issues.

See Also: P0060 Code HO2S Heater Resistance (Bank 2 Sensor 2)

P0052 HO2S Heater Control Circuit High (Bank 2 Sensor 1)

Understanding Oxygen Sensors and Heater Circuits

P0052 Code

Before delving into the intricacies of P0052, it’s crucial to comprehend the pivotal role of oxygen sensors in modern vehicles.

Oxygen sensors, also known as O2 sensors, play a critical role in monitoring the oxygen content in the exhaust gases emitted by the engine. This information is vital for maintaining the optimal air-fuel ratio required for efficient combustion.

Oxygen sensors typically consist of a ceramic element coated with a layer of platinum and zirconium oxide. This element generates a voltage signal based on the difference in oxygen concentration between the exhaust gas and the ambient air.

However, for accurate operation, oxygen sensors require a specific operating temperature range, which is facilitated by an integrated heating element.

Deciphering P0052: What Does It Signify?

P0052 specifically pertains to a high voltage condition within the heating circuit of the oxygen sensor located in Bank 2, Sensor 1.

Bank 2 refers to the side of the engine where the second cylinder bank is located, while Sensor 1 denotes the sensor positioned upstream of the catalytic converter.

The “Heater Control Circuit High” aspect of the code indicates that the issue lies with the electrical circuit responsible for heating the oxygen sensor to its operating temperature.

P0052 HO2S Heater Control Circuit High (Bank 2 Sensor 1)

Common Causes of P0052

Check out this RANSOTO O2 Oxygen Sensor 15717 Downstream Upstream Compatible with 1990-2014 Ford F150 F250 F350 Ranger Escape Explorer Lincoln Mazda Mercury Replaces 15716 15718 Set of 4

P0052 Code

Diagnosing and resolving P0052 requires a systematic approach to identify potential culprits within the HO2S heater control circuit. Some common causes include:

Faulty Oxygen Sensor:

The heating element within the oxygen sensor may experience a malfunction, causing it to draw excessive current and resulting in a high voltage condition, triggering the P0052 code.

Shorted Wiring:

Short circuits within the heater circuit wiring can cause a direct path for current flow, leading to a high voltage condition and triggering the P0052 code.

Faulty Relay or Fuse:

A malfunctioning relay or fuse in the oxygen sensor heater circuit can cause the heating element to receive excessive voltage, resulting in a high voltage condition and triggering the P0052 code.

ECM Malfunction:

In rare cases, a malfunction within the engine control module (ECM) can cause it to send excessive voltage to the oxygen sensor heater circuit, resulting in a high voltage condition and triggering the P0052 code.

Poor Electrical Connections:

Loose or corroded electrical connectors within the heater circuit can introduce resistance into the circuit, causing voltage fluctuations and potentially triggering the P0052 code.

Diagnosing and Resolving P0052 Code

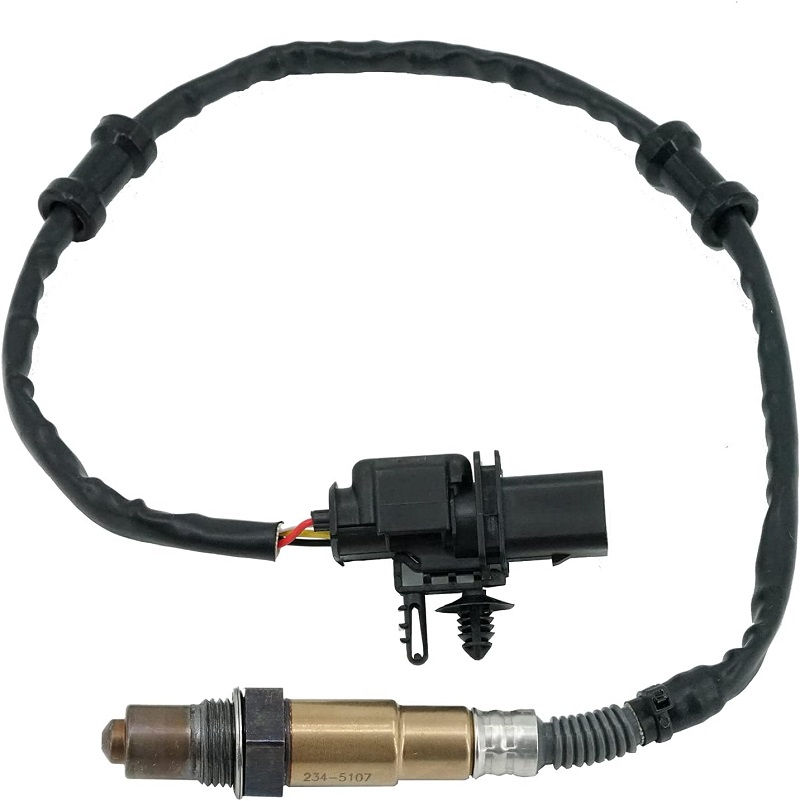

Check out this Marsflex O2 Oxygen Sensor 234-5107 Upstream fit for Ford F150 Expedition Transit 150/250/ 350, Kia Soul, Audi A3 TT, Volkswagen VW CC Eos Jetta Passat GTI, Hyundai Porsche Lincoln Replace 250-25035

P0052 Code

Effectively diagnosing and resolving P0052 requires a methodical approach and a thorough understanding of automotive diagnostics. Here’s a step-by-step guide to tackling this elusive DTC:

Visual Inspection:

Begin by visually inspecting the oxygen sensor and its associated wiring for any signs of damage, corrosion, or wear. Pay close attention to the wiring harness and connectors, as well as the sensor itself.

Check Heater Resistance:

Use a multimeter to measure the resistance across the oxygen sensor heater circuit. Compare the measured resistance to the specifications provided by the vehicle manufacturer to determine if the heater element is functioning correctly.

Test Heater Circuit Voltage:

With the engine running, use a multimeter to check for voltage at the oxygen sensor heater circuit. Ensure that the voltage is within the specified range and consistent with the vehicle’s specifications.

Inspect Relays and Fuses:

Check the relays and fuses associated with the oxygen sensor heater circuit to ensure they are functioning correctly. Replace any faulty relays or fuses as needed.

Verify ECM Functionality:

Consider the possibility of an ECM malfunction contributing to the P0052 code. Conduct a diagnostic evaluation of the ECM to rule out any underlying issues affecting its operation.

Clear Codes and Test Drive:

Once the root cause of the P0052 code has been identified and addressed, clear the DTC from the ECM’s memory using a diagnostic scan tool. Test drive the vehicle to ensure that the issue has been successfully resolved and that no further codes are present.


See Also: P005F Code Turbocharger/Supercharger Boost Control “B” Supply Voltage Circuit High

Navigating the complexities of P0052 HO2S Heater Control Circuit High (Bank 2 Sensor 1) demands a blend of expertise, patience, and meticulous attention to detail.

By understanding the underlying principles of oxygen sensors and heater circuits and systematically diagnosing potential causes, mechanics can effectively address the issues triggering this elusive DTC.

Whether it’s a faulty oxygen sensor, shorted wiring, or ECM malfunctions, resolving P0052 requires a comprehensive understanding of the vehicle’s systems and a commitment to thorough troubleshooting.

With the right tools, knowledge, and expertise, conquering this diagnostic challenge becomes an achievable endeavor, restoring both performance and reliability to vehicles worldwide.
