P0054 Code HO2S Heater Resistance (Bank 1, Sensor 2)

Posted on

This post contains affiliate links. This means I will make a commission at no extra cost to you should you click through and make a purchase [ “As an Amazon Associate, I earn from qualifying purchases.” ]. Read the full disclosure here.

P0054 Code HO2S Heater Resistance (Bank 1, Sensor 2): Deciphering the Code and Its Ramifications GuideMechanic.Com In the intricate world of automotive diagnostics, trouble codes serve as indispensable tools for identifying potential malfunctions within a vehicle’s myriad systems.

One such code of significance is P0054, which concerns the heater resistance of the heated oxygen sensor (HO2S), specifically in Bank 1, Sensor 2.

In this comprehensive exploration, we delve into the meaning of the P0054 code, its underlying causes, observable symptoms, diagnostic procedures, and potential remedies.

See Also: P0052 Code HO2S Heater Control Circuit High (Bank 2 Sensor 1)

Understanding P0054 Code:

P0054 Code

The P0054 code is classified as a diagnostic trouble code (DTC) that pertains to a detected issue with the heater resistance of the HO2S, commonly referred to as the oxygen sensor, located in Bank 1, Sensor 2.

In the intricate dance of engine management, the vehicle’s engine control module (ECM) diligently monitors the operation of the HO2S to ensure optimal combustion efficiency and emission control.

The heater element within the oxygen sensor plays a pivotal role in achieving and maintaining the requisite operating temperature for accurate sensor readings.

Causes of P0054:

Several factors can contribute to the triggering of the P0054 code, including:

Faulty Oxygen Sensor Heater:

A prevalent cause of this code is a malfunctioning heater within the oxygen sensor itself. Over time, the heater element may deteriorate due to factors such as age, exposure to extreme temperatures, or electrical faults, resulting in increased resistance.

Wiring Abnormalities:

The presence of damaged, corroded, or disconnected wiring and connectors associated with the HO2S heater circuit can impede the heater’s functionality, thereby triggering the P0054 code.

ECM Anomalies:

In rare instances, a malfunctioning engine control module (ECM) may erroneously detect a problem with the HO2S heater circuit, leading to the illumination of the check engine light and the setting of the P0054 code.

Exhaust System Leaks:

Leakage in the exhaust system proximal to the oxygen sensor may subject the sensor to excessive heat or permit external air to interfere with its operation, potentially causing disruptions in the heater circuit.

Symptoms of P0054 Code:

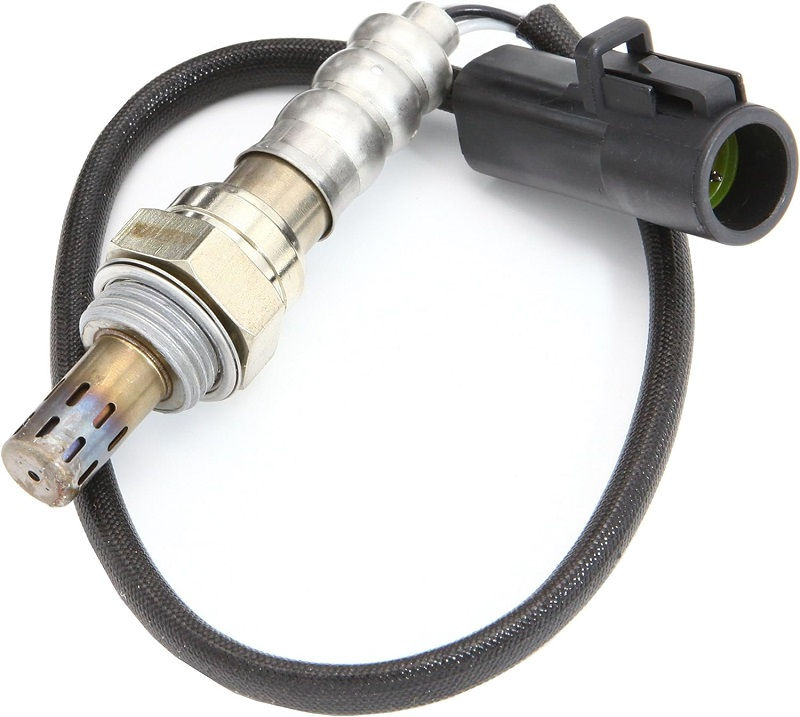

Check out this Oxygen Sensor O2 Sensor Front Rear Upstream Downstream for Ford, Lincoln, Mercury & Mazda – Ranger, Mustang, Expedition, Explorer, Escape, F150, Tribute Compatible with Bosch 15716 15717 15718 15719

P0054 Code

When confronted with the presence of the P0054 code, drivers may observe the following symptoms:

Check Engine Light Activation:

The foremost indicator of a potential issue is the illumination of the check engine light on the vehicle’s dashboard, signaling the detection of a problem with the HO2S heater circuit.

Reduced Fuel Efficiency:

A malfunctioning oxygen sensor heater can compromise the sensor’s ability to furnish accurate data to the ECM, resulting in diminished fuel efficiency and potential performance issues.

Elevated Emissions:

An impaired HO2S heater may disrupt the proper control of the fuel-air mixture, consequently leading to heightened emissions of harmful pollutants from the vehicle’s exhaust system.

P0054 Code HO2S Heater Resistance (Bank 1, Sensor 2)

Diagnosis and Repair:

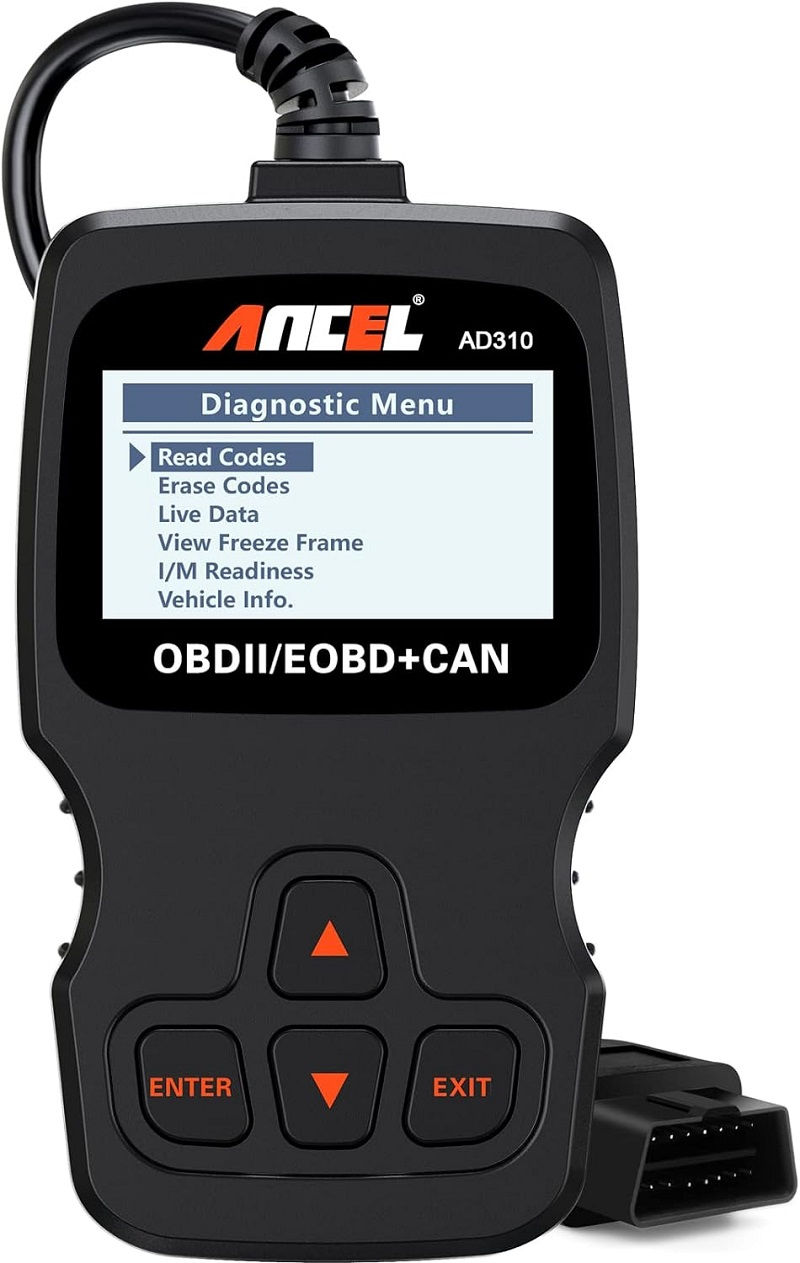

Check out this ANCEL AD310 Classic Enhanced Universal OBD II Scanner Car Engine Fault Code Reader CAN Diagnostic Scan Tool-Black

P0054 Code

Efficiently diagnosing and rectifying the P0054 code necessitates a systematic approach, encompassing the following steps:

DTC Retrieval:

Initiate the diagnostic process by employing an OBD-II scanner to retrieve the stored trouble codes from the vehicle’s ECM, including the P0054 code.

Examination of Wiring and Connectors:

Conduct a meticulous inspection of the wiring harness and connectors associated with the Bank 1, Sensor 2 oxygen sensor heater circuit. Look for signs of damage, corrosion, or disconnection, and proceed to repair or replace any compromised components as warranted.

Heater Resistance Evaluation:

Utilize a multimeter to measure the resistance of the HO2S heater circuit. Compare the measured resistance against the manufacturer’s specified range. If the resistance deviates significantly from the prescribed parameters, it may necessitate the replacement of the oxygen sensor.

Exhaust System Inspection:

Scrutinize the exhaust system for any indications of leaks or damage in proximity to the oxygen sensor’s location. Rectify any identified leaks and ensure the proper sealing of exhaust components.

Verification of ECM Functionality:

In cases where all other potential causes have been eliminated, consider assessing the functionality of the ECM using specialized diagnostic equipment. If deemed defective, proceed with the replacement of the ECM.

DTC Clearance and Road Testing:

Upon completion of repairs, clear the stored trouble codes from the ECM’s memory using the OBD-II scanner. Subsequently, embark on a road test to ascertain that the issue has been effectively addressed, and the P0054 code does not resurface.

P0054 Code HO2S Heater Resistance (Bank 1, Sensor 2)


See Also: P0053 Code HO2S Heater Resistance (Bank 1, Sensor 1)

The P0054 code, indicative of HO2S heater resistance irregularities in Bank 1, Sensor 2, serves as a crucial pointer towards potential anomalies within the vehicle’s oxygen sensor and associated circuits.

Timely and precise diagnosis, coupled with appropriate remedial measures, is imperative for restoring optimal engine performance, fuel efficiency, and emission control capabilities.

By comprehending the significance of the P0054 code and adhering to meticulous diagnostic protocols, automotive technicians can proficiently identify and rectify issues pertaining to the HO2S heater circuit, thereby ensuring the seamless operation of the vehicle’s engine management system.
