Unraveling P0068 Code: Understanding MAP/MAF – Throttle Position Correlation GuideMechanic.Com In the intricate world of automotive diagnostics, error codes serve as crucial indicators of potential issues within a vehicle’s engine management system.

One such code, P0068, points to a discrepancy between the readings of the Manifold Absolute Pressure (MAP) or Mass Air Flow (MAF) sensor and the Throttle Position Sensor (TPS).

This article aims to explore the intricacies of the P0068 error code, delving into its significance, underlying causes, and possible resolutions.

See Also: P0066 Code: Air Assisted Injector Control Circuit or Circuit Low

Understanding P0068 Error Code:

P0068 Code

P0068 is a diagnostic trouble code (DTC) that signifies a correlation problem between the MAP/MAF sensor and the Throttle Position Sensor (TPS).

The MAP sensor measures the pressure within the intake manifold, while the MAF sensor measures the volume of air entering the engine. The TPS, on the other hand, monitors the position of the throttle valve, which regulates the amount of air entering the engine.

When the engine control module (ECM) detects a disparity between the readings of these sensors, it triggers the P0068 error code.

This discrepancy indicates a potential issue with the engine’s air intake system, which can lead to inefficient fuel combustion and reduced engine performance.

Potential Causes of Error Code:

Several factors can contribute to the triggering of the P0068 error code. Some of the common causes include:

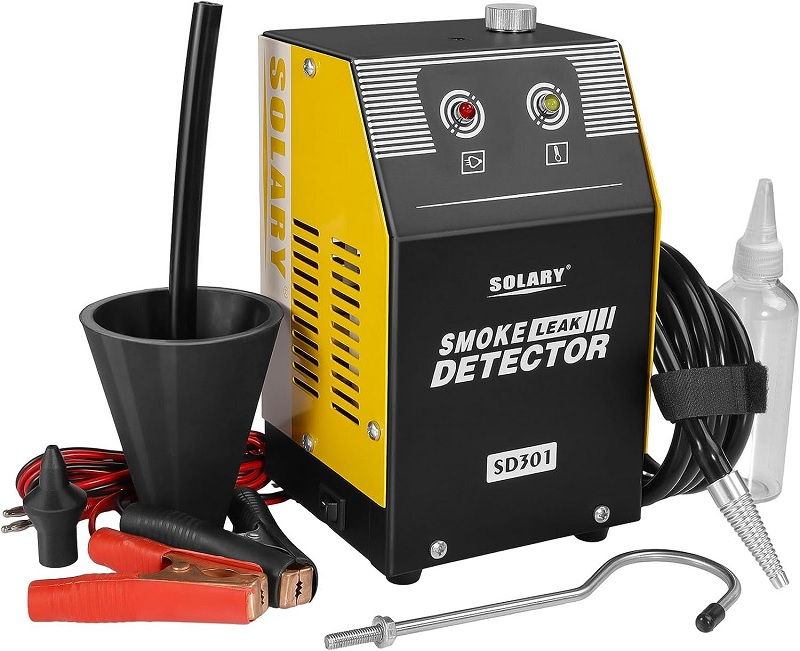

Check out this Solary Automotive Smoke Machine Leak Detector – 12V DC EVAP Vacuum Diagnostic Tester for Pipe System

P0068 Code

Dirty or Faulty Sensors:

Accumulation of dirt, oil, or debris on the MAP/MAF sensors can interfere with their accurate readings. Similarly, a faulty TPS can provide incorrect throttle position information, leading to a correlation problem between the sensors.

Vacuum Leaks:

Vacuum leaks in the intake manifold or associated vacuum lines can disrupt the airflow readings measured by the MAP sensor, leading to a discrepancy between the MAP/MAF sensor and TPS readings.

Faulty Wiring or Connectors:

Damage to the wiring harness or connectors connected to the MAP/MAF sensors or TPS can result in intermittent electrical connections or signal interference, causing the ECM to receive inconsistent sensor data.

Clogged Air Filter:

A clogged or dirty air filter can restrict airflow into the engine, leading to inaccurate readings from the MAP/MAF sensors and a potential correlation issue with the TPS.

Throttle Body Issues:

Malfunctions or restrictions within the throttle body, such as a stuck throttle plate or faulty throttle position sensor, can cause discrepancies in throttle position readings and trigger the P0068 error code.

P0068 Code: MAP/MAF – Throttle Position Correlation

Diagnosing and Resolving Error Code:

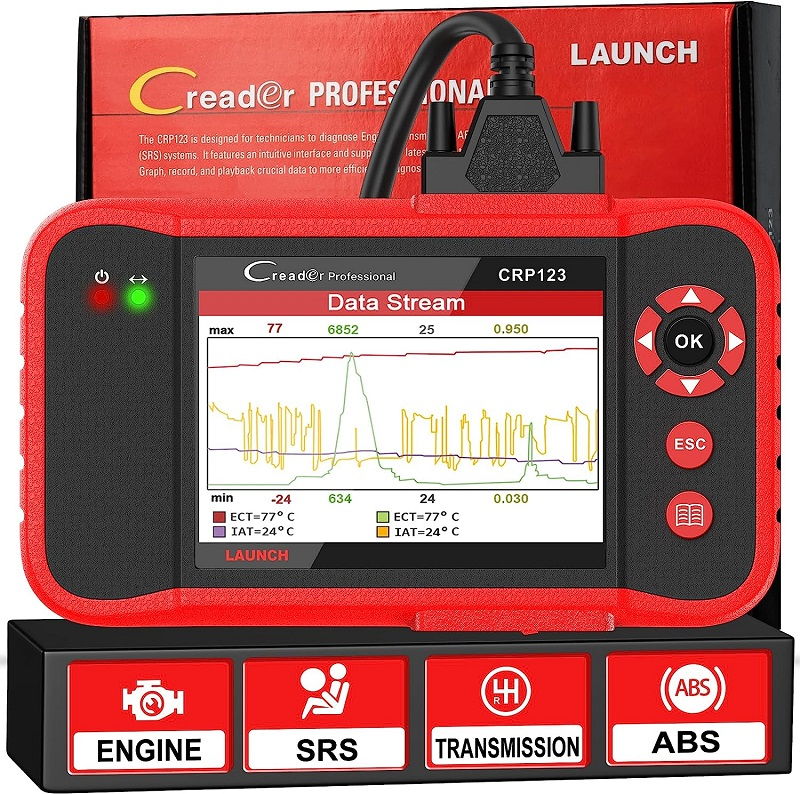

Check out this LAUNCH CRP123 OBD2 Scanner 2024 Newest Elite Code Reader Engine/ABS/SRS/Transmission Car Diagnostic Tool, ABS Code Reader, SRS Scan Tool, Check Engine Code Reader, Lifetime Free Update Scan Tool

P0068 Code

Diagnosing the underlying cause of the P0068 error code typically requires a systematic approach and specialized diagnostic tools. Here are the steps that technicians may take to address this issue:

Scan for Additional Codes:

Before proceeding with diagnostics, technicians should use a diagnostic scanner to retrieve additional trouble codes present in the ECM. These codes may provide valuable clues about related issues within the engine management system.

Visual Inspection:

The first step is to visually inspect the MAP/MAF sensors, TPS, and associated wiring harnesses and connectors for any signs of damage, corrosion, or loose connections. Any issues found during this inspection should be addressed promptly.

Test Sensor Readings:

Using a diagnostic scanner or multimeter, technicians can monitor the readings of the MAP/MAF sensors and TPS while the engine is running. Any significant disparities or erratic fluctuations in sensor readings may indicate a problem that needs further investigation.

Check for Vacuum Leaks:

Technicians should perform a smoke test or use a handheld vacuum pump to check for leaks in the intake manifold or vacuum lines. Any leaks found should be repaired to restore proper airflow and sensor readings.

Clean or Replace Sensors:

If the MAP/MAF sensors or TPS are found to be dirty or faulty during inspection, they should be cleaned using appropriate cleaning solutions or replaced with new ones to ensure accurate sensor readings.

Inspect Air Filter and Throttle Body:

Technicians should inspect the air filter for signs of clogging or contamination and replace it if necessary. Additionally, the throttle body should be inspected for any obstructions or malfunctions that could affect throttle position readings.


See Also: P0067 Code: Air Assisted Injector Control Circuit High

The P0068 error code relating to MAP/MAF – Throttle Position Correlation indicates a discrepancy between the readings of the MAP/MAF sensor and the Throttle Position Sensor (TPS).

This disparity can result from various factors, including dirty sensors, vacuum leaks, faulty wiring, or throttle body issues. Prompt diagnosis and repair are essential to ensure the proper functioning of the engine’s air intake system and maintain optimal engine performance.

By following a systematic diagnostic process and addressing any underlying issues, technicians can effectively resolve the P0068 error code and restore the vehicle’s performance and efficiency.
