P0076 Code: Intake Valve Control Solenoid Circuit Low (Bank 1)

Posted on

This post contains affiliate links. This means I will make a commission at no extra cost to you should you click through and make a purchase [ “As an Amazon Associate, I earn from qualifying purchases.” ]. Read the full disclosure here.

Exploring the P0076 Trouble Code: Intake Valve Control Solenoid Circuit Low (Bank 1) GuideMechanic.Com In the intricate world of automotive diagnostics, trouble codes act as guiding lights, shedding insight into potential issues within a vehicle’s intricate systems.

Among these codes, P0076 holds significance, indicating a concern with the Intake Valve Control Solenoid Circuit Low in Bank 1.

Understanding the implications of this code, its underlying causes, and how to address it is paramount for maintaining optimal vehicle performance and reliability.

See Also: P0074 Code: Ambient Air Temperature Sensor Circuit Intermittent

P0076 Code: Intake Valve Control Solenoid Circuit Low (Bank 1)

The Role of the Intake Valve Control Solenoid:

P0076 Code

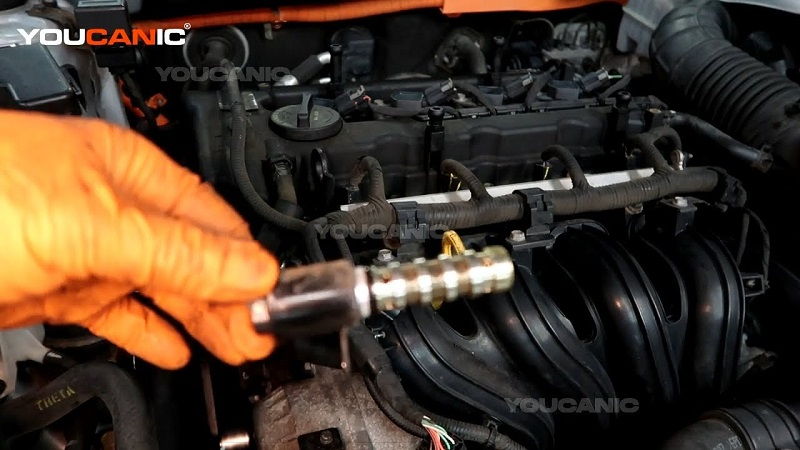

The Intake Valve Control Solenoid plays a pivotal role in modern engine systems, regulating the flow of air into the engine’s intake manifold.

Collaborating with the engine control unit (ECU), this solenoid precisely controls the opening and closing of intake valves, optimizing engine performance, fuel efficiency, and emissions.

Deciphering the Trouble Code:

The P0076 trouble code specifically denotes an issue with the Intake Valve Control Solenoid Circuit Low in Bank 1. It signifies that the voltage signal received from the solenoid in Bank 1 falls below the expected threshold, indicating insufficient voltage or low input.

When this code surfaces, it signals to the ECU that there is a problem with the circuit controlling the intake valve solenoid in Bank 1, potentially affecting engine performance and efficiency.

Common Causes of the P0076 Code:

Several factors may contribute to triggering the P0076 trouble code:

Faulty Intake Valve Control Solenoid:

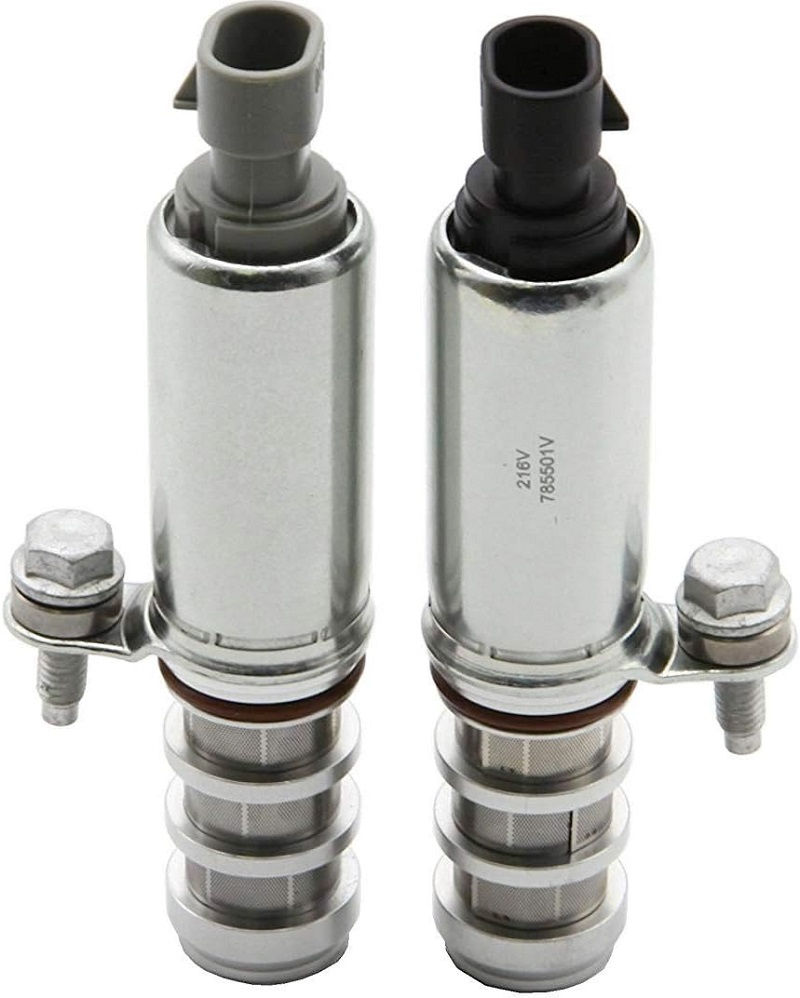

Check out this 2 PCS Intake & Exhaust Camshaft Position Actuator Solenoid Control Valve 12655420 12655421 917-215 917-216 for GM Chevy Cobalt Malibu G5 G6 HHR Buick Pontiac 2.0L 2.2L 2.4L

P0076 Code

Over time, the solenoid may degrade or malfunction due to wear and tear, exposure to high temperatures, or electrical faults. A defective solenoid may fail to open or close properly, leading to restricted airflow into the engine and triggering the P0076 code.

Wiring Issues:

Damaged, corroded, or loose wiring connections within the solenoid circuit can disrupt the flow of electrical signals. This can result in low voltage input to the solenoid, leading to improper operation and the activation of the P0076 trouble code.

Connector Problems:

Faulty connectors or poor connections between the solenoid and the vehicle’s wiring harness can impede electrical conductivity. Loose or corroded pins may cause voltage drops or signal interruptions, triggering the P0076 code.

Low Battery Voltage:

Insufficient voltage supply from the vehicle’s battery or alternator can affect the performance of electrical components, including solenoids. Low battery voltage may lead to inadequate power delivery to the solenoid, resulting in the activation of the P0076 code.

Troubleshooting and Resolving the P0076 Code:

Addressing the P0076 trouble code necessitates a systematic approach to diagnosis and repair:

Diagnostic Scan:

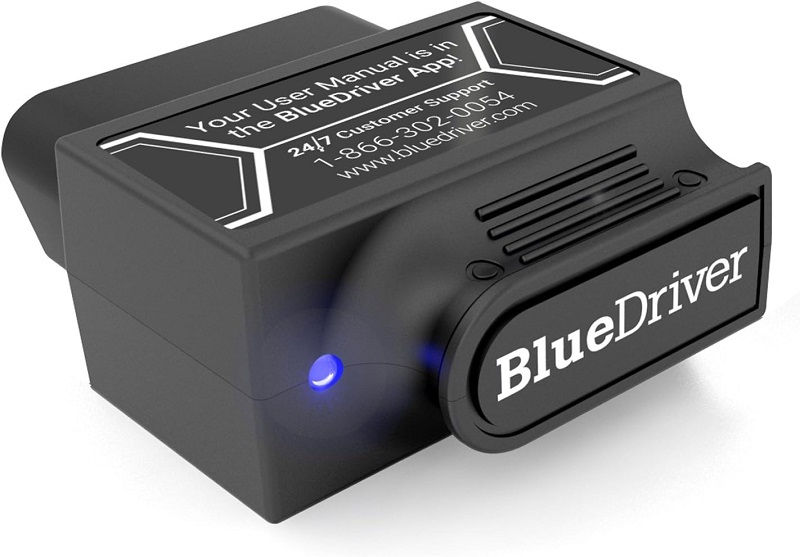

Check out this BlueDriver Bluetooth Pro OBDII Scan Tool for iPhone & Android

P0076 Code

Initiate by conducting a comprehensive diagnostic scan using a compatible scan tool. Retrieve and document all stored trouble codes, including any freeze frame data associated with the P0076 code.

Visual Inspection:

Inspect the intake valve control solenoid and its surrounding components for signs of physical damage, corrosion, or contamination. Check the wiring harness and connectors for visible damage or loose connections.

Testing Solenoid Resistance:

Employ a multimeter to test the resistance of the intake valve control solenoid. Compare the readings to specifications provided by the manufacturer. Replace the solenoid if it fails to meet the specified values.

Check Wiring and Connectors:

Inspect the wiring harness and connectors associated with the solenoid. Repair or replace any damaged wires, corroded terminals, or faulty connectors. Ensure proper routing and secure connections.

Battery Voltage Test:

Verify the voltage output of the vehicle’s battery and alternator using a multimeter. Ensure that the voltage levels meet the manufacturer’s specifications. Replace the battery or alternator if necessary to ensure adequate power supply to the solenoid.

Clear Codes and Test Drive:

After completing repairs, clear the trouble codes from the ECU memory using the scan tool. Test drive the vehicle to verify that the issue has been resolved. Monitor the operation of the intake valve control solenoid and ensure it functions correctly.


In conclusion, the P0076 trouble code associated with the Intake Valve Control Solenoid Circuit Low in Bank 1 indicates a potential malfunction or discrepancy in the vehicle’s intake valve control system.

Understanding the causes and implications of this code is essential for diagnosing and rectifying the underlying issues effectively.

By adhering to a systematic diagnostic approach and addressing any faulty components or wiring anomalies, drivers and technicians can ensure optimal engine performance and reliability.

Regular maintenance and inspection of the intake valve control system can help prevent future occurrences of the P0076 trouble code, contributing to the overall longevity of the vehicle.

See Also: P0075 Code: Intake Valve Control Solenoid Circuit (Bank 1)
