Unraveling the P0078 Trouble Code: Exhaust Valve Control Solenoid Circuit (Bank 1) GuideMechanic.Com In the intricate realm of automotive diagnostics, trouble codes serve as invaluable tools, offering insights into potential issues within a vehicle’s intricate systems.
Among these codes, P0078 commands attention, indicating a concern with the Exhaust Valve Control Solenoid Circuit in Bank 1.
Understanding the significance of this code, its underlying causes, and how to address it is paramount for maintaining optimal vehicle performance and reliability.
See Also: P0076 Code: Intake Valve Control Solenoid Circuit Low (Bank 1)
P0078 Code: Exhaust Valve Control Solenoid Circuit (Bank 1)
The Role of the Exhaust Valve Control Solenoid:

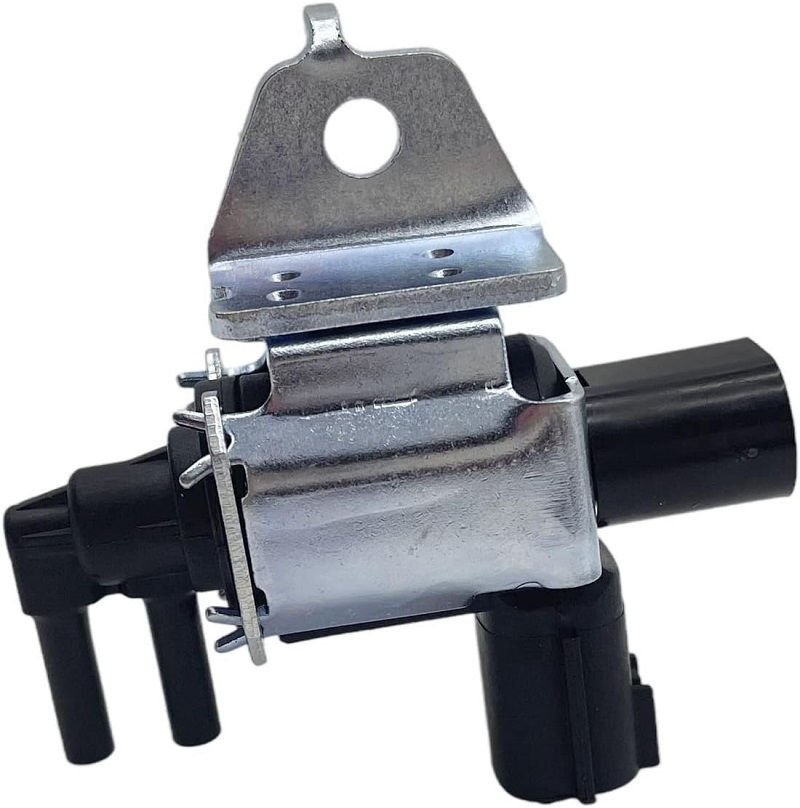

The Exhaust Valve Control Solenoid plays a crucial role in modern engine systems, regulating the flow of exhaust gases out of the engine.
Collaborating with the engine control unit (ECU), this solenoid precisely controls the opening and closing of exhaust valves, optimizing engine performance, emissions, and fuel efficiency.
Deciphering the Trouble Code:
The P0078 trouble code specifically denotes an issue with the Exhaust Valve Control Solenoid Circuit in Bank 1. It indicates that the voltage signal received from the solenoid in Bank 1 deviates from the expected range, indicating a malfunction or discrepancy within the circuit.
When this code appears, it signals to the ECU that there is a problem with the circuit controlling the exhaust valve solenoid in Bank 1, potentially affecting engine performance and emissions.
Common Causes of the P0078 Code:
Several factors may contribute to triggering the P0078 trouble code:
Faulty Exhaust Valve Control Solenoid:
Over time, the solenoid may degrade or malfunction due to wear and tear, exposure to high temperatures, or electrical faults.
A defective solenoid may fail to operate within the specified voltage range, leading to improper exhaust valve operation and triggering the P0078 code.
Wiring Issues:
Damaged, corroded, or loose wiring connections within the solenoid circuit can disrupt the flow of electrical signals. This can result in voltage fluctuations or intermittent communication between the solenoid and the vehicle’s ECU, leading to the activation of the P0078 trouble code.
Connector Problems:
Faulty connectors or poor connections between the solenoid and the vehicle’s wiring harness can impede electrical conductivity. Loose or corroded pins may cause voltage drops or signal interruptions, triggering the P0078 code.
ECU Malfunction:
In rare cases, a malfunctioning ECU may incorrectly regulate the voltage supplied to the exhaust valve control solenoid, leading to erratic solenoid operation and the activation of the P0078 code.
Troubleshooting and Resolving the P0078 Code:
Addressing the P0078 trouble code necessitates a systematic approach to diagnosis and repair:
Diagnostic Scan:

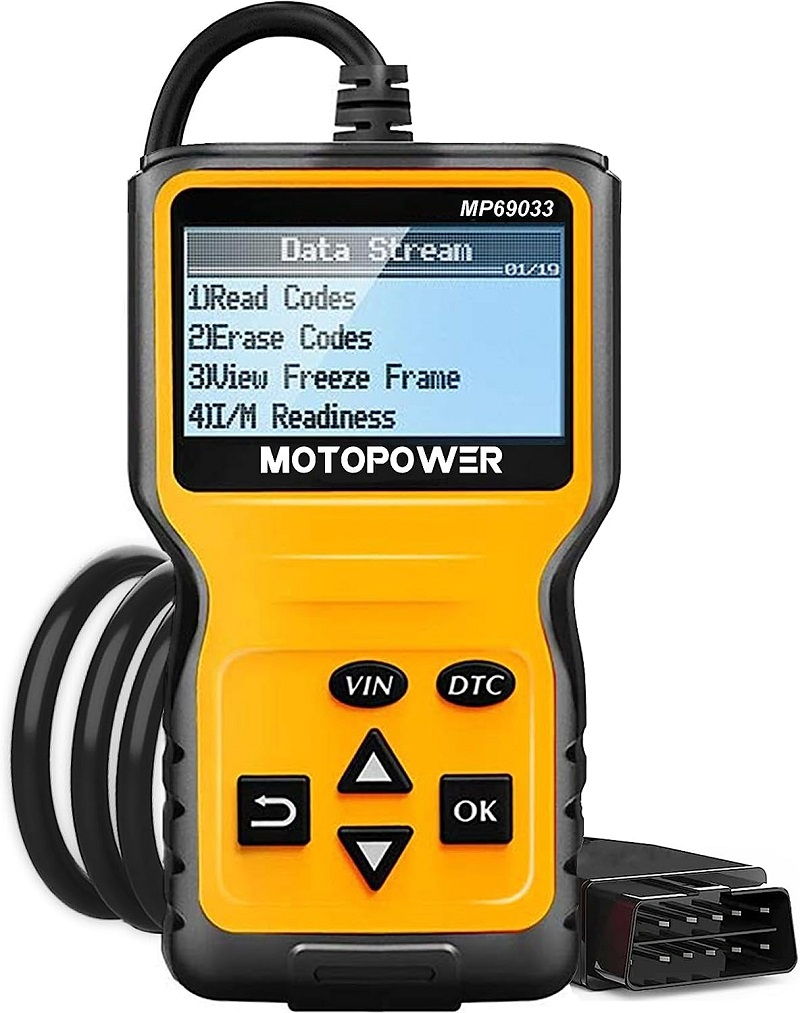

Begin by conducting a comprehensive diagnostic scan using a compatible scan tool. Retrieve and document all stored trouble codes, including any freeze frame data associated with the P0078 code.
Visual Inspection:
Inspect the exhaust valve control solenoid and its surrounding components for signs of physical damage, corrosion, or contamination. Check the wiring harness and connectors for visible damage or loose connections.
Testing Solenoid Resistance:
Utilize a multimeter to test the resistance of the exhaust valve control solenoid. Compare the readings to specifications provided by the manufacturer. Replace the solenoid if it fails to meet the specified values.
Check Wiring and Connectors:
Inspect the wiring harness and connectors associated with the solenoid. Repair or replace any damaged wires, corroded terminals, or faulty connectors. Ensure proper routing and secure connections.
ECU Diagnosis:
If all other components check out, consider testing the functionality of the ECU. Consult the vehicle’s service manual for instructions on how to perform an ECU diagnostic test using a scan tool.
Clear Codes and Test Drive:
After completing repairs, clear the trouble codes from the ECU memory using the scan tool. Test drive the vehicle to verify that the issue has been resolved. Monitor the operation of the exhaust valve control solenoid and ensure it functions correctly.
Conclusion:
In conclusion, the P0078 trouble code associated with the Exhaust Valve Control Solenoid Circuit in Bank 1 signifies a potential malfunction or discrepancy in the vehicle’s exhaust valve control system.
Understanding the causes and implications of this code is essential for diagnosing and remedying the underlying issues effectively.
By adhering to a systematic diagnostic approach and addressing any faulty components or wiring anomalies, drivers and technicians can ensure optimal engine performance and reliability.
Regular maintenance and inspection of the exhaust valve control system can help prevent future occurrences of the P0078 trouble code, contributing to the overall longevity of the vehicle.
