What Does Fuel Pump Control Circuit Open Mean? – Demystifying the Causes, Effects, and Solutions GuideMechanic.Com The fuel pump is a vital component of a vehicle’s fuel delivery system, responsible for supplying pressurized fuel from the tank to the engine.

When issues arise within the fuel pump control circuit, it can lead to disruptions in fuel delivery, affecting engine performance and reliability.

One common trouble code associated with such issues is “Fuel Pump Control Circuit Open.” In this article, we aim to shed light on what this code means, its potential causes, effects, and how to address it effectively.

See Also: What is short term fuel Trim Bank 2?

What Does Fuel Pump Control Circuit Open Mean?

What Does Fuel Pump Control Circuit Open Mean

The “Fuel Pump Control Circuit Open” is a diagnostic trouble code (DTC) that indicates an open or incomplete circuit in the fuel pump control system.

In simpler terms, it means that there is an interruption or break in the electrical circuit responsible for controlling the fuel pump’s operation.

This interruption prevents the fuel pump from receiving the necessary electrical signals to function properly, resulting in a loss of fuel delivery to the engine.


Electrical Wiring Issues:

One of the most common causes of a is electrical wiring issues. This may include damaged, corroded, or severed wires within the wiring harness that connects the fuel pump to the vehicle’s electrical system.

Over time, exposure to heat, moisture, and other environmental factors can degrade the integrity of the wiring, leading to circuit interruptions.

Blown Fuse:

In some cases, a blown fuse in the vehicle’s fuse box can cause the fuel pump control circuit to open. Fuses are designed to protect electrical circuits from overloads or short circuits by breaking the circuit when excessive current flows through them. A blown fuse interrupts the flow of electricity to the fuel pump, rendering it inoperable until the fuse is replaced.

Faulty Relay:

The fuel pump relay is responsible for controlling the flow of electricity to the fuel pump. If the relay fails or malfunctions, it can result in an open circuit condition, preventing the fuel pump from receiving power.

Common issues with relays include corrosion, internal wear, and electrical malfunctions, all of which can lead to circuit interruptions.

Poor Ground Connection:

A weak or inadequate ground connection between the fuel pump and the vehicle’s chassis or battery can also cause a fuel pump control circuit open. The ground connection completes the electrical circuit and provides a return path for current flow.

If the ground connection is loose, corroded, or poorly connected, it can disrupt the flow of electricity to the fuel pump, leading to operation failure.

What Does Fuel Pump Control Circuit Open Mean?


Engine Stalling or No Start:

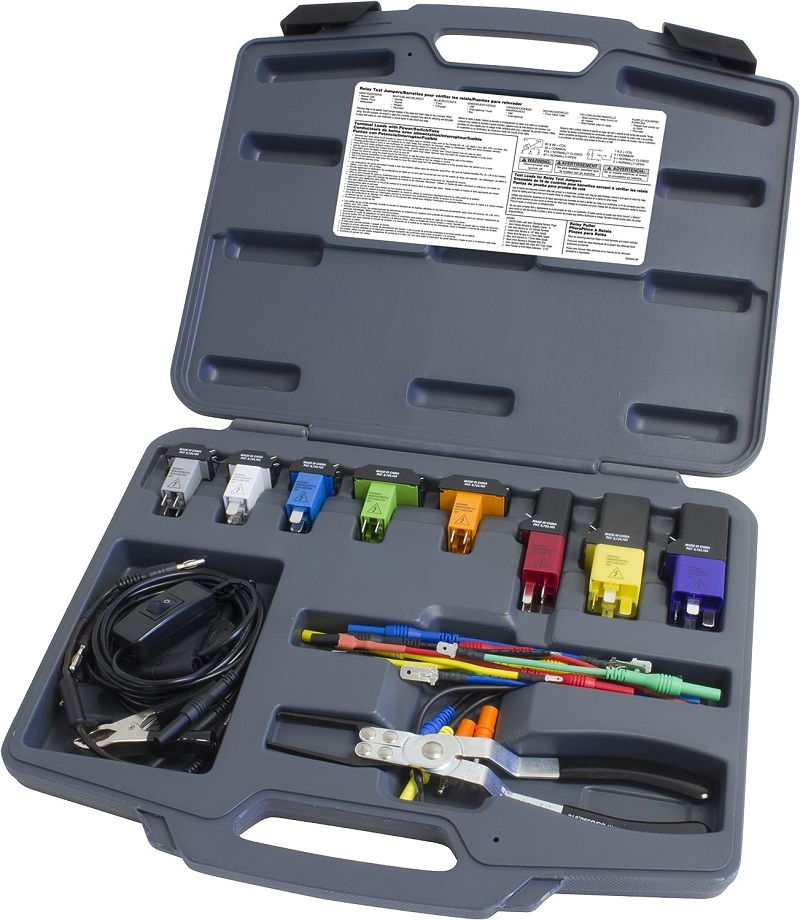

Check out this Lisle 69300 Master Relay Test Jump Set, One Size, Factory

What Does Fuel Pump Control Circuit Open Mean

The most immediate effect of a fuel pump control circuit open is engine stalling or failure to start. Without a functioning fuel pump, the engine cannot receive the necessary fuel supply for combustion, resulting in an inability to start or sudden shutdown while driving.

See Also: How do I fix code P0170?

Loss of Power:

In cases where the fuel pump control circuit intermittently opens, the engine may experience a loss of power during acceleration or under heavy load. This is due to insufficient fuel delivery to the engine, resulting in decreased performance and responsiveness.

Fuel Pump Noise:

In some instances, a fuel pump control circuit open may cause the fuel pump to emit unusual noises, such as whining or buzzing. This occurs when the fuel pump attempts to operate but is unable to due to the interrupted circuit. Continued attempts to operate under these conditions can lead to premature wear and eventual failure of the fuel pump.

Solutions to Address:

Inspect and Repair Wiring:

Begin by visually inspecting the wiring harness connected to the fuel pump for any signs of damage, corrosion, or disconnection.

Repair or replace any damaged wires as necessary, ensuring proper insulation and secure connections. Use a multimeter to test for continuity and voltage along the circuit to identify any areas of concern.

Check and Replace Fuses:

Verify the condition of the fuses related to the fuel pump control circuit in the vehicle’s fuse box. Replace any blown fuses with ones of the appropriate rating to restore proper electrical continuity. Ensure that the fuse contacts are clean and free of corrosion to prevent future issues.

Test and Replace Relays:

Test the fuel pump relay using a relay tester or multimeter to verify its functionality. If the relay fails the test or shows signs of wear, such as overheating or corrosion, replace it with a new relay. Ensure that the replacement relay meets the manufacturer’s specifications and is installed correctly.

Check Ground Connections:

Inspect the ground connection between the fuel pump and the vehicle’s chassis or battery for tightness, corrosion, or damage.

Clean the ground connection surfaces thoroughly and tighten any loose connections to ensure a secure electrical connection. Consider adding additional grounding straps or upgrading to heavier gauge wiring for improved conductivity.

Consult a Professional:

If you’re unable to diagnose or address the issue of a fuel pump control circuit open on your own, it’s advisable to seek assistance from a qualified automotive technician or mechanic.

They have the expertise, diagnostic tools, and resources necessary to accurately diagnose and repair electrical issues related to the fuel pump control circuit.

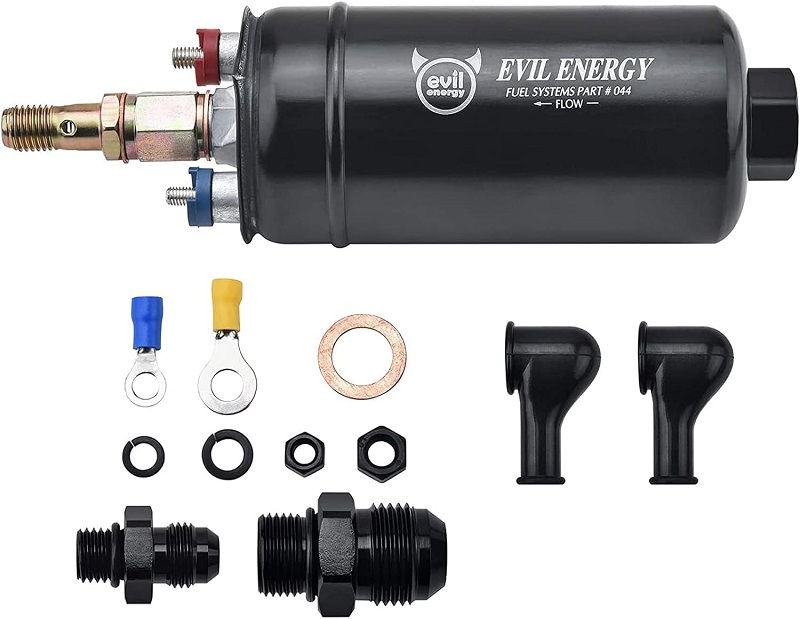

Check out this EVIL ENERGY External Inline Fuel Pump Electric 300LPH High Flow 12V Universal

What Does Fuel Pump Control Circuit Open Mean

Encountering a fuel pump control circuit open can be a frustrating experience for vehicle owners, as it can lead to engine performance issues and potential safety concerns.

By understanding the potential causes and effects of this condition, along with implementing appropriate diagnostic and repair procedures, you can effectively address the issue and restore proper fuel pump operation.

Whether it’s repairing damaged wiring, replacing faulty relays, or ensuring proper ground connections, taking proactive measures to maintain the integrity of the fuel pump control circuit is essential for reliable vehicle operation.

See Also: What To Do When Your Car Starts Then Dies
