Where is my Fuel Pressure Regulator Located? – Demystifying the Location of Your Fuel Pressure Regulator: A Comprehensive Guide GuideMechanic.Com The fuel pressure regulator is a crucial component of your vehicle’s fuel system, responsible for maintaining optimal fuel pressure for engine performance and efficiency.
Understanding its location is essential for troubleshooting and maintenance purposes. In this comprehensive guide, we delve into the intricacies of the fuel pressure regulator’s placement, exploring its typical locations across different vehicle models, and providing insights to help you locate it with ease.
Where is my Fuel Pressure Regulator Located?
Understanding the Fuel Pressure Regulator:
Before diving into its location, let’s briefly understand the role of the fuel pressure regulator. The fuel pressure regulator is a small, valve-like device that monitors and controls the pressure of fuel flowing from the fuel pump to the fuel injectors.
It ensures that the fuel pressure remains within a specified range, allowing for efficient combustion and engine operation. By regulating the fuel pressure, the fuel pressure regulator helps optimize fuel consumption and engine performance.
Factors Influencing Location:
See Also: What To Do When Your Car Starts Then Dies
The location of the fuel pressure regulator can vary depending on several factors, including the make and model of your vehicle, the type of fuel system it employs (e.g., fuel injection system), and the engine configuration.
While some vehicles have the fuel pressure regulator integrated into the fuel rail, others may have it mounted externally or within the fuel tank.
Where is my Fuel Pressure Regulator Located?
Common Locations:

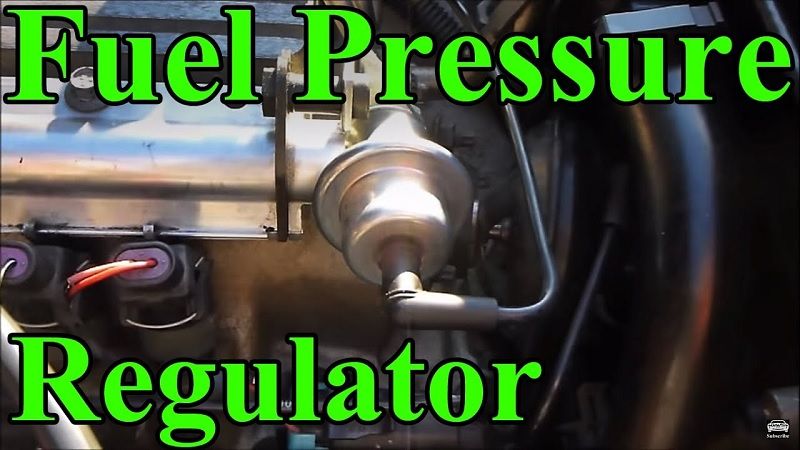

On the Fuel Rail:

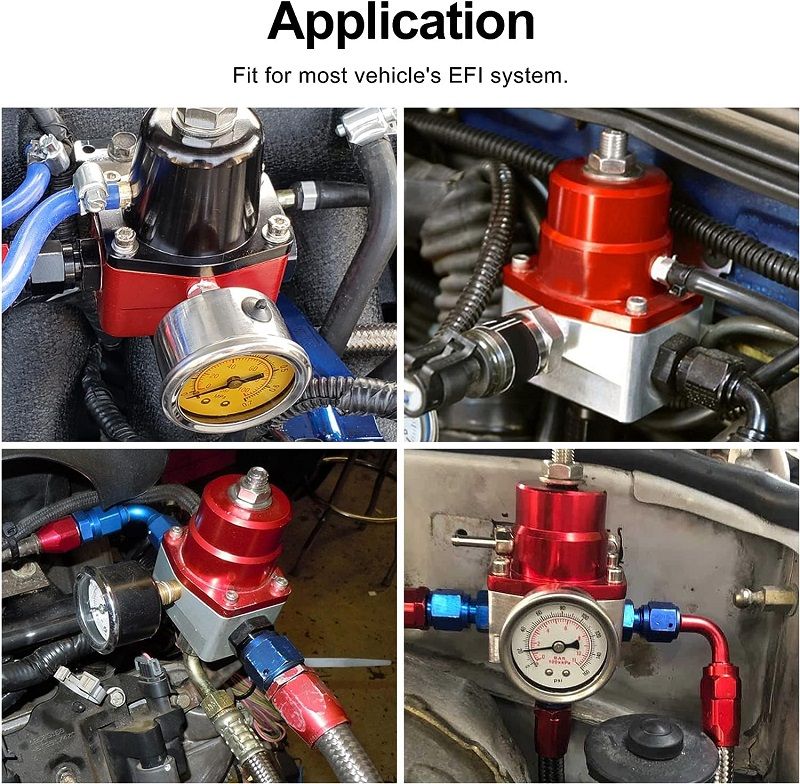

Check out this EVIL ENERGY Fuel Pressure Regulator 6AN EFI Bypass Return Adjustable 30-70psi Black&Red
One of the most common locations for the fuel pressure regulator is on the fuel rail. The fuel rail is a metal pipe or rail that distributes pressurized fuel to the fuel injectors.
On vehicles equipped with a fuel rail-mounted regulator, it is typically situated at one end of the fuel rail, near the fuel injectors. This location allows for easy access and servicing of the regulator.
Near the Fuel Injector(s):
In some vehicles, particularly those with multi-port fuel injection systems, the fuel pressure regulator may be located near the fuel injector(s).
This placement ensures that the regulator can effectively monitor and control the fuel pressure at the point of injection, optimizing fuel delivery to the engine.
Inside the Fuel Tank:
In certain vehicle models, especially those with returnless fuel systems, the fuel pressure regulator may be integrated into the fuel pump assembly inside the fuel tank.
While this location may be less accessible for servicing, it helps to minimize fuel vapor emissions and maintain consistent fuel pressure, particularly in high-performance or fuel-efficient vehicles.
External Mounting:
Some older vehicles or vehicles with carbureted engines may have the fuel pressure regulator mounted externally, either on the firewall, fender, or elsewhere in the engine compartment. This location allows for easy adjustment and replacement of the regulator, if necessary.
Tips for Locating Your Fuel Pressure Regulator:
Consult Your Vehicle’s Manual:
The most reliable source of information regarding the location of your fuel pressure regulator is your vehicle’s owner’s manual or service manual.
These documents typically contain detailed diagrams and descriptions of the various components of your vehicle’s fuel system, including the fuel pressure regulator.
Visual Inspection:
Perform a visual inspection of your engine compartment, paying close attention to the fuel rail, fuel lines, and intake manifold.
Look for a small, cylindrical device with fuel lines connected to it, as this is likely to be the fuel pressure regulator. If your vehicle has an external regulator, it may be mounted near the fuel lines or fuel filter.
Follow Fuel Lines:
Trace the fuel lines from the fuel tank towards the engine compartment. The fuel pressure regulator is typically located along the fuel lines, either near the fuel tank, fuel rail, or fuel injectors. Following the path of the fuel lines can help narrow down the potential locations of the regulator.
Seek Professional Assistance:
See Also: What is short term fuel Trim Bank 2?
If you’re unable to locate the fuel pressure regulator or if you’re unsure about its location, consider seeking assistance from a qualified mechanic or automotive technician. They have the expertise and diagnostic tools necessary to identify and service the fuel pressure regulator accurately.
Where is my Fuel Pressure Regulator Located?
Conclusion:
The fuel pressure regulator plays a crucial role in maintaining optimal fuel delivery and engine performance in your vehicle. By understanding its typical locations and following the tips outlined in this guide, you can effectively locate and service the fuel pressure regulator as needed.
Whether it’s mounted on the fuel rail, near the fuel injectors, or within the fuel tank, knowing where to find the fuel pressure regulator empowers you to keep your vehicle running smoothly for miles to come.
