2011 Honda Pilot Alternator GuideMechanic.Com Welcome to our comprehensive guide on the 2011 Honda Pilot alternator. In this article, we will cover everything you need to know about this essential component of your vehicle’s charging system.

From its function and importance to common issues and troubleshooting tips, we’ve got you covered. So, let’s dive right in and explore the world of the 2011 Honda Pilot alternator.

First and foremost, let’s understand the role of the alternator in your Honda Pilot. The alternator is responsible for generating electricity to power various electrical components in your vehicle while also recharging the battery.

See Also: 2006 Honda Accord Catalytic Converter

It works by converting mechanical energy from the engine into electrical energy, which is then distributed throughout the car.

Without a properly functioning alternator, your Honda Pilot may experience a range of electrical problems, including a dead battery or a malfunctioning electrical system.

How Does an Alternator Work?

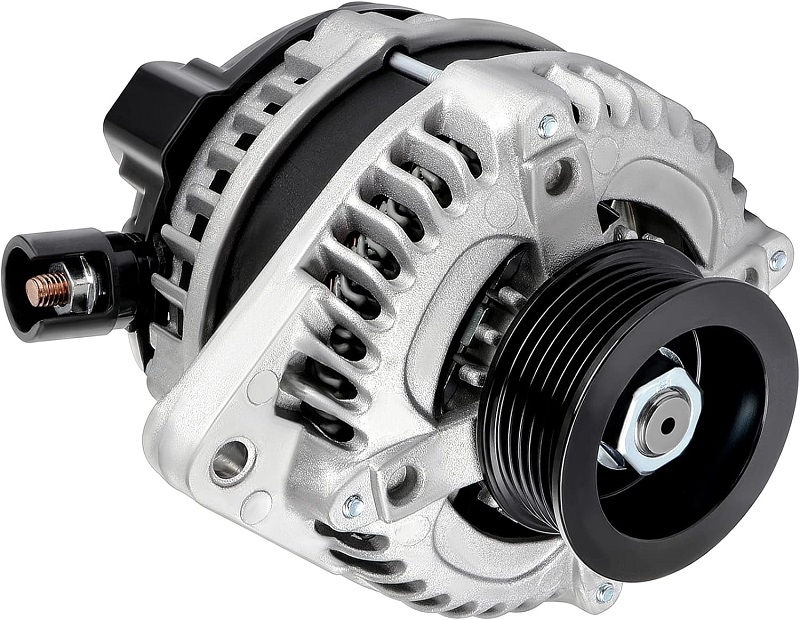

Check out this SCITOO Alternator Fit

2011 Honda Pilot Alternator

The alternator consists of several key components, each playing a crucial role in its operation. The primary components include the rotor, stator, diode bridge, voltage regulator, and pulley.

Understanding how these components work together will give you a clearer picture of the alternator’s functionality.

Rotor and Stator

The rotor is the spinning part of the alternator, while the stator remains stationary. The rotor consists of a set of wire windings wrapped around an iron core, and it is driven by a belt connected to the engine crankshaft. As the rotor spins inside the stator, it creates a changing magnetic field.

The stator, on the other hand, consists of a set of wire windings placed around a laminated iron core. These windings are connected to the electrical system of the vehicle.

When the changing magnetic field produced by the rotor cuts through the wire windings of the stator, it induces an alternating current (AC) voltage.

Diode Bridge

The alternating current generated by the stator is then rectified into direct current (DC) voltage using a diode bridge.

See Also: 2005 Honda Accord Catalytic Converter

The diode bridge consists of multiple diodes arranged in a specific configuration, allowing current to flow in only one direction. This conversion from AC to DC is necessary as most of the vehicle’s electrical components operate on DC voltage.

Voltage Regulator

The voltage regulator is responsible for controlling the output voltage of the alternator. It ensures that the electrical system receives a steady supply of voltage, typically around 14 volts, regardless of the engine speed. The voltage regulator achieves this by adjusting the field current flowing through the rotor windings.

Pulley

The pulley is connected to the rotor shaft and is driven by the engine’s crankshaft through a belt. The pulley’s size determines the speed at which the rotor spins, which in turn affects the alternator’s output voltage.

By adjusting the pulley size, the alternator can maintain a constant output voltage even at different engine speeds.

Overall, the alternator’s operation can be summarized as follows: the rotor spins inside the stator, producing a changing magnetic field. This changing magnetic field induces an alternating current (AC) in the stator windings.

The AC voltage is then rectified into direct current (DC) voltage using a diode bridge. The voltage regulator controls the output voltage, and the pulley determines the rotor speed, thus regulating the alternator’s output.

Importance of a Well-Functioning Alternator

Check out this A-Premium 2 x Front Lower Control Arm Assembly, with Ball Joint & Bushing

2011 Honda Pilot Alternator

A well-functioning alternator is crucial for the overall performance and reliability of your 2011 Honda Pilot. It provides electrical power to various components, ensuring they operate efficiently. Here are some key reasons why a well-functioning alternator is important:

Powering Electrical Components

The alternator powers numerous electrical components in your Honda Pilot, including the headlights, audio system, air conditioning, power windows, and more.

See Also: Catalytic Converter Honda Accord 1999

Without a functioning alternator, these components may not receive enough power to operate optimally or may not work at all. A well-functioning alternator ensures that all electrical systems in your vehicle operate smoothly.

Charging the Battery

The alternator plays a crucial role in recharging the battery while the engine is running. When the engine is on, the alternator generates electricity, which is then used to recharge the battery.

This ensures that the battery remains charged and ready to provide power when the engine is off. A faulty alternator may not provide enough charge to the battery, leading to a drained battery and difficulty starting the vehicle.

Preventing Electrical Issues

A properly functioning alternator helps prevent electrical issues in your Honda Pilot. When the alternator is not functioning correctly, it may produce inconsistent or insufficient power, leading to erratic behavior of electrical components.

Dimming headlights, flickering dashboard lights, and malfunctioning power windows are common signs of alternator problems.

By maintaining a healthy alternator, you can avoid these electrical issues and ensure a comfortable and reliable driving experience.

Signs of a Failing Alternator

Check out this Nilight 2PCS 3FT Spiral RGB Led Whip Light with Spring Base Chasing Light RF Remote Control

2011 Honda Pilot Alternator

Recognizing the signs of a failing alternator is crucial to prevent further damage and avoid unexpected breakdowns. Here are some common symptoms that indicate a potential alternator problem:

Dimming Headlights

If you notice that your headlights are dimming or flickering, it could be a sign of an alternator issue. The alternator may not be providing enough power to the headlights, causing them to dim or fluctuate in brightness.

This symptom is particularly noticeable when you turn on other electrical components, such as the air conditioning or radio.

Warning Lights

Pay attention to warning lights on your dashboard, especially the battery or charging system warning light. If this light illuminates while driving, it indicates a problem with the charging system, which includes the alternator. Ignoring this warning can lead to a drained battery and eventually a stalled engine.

Strange Noises

A failing alternator can produce unusual noises, such as grinding, whining, or squealing sounds. These noises may indicate a worn-out bearing or a loose belt, both of which can affect the alternator’s performance.

See Also: Honda Element VTEC Solenoid

If you notice any strange noises coming from the engine compartment, it’s essential to have your alternator inspected as soon as possible.

Electrical System Malfunctions

If various electrical components in your Honda Pilot start malfunctioning simultaneously, it could be a sign of alternator trouble.

For example, if the power windows, air conditioning, and radio all stop working at the same time, it’s likely due to a lack of electrical power from the alternator. It’s crucial to address these issues promptly to prevent further damage to the electrical system.

Diagnosing Alternator Problems

If you suspect an alternator problem in your 2011 Honda Pilot, it’s important to diagnose the issue accurately before taking any corrective measures. Here is a step-by-step guide on how to diagnose alternator problems:

Step 1: Visual Inspection

Begin by inspecting the alternator visually. Look for any signs of physical damage, such as loose connections, frayed wires, or a worn-out belt. Ensure that the alternator is securely mounted and that all electrical connections are tight and free from corrosion.

Step 2: Battery Voltage Check

Start the engine and use a multimeter to measure the voltage across the battery terminals. A healthy alternator should produce a voltage of around 13.5 to 14.5 volts. If the voltage reading is significantly lower or higher, it may indicate an alternator problem.

Step 3: Load Test

To further assess the alternator’s performance, perform a load test. This involves turning on various electrical components, such as the headlights, air conditioning, and radio, while measuring the voltage across the battery terminals. If the voltage drops significantly below the normal range, it suggests an issue with the alternator’s output.

Step 4: Alternator Output Test

If the previous tests indicate a potential alternator problem, it’s necessary to conduct an alternator output test. This test measures the alternator’s output current and voltage under load conditions. It requires specialized equipment and may be best performed by a professional mechanic or at an automotive service center.

Step 5: Belt and Pulley Inspection

Lastly, inspect the alternator belt and pulley for any signs of wear or damage. A loose or worn-out belt can affect the alternator’s performance.

Similarly, a faulty pulley can cause excessive noise or prevent the alternator from spinning at the correct speed. If any issues are detected, it’s advisable to have the belt or pulley replaced.

Common Alternator Issues in the 2011 Honda Pilot

While the 2011 Honda Pilot is generally reliable, some common alternator issues have been reported by owners. Here are a few problems that you may encounter:

Faulty Voltage Regulator

A faulty voltage regulator is a common issue in the 2011 Honda Pilot alternator. The voltage regulator is responsible for maintaining a steady output voltage from the alternator.

See Also: 2007 Honda Civic Catalytic Converter

If the voltage regulator malfunctions, it may cause the alternator to either overcharge or undercharge the battery, leading to electricalinstability. This can result in dimming headlights, erratic electrical system behavior, or even a dead battery.

Worn-out Brushes

The brushes inside the alternator are responsible for transferring electrical current from the rotor to the rest of the electrical system.

Over time, these brushes can wear out, resulting in poor contact and reduced electrical output. If you notice intermittent electrical issues or reduced charging capacity, worn-out brushes could be the culprit.

Belt-related Issues

The alternator belt is crucial for transferring power from the engine to the alternator. If the belt becomes loose, cracked, or worn, it can slip or break, resulting in a loss of power generation.

A faulty belt can also cause unusual noises, such as squealing or screeching. Regular inspection and maintenance of the alternator belt are essential to prevent belt-related issues.

Faulty Diode Bridge

The diode bridge in the alternator converts AC voltage to DC voltage. If one or more diodes within the bridge fail, it can result in a ripple effect, causing inconsistent or excessive voltage output. This can lead to electrical system malfunctions and potential damage to sensitive electronic components.

DIY Alternator Maintenance Tips

Maintaining your alternator can help extend its lifespan and prevent potential issues. Here are some DIY maintenance tips to keep your 2011 Honda Pilot alternator in optimal condition:

Clean the Terminals

Over time, corrosion can build up on the alternator terminals, affecting electrical conductivity. Use a wire brush or sandpaper to clean the terminals and ensure a solid connection. Remember to disconnect the battery before performing any maintenance on the alternator.

Check Belt Tension

Regularly inspect the tension of the alternator belt to ensure it is neither too loose nor too tight. A loose belt can slip and reduce power generation, while an overly tight belt can strain the alternator and other engine components. Refer to your vehicle’s manual for the correct belt tension specifications and adjust accordingly.

Inspect and Replace Worn-out Belts

Inspect the condition of the alternator belt regularly. Look for signs of wear, cracks, or fraying. If you notice any issues, replace the belt promptly to prevent belt failure.

Keep the Alternator Cool

Heat can affect the performance of the alternator. Ensure proper airflow around the alternator by keeping it free from debris and ensuring that the cooling fins are clean. Avoid covering the alternator with any objects that may obstruct airflow.

Regularly Check Battery Health

The health of your battery is closely tied to the performance of the alternator. Regularly check the battery’s condition, including its voltage and electrolyte levels. A weak or deteriorating battery can put additional strain on the alternator, leading to potential issues.

Replacing the Alternator: A Step-by-Step Guide

If your alternator requires replacement, you can save on labor costs by doing it yourself. Here’s a step-by-step guide to help you through the process:

Step 1: Gather the Necessary Tools

Before starting, gather the required tools, including a socket set, wrenches, pliers, and a pry bar. Additionally, ensure you have a replacement alternator that matches the specifications of your 2011 Honda Pilot.

Step 2: Disconnect the Battery

Prior to any work on the alternator, disconnect the negative terminal of the battery to prevent electrical shock or damage to the electrical system.

Step 3: Remove the Serpentine Belt

Locate the serpentine belt tensioner and use a wrench or socket to release tension on the belt. Slide the belt off the alternator pulley and set it aside.

Step 4: Disconnect Electrical Connections

Label and disconnect all electrical connections from the alternator, including the main power wire and any additional connectors. Take note of their positions for easy reconnection later.

Step 5: Remove Mounting Bolts

Using the appropriate socket or wrench, remove the mounting bolts that secure the alternator to the engine block or bracket. Keep track of the bolts and their locations for reinstallation.

Step 6: Install the New Alternator

Position the new alternator in place and secure it with the mounting bolts. Reconnect all electrical connections, ensuring they are properly seated and tightened.

Step 7: Reinstall the Serpentine Belt

Route the serpentine belt back onto the alternator pulley and ensure it is properly aligned with the rest of the pulleys. Use the tensioner to apply tension to the belt, ensuring it is neither too loose nor too tight.

Step 8: Reconnect the Battery

With the alternator installed and all connections secure, reconnect the negative terminal of the battery. Double-check all connections before starting the engine.

OEM vs. Aftermarket Alternators

When it comes to replacing your Honda Pilot’s alternator, you have the choice between OEM (Original Equipment Manufacturer) and aftermarket options. Here are some factors to consider when making your decision:

OEM Alternators

OEM alternators are produced by the same manufacturer that supplied the original alternator for your Honda Pilot. They are designed to meet the exact specifications of your vehicle and offer a high level of compatibility and reliability. However, OEM parts tend to be more expensive than aftermarket options.

Aftermarket Alternators

Aftermarket alternators are produced by third-party manufacturers and offer a wider range of options in terms of price and features. While some aftermarket alternators may not meet the exact specifications of your vehicle, reputable brands often provide reliable alternatives at a more affordable price point. It’s important to choose a reputable brand and ensure compatibility with your Honda Pilot.

Ultimately, the choice between OEM and aftermarket alternators depends on your budget, preferences, and specific needs. If you value exact compatibility and are willing to invest in the highest level of reliability, an OEM alternator may be the best choice. However, if you are looking for a more affordable option that still meets quality standards, an aftermarket alternator can be a suitable alternative.

Finding the Right Alternator for Your Honda Pilot

When searching for a replacement alternator for your 2011 Honda Pilot, it’s important to ensure compatibility and quality. Here are some steps to help you find the right alternator:

Refer to Your Vehicle’s Manual

Consult your vehicle’s manual or contact a Honda dealership to gather information about the specific alternator required for your Honda Pilot. This includes the alternator’s specifications, such as voltage output and amperage rating.

Research Reputable Suppliers

Research reputable suppliers and manufacturers of alternators. Look for brands with positive reviews and a history of producing reliable automotive parts. Consider factors such as warranty, customer support, and product quality when selecting a supplier.

Verify Compatibility

Ensure that the alternator you choose is compatible with your 2011 Honda Pilot in terms of fitment and electrical specifications. Check for any specific requirements or restrictions, such as the need for additional adapters or modifications.

Consider Remanufactured Alternators

Remanufactured alternators can be a cost-effective and environmentally friendly option. These alternators are rebuilt using quality components and undergo rigorous testing to ensure functionality and reliability. Consider reputable remanufactured options to save money without compromising on quality.

Cost of Alternator Replacement

The cost of alternator replacement for a 2011 Honda Pilot can vary depending on several factors, including the brand of the alternator, whether it is OEM or aftermarket, and labor charges.

On average, the cost of a new alternator can range from $200 to $600, while remanufactured alternators may cost between $150 and $400. Labor charges can vary depending on the region and the individual mechanic or service center.

It’s important to obtain quotes from reputable automotive service centers and compare prices before making a decision.

Additionally, consider the warranty offered with the alternator, as this can provide added peace of mind and potentially offset any higher upfront costs.

In conclusion, the 2011 Honda Pilot alternator is a vital component of your vehicle’s electrical system. Understanding its function, recognizing potential issues, and knowing how to address them are essential for maintaining a reliable and efficient vehicle.

By following the tips and information provided in this article, you can confidently navigate the world of the 2011 Honda Pilot alternator and keep your vehicle running smoothly for years to come.
