Unraveling P005E: Understanding Turbocharger/Supercharger Boost Control “B” Supply Voltage Circuit Low GuideMechanic.Com In the intricate domain of automotive diagnostics, where every glimmer of the “Check Engine” light indicates potential concerns, the P005E code emerges as a significant pointer to the health of the turbocharger or supercharger system.
Specifically, this diagnostic trouble code (DTC) signals a low voltage condition in the “B” supply voltage circuit of the turbocharger or supercharger boost control.
Let’s embark on a journey to decipher the intricacies behind P005E, unraveling its implications, potential causes, and strategies for effective resolution.
See Also: P005D “B” Camshaft Profile Control Stuck On Bank 2
Understanding P005E
P005E is a diagnostic trouble code that indicates a low voltage condition in the “B” supply voltage circuit of the turbocharger or supercharger boost control system.
In automotive terminology, the turbocharger and supercharger systems are responsible for increasing the engine’s air intake pressure, enhancing performance by providing additional air for combustion.
The “B” supply voltage circuit refers to one of the electrical pathways responsible for delivering power to components within the turbocharger or supercharger system.
Delving into Turbocharger/Supercharger Systems
Before diving deeper into P005E, it’s essential to comprehend the role of turbochargers and superchargers in the vehicle’s operation. Both turbochargers and superchargers function to compress air and increase its density before it enters the engine’s combustion chamber.
This compressed air allows for more fuel to be burned, resulting in increased power output and improved efficiency. The boost control system regulates the pressure of the compressed air, ensuring optimal performance under varying driving conditions.
P005E Turbocharger/Supercharger Boost Control “B” Supply Voltage Circuit Low
Common Causes

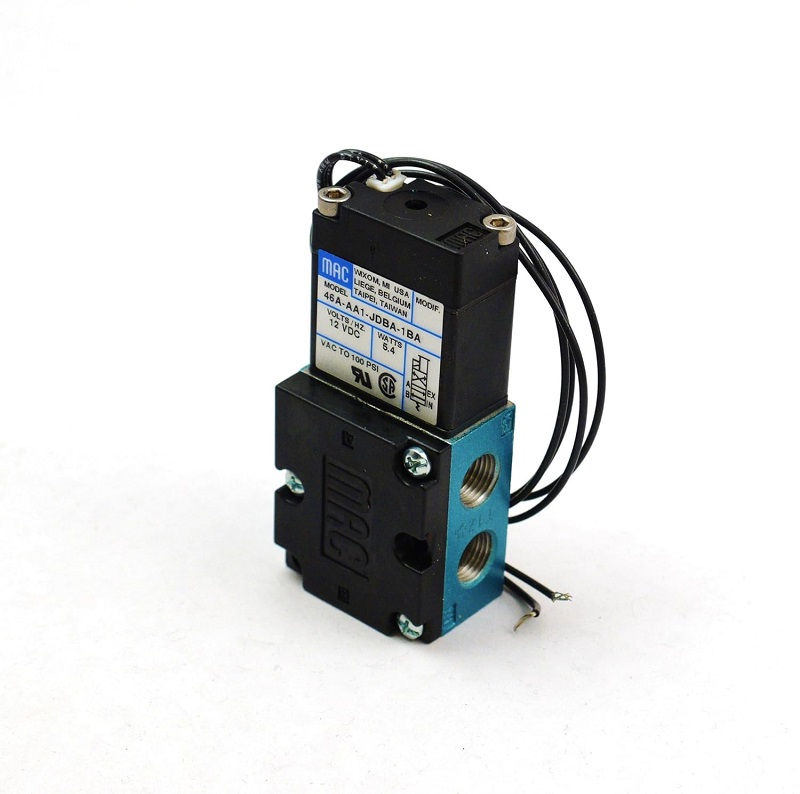

Check out this Mac 4 port solenoid boost valve pwm 46A-AA1-JDBA-1BA
Several factors can trigger the P005E code, indicating a low voltage condition in the turbocharger or supercharger boost control “B” supply voltage circuit:
Faulty Boost Control Solenoid:
A defective boost control solenoid, which regulates the operation of the turbocharger or supercharger system, can lead to a low voltage condition in the “B” supply voltage circuit, triggering the P005E code.
Electrical Wiring Issues:
Damage, corrosion, or disconnection in the wiring harness or connectors associated with the boost control system can disrupt the flow of voltage, resulting in a low voltage condition and the onset of the P005E code.
Faulty Boost Pressure Sensor:
A malfunctioning boost pressure sensor, which measures the pressure of the compressed air in the intake system, can cause erroneous voltage readings in the “B” supply voltage circuit, leading to the P005E code.
Blown Fuse:
A blown fuse in the electrical circuit supplying power to the turbocharger or supercharger boost control system can result in a low voltage condition, triggering the P005E code.
Faulty ECU:
In rare cases, a malfunctioning engine control unit (ECU) may fail to deliver the appropriate voltage to the turbocharger or supercharger boost control system, leading to a low voltage condition and the appearance of the P005E code.
P005E Turbocharger/Supercharger Boost Control “B” Supply Voltage Circuit Low
Diagnosing

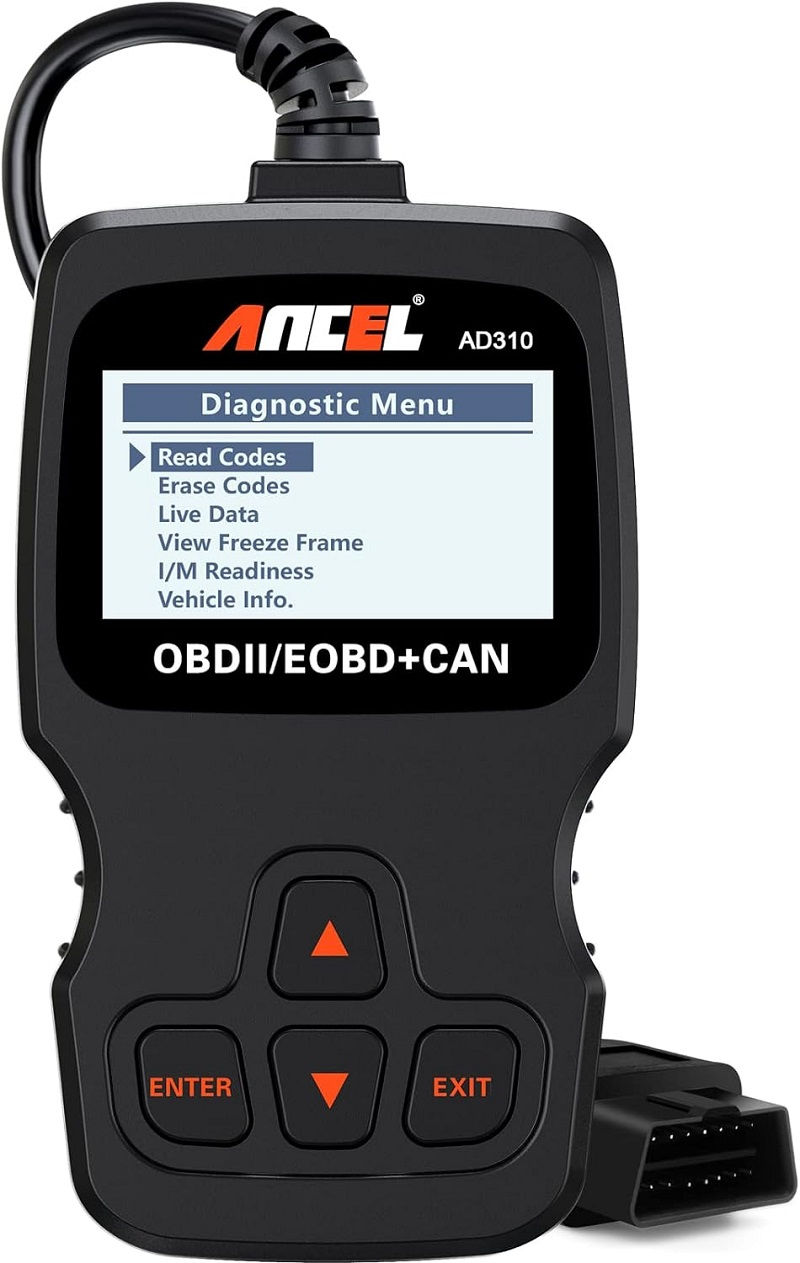

Check out this ANCEL AD310 Classic Enhanced Universal OBD II Scanner Car Engine Fault Code Reader CAN Diagnostic Scan Tool-Black
Diagnosing a P005E code typically involves a systematic approach to pinpointing the underlying issue:
Code Retrieval:
Utilize an OBD-II scanner to retrieve the stored trouble code and any accompanying freeze frame data, providing insights into the conditions present when the code was set.
Visual Inspection:
Conduct a thorough visual inspection of the turbocharger or supercharger system and its associated wiring, checking for signs of damage, corrosion, or disconnection.
Boost Control Solenoid Testing:
Test the boost control solenoid using a multimeter to verify proper operation and resistance within the manufacturer’s specified range.
Boost Pressure Sensor Testing:
Test the boost pressure sensor using a multimeter or diagnostic tool to ensure it is providing accurate readings within the manufacturer’s specified range.
Electrical Circuit Testing:
Conduct voltage and continuity tests on the electrical circuit supplying power to the turbocharger or supercharger boost control system, checking for any abnormalities or inconsistencies.
P005E Turbocharger/Supercharger Boost Control “B” Supply Voltage Circuit Low
Addressing
Once the root cause of the P005E code has been identified, appropriate measures can be undertaken for resolution:
Boost Control Solenoid Replacement:
If the boost control solenoid is found to be faulty, replace it with a new, high-quality solenoid compatible with the vehicle’s make and model.
Wiring or Connector Repair:
Rectify any damage, corrosion, or disconnection in the wiring harness or connectors associated with the turbocharger or supercharger boost control system, ensuring proper electrical continuity.
Boost Pressure Sensor Replacement:
If the boost pressure sensor is determined to be faulty, replace it with a new, high-quality sensor compatible with the vehicle’s make and model.
Fuse Replacement:
If a blown fuse is identified as the cause of the low voltage condition, replace it with a new fuse of the appropriate rating to restore proper electrical function.
ECU Diagnosis and Repair:
If all other potential causes have been ruled out, consider diagnosing and repairing any faults within the engine control unit (ECU) that may be contributing to the low voltage condition and the onset of the P005E code.
Conclusion
See Also: P005C Code “B” Camshaft Profile Control Performance/Stuck Off Bank 2
In conclusion, P005E serves as a diagnostic indicator of a low voltage condition in the turbocharger or supercharger boost control “B” supply voltage circuit.
Understanding the functionality of turbocharger and supercharger systems, potential causes of the code, and the diagnostic process is crucial for effective troubleshooting and resolution.
By adhering to a systematic approach and promptly addressing the identified issues, motorists and technicians alike can navigate through P005E with confidence, restoring optimal engine performance and efficiency.
