Understanding P0061 Code HO2S Heater Resistance (Bank 2, Sensor 3) GuideMechanic.Com Modern vehicles are equipped with an array of sensors and systems designed to monitor and regulate engine performance. One critical component in this system is the oxygen sensor, or O2 sensor.

It plays a crucial role in measuring the amount of oxygen in the exhaust gases to optimize fuel delivery and ensure efficient combustion. However, when issues arise with these sensors, it can lead to various performance problems.

One such issue is the P0061 error code, which specifically relates to the HO2S (Heated Oxygen Sensor) Heater Resistance in Bank 2, Sensor 3. In this article, we will delve into what this error code signifies, its potential causes, and how it can be resolved.

See Also: P005E Turbocharger/Supercharger Boost Control “B” Supply Voltage Circuit Low

Understanding P0061 Error Code:

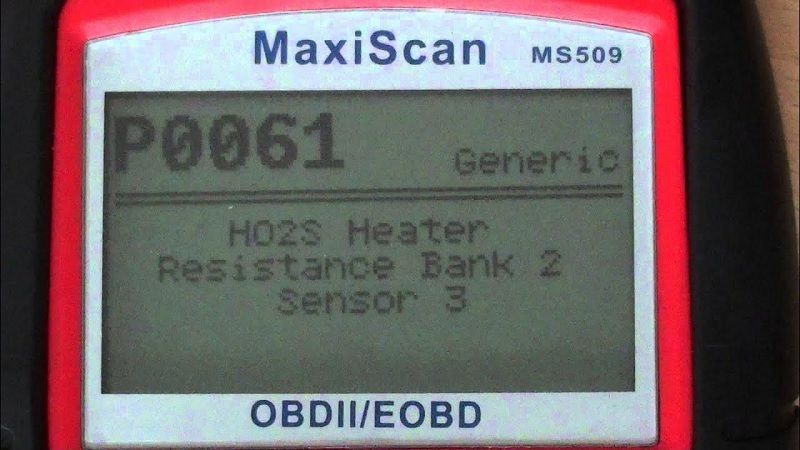

P0061 Code

P0061 is a diagnostic trouble code (DTC) that indicates a problem with the heater circuit in the oxygen sensor located in Bank 2, Sensor 3. Bank 2 refers to the side of the engine that does not contain cylinder 1, while Sensor 3 indicates the third oxygen sensor in the exhaust system, counting from the engine towards the tailpipe.

The purpose of the heater circuit in the oxygen sensor is to quickly bring the sensor up to operating temperature when the engine is cold.

This helps the sensor to provide accurate readings to the engine control module (ECM) sooner, allowing for more precise fuel and air mixture control.

A malfunction in this heater circuit can lead to inefficient sensor operation and affect the engine’s performance and emissions.

Potential Causes of Error Code:

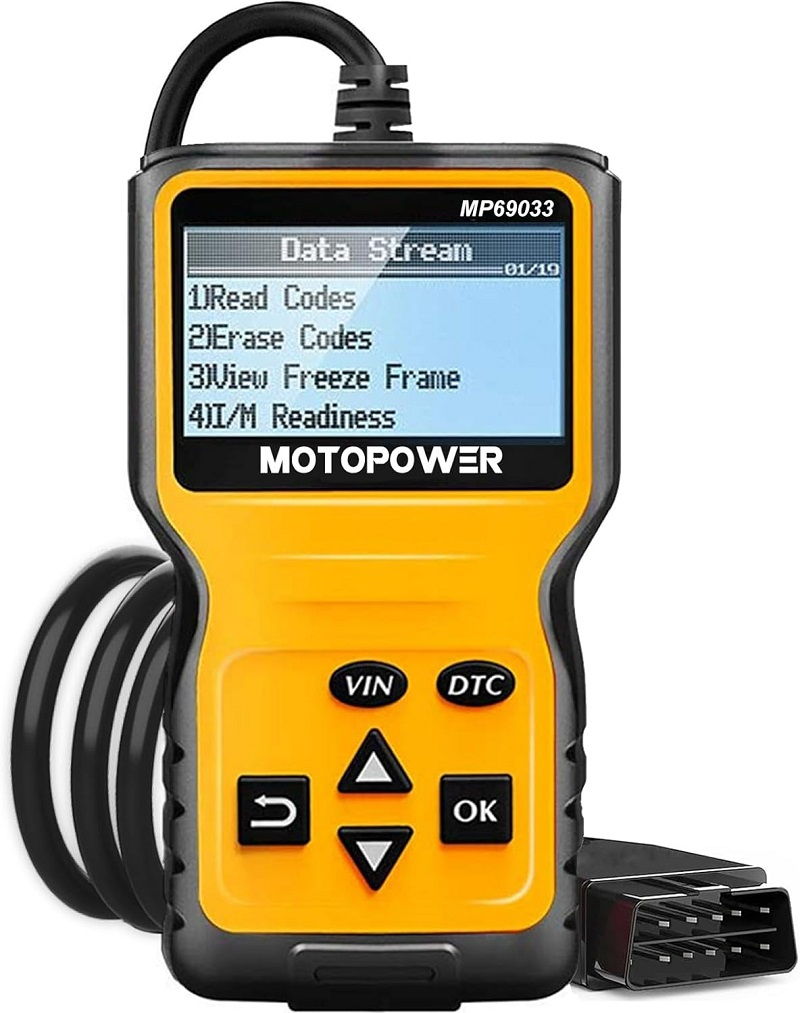

Check out this MOTOPOWER MP69033 Car OBD2 Scanner Code Reader Engine Fault Scanner CAN Diagnostic Scan Tool for All OBD II Protocol Cars Since 1996, Yellow

P0061 Code

Several factors can contribute to the triggering of the P0061 error code. Some of the most common causes include:

Faulty Oxygen Sensor:

Over time, oxygen sensors can degrade or fail due to exposure to extreme temperatures and contaminants in the exhaust gases. A defective sensor may not heat up properly, leading to the P0061 error code.

Wiring Issues:

Damage to the wiring harness or connectors associated with the oxygen sensor heater circuit can disrupt the flow of electrical current, preventing the sensor from heating up correctly.

Blown Fuse:

A blown fuse in the oxygen sensor heater circuit can also cause the P0061 error code. Fuses can blow due to electrical faults or excessive current draw.

ECM Failure:

In rare cases, a malfunctioning engine control module (ECM) may fail to send the proper signals to the oxygen sensor heater circuit, resulting in the P0061 error code.

P0061 Code: HO2S Heater Resistance (Bank 2, Sensor 3)

Diagnosing and Resolving Error Code:

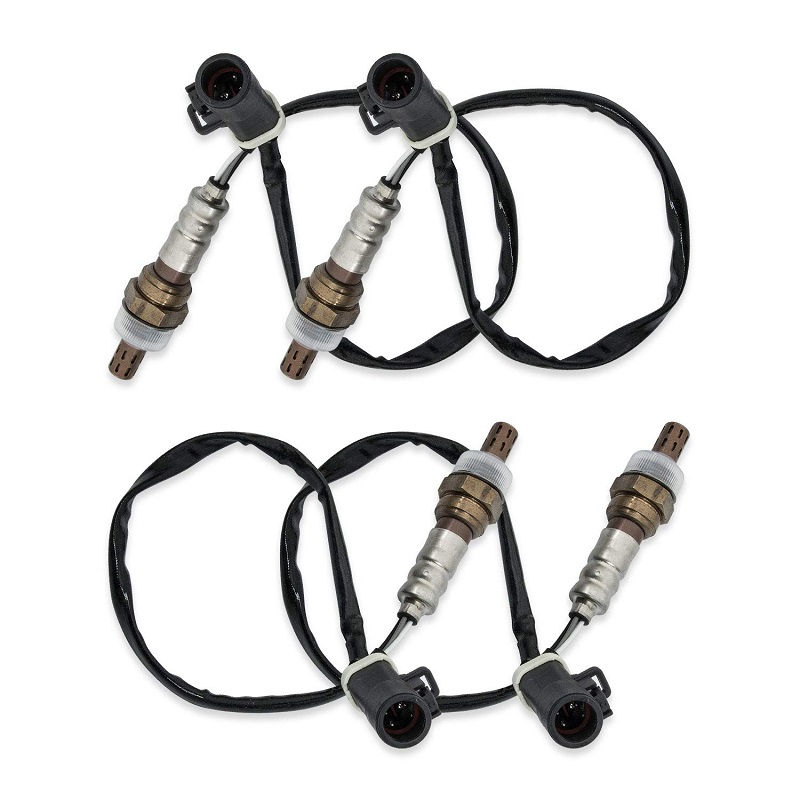

Check out this RANSOTO O2 Oxygen Sensor 15717 Downstream Upstream Compatible with 1990-2014 Ford F150 F250 F350 Ranger Escape Explorer Lincoln Mazda Mercury Replaces 15716 15718 Set of 4

P0061 Code

Diagnosing the underlying cause of the P0061 error code typically requires a systematic approach and specialized diagnostic tools. Here are some steps that technicians may take to address this issue:

Visual Inspection:

The first step is to visually inspect the oxygen sensor and its associated wiring for any signs of damage, corrosion, or loose connections. Any issues found during this inspection should be addressed promptly.

Check Heater Resistance:

Using a digital multimeter, technicians can measure the resistance of the oxygen sensor heater circuit to determine if it falls within the manufacturer’s specified range. If the resistance is out of range, the sensor may need to be replaced.

Test Heater Circuit:

Technicians can also perform tests to verify the integrity of the heater circuit, including checking for voltage at the sensor connector and testing continuity in the wiring harness.

Scan for Additional Fault Codes:

In some cases, additional fault codes may be present that can provide further insight into the root cause of the problem. Technicians should scan the ECM for any related codes and address them accordingly.

Replace Faulty Components:

Depending on the findings of the diagnostic tests, technicians may need to replace the oxygen sensor, repair damaged wiring, or replace blown fuses to resolve the P0061 error code.


See Also: P005D “B” Camshaft Profile Control Stuck On Bank 2

The P0061 error code relating to HO2S Heater Resistance (Bank 2, Sensor 3) is indicative of a problem with the oxygen sensor heater circuit in the vehicle’s exhaust system.

While this issue may not always result in immediate drivability issues, it can negatively impact engine performance and emissions if left unresolved.

Prompt diagnosis and repair are essential to ensure the proper functioning of the oxygen sensor and maintain optimal engine performance.

By following a systematic diagnostic process and addressing any underlying issues, technicians can effectively resolve the P0061 error code and restore the vehicle’s performance and efficiency.
