P0009 Code: Engine Position System Performance Bank 2

Posted on

This post contains affiliate links. This means I will make a commission at no extra cost to you should you click through and make a purchase [ “As an Amazon Associate, I earn from qualifying purchases.” ]. Read the full disclosure here.

P0009 Code: Engine Position System Performance Bank 2 GuideMechanic.Com The check engine light is a dreaded sight for any car owner. It’s that little glowing indicator on your dashboard that signals trouble under the hood.

When it illuminates, it’s often accompanied by a sense of uncertainty and concern. One of the many potential culprits for its illumination is the P0009 trouble code, specifically related to the Engine Position System Performance on Bank 2.

Understanding this code, its implications, and how to address it can alleviate some of that anxiety and keep your vehicle running smoothly.

Decoding the P0009 Code:

P0009 Code

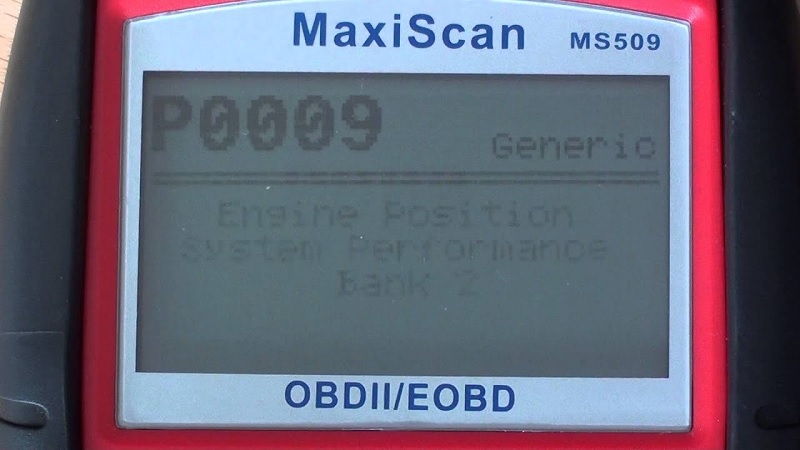

The P0009 trouble code is a generic diagnostic trouble code (DTC) that indicates a problem with the Engine Position System Performance on Bank 2.

See Also: P0008 Code: Engine Position System Performance Bank 1

In simpler terms, it means that the Engine Control Module (ECM) or Powertrain Control Module (PCM) has detected an inconsistency in the position of the crankshaft and camshaft on Bank 2 of the engine.

In an internal combustion engine, the crankshaft and camshaft play crucial roles in the engine’s operation. The crankshaft is responsible for converting the linear motion of the pistons into rotational motion, while the camshaft regulates the opening and closing of the engine’s valves. The ECM or PCM relies on data from sensors to ensure precise timing and synchronization between these components.

Causes of Code:

Several factors can trigger the P0009 code, including:

Faulty Camshaft Position Sensor:

A malfunctioning camshaft position sensor can provide inaccurate data to the ECM, leading to timing discrepancies and triggering the P0009 code.

Timing Chain or Belt Issues:

A stretched or damaged timing chain or belt can affect the synchronization between the crankshaft and camshaft, resulting in timing errors and code P0009.

Wiring or Connector Problems:

Loose, damaged, or corroded wiring or connectors associated with the camshaft position sensor can disrupt the signal transmission, leading to code P0009.

Mechanical Engine Issues:

Issues such as a damaged reluctor ring, worn timing components, or engine misalignment can also cause the P0009 code to appear.

Symptoms of P0009 Code:

Check out this AUTOPHIX OBD2 Scanner Enhanced OM126P Vehicle Code Reader Auto Diagnostic Scan Tool Check Engine Light Read/Erase Fault Code Smog Test for All OBDII Cars After 1996[Upgrade Version]

P0009 Code

When the P0009 code is triggered, you may experience one or more of the following symptoms:

Check Engine Light:

The most obvious symptom is the illumination of the check engine light on the dashboard.

Engine Misfires:

Timing discrepancies caused by the P0009 code can result in engine misfires or rough idling.

Decreased Engine Performance:

You may notice a reduction in engine power or responsiveness.

Poor Fuel Efficiency:

Timing issues can lead to inefficient combustion, resulting in decreased fuel economy.


In severe cases, the engine may stall or fail to start altogether.

Diagnosing and Repairing P0009 Code:

Check out this MOTOPOWER MP69033 Car OBD2 Scanner Code Reader Engine Fault Scanner CAN Diagnostic Scan Tool for All OBD II Protocol Cars Since 1996, Yellow

P0009 Code

Diagnosing and repairing the P0009 code typically involves the following steps:

Scan for DTCs:

Use an OBD-II scanner to retrieve the trouble codes stored in the ECM or PCM. Along with P0009, any additional codes should be noted, as they may provide valuable clues.

Inspect Camshaft Position Sensor:

Check the camshaft position sensor and its wiring for any signs of damage, wear, or corrosion. Replace the sensor if necessary, and ensure all connections are secure.

Check Timing Components:

Inspect the timing chain or belt, as well as associated components such as tensioners and guides, for wear or damage. Replace any components that show signs of deterioration.

Test Sensor Signals:

Use a multimeter to test the camshaft position sensor’s output signal while the engine is running. Compare the readings to specifications provided by the manufacturer.

Verify Timing:

If necessary, perform a timing adjustment or alignment to ensure proper synchronization between the crankshaft and camshaft.

Clear Codes and Test Drive:

After completing repairs, clear the trouble codes from the ECM or PCM using the OBD-II scanner. Take the vehicle for a test drive to verify that the issue has been resolved and that the check engine light remains off.


See Also: P0007 Code: Fuel Shutoff Valve ‘A’ Control Circuit High

The P0009 trouble code related to Engine Position System Performance on Bank 2 can be a concerning issue for vehicle owners.

However, understanding its causes, symptoms, and diagnostic procedures can help alleviate some of the anxiety associated with it.

Prompt diagnosis and appropriate repairs are essential to prevent further damage to the engine and ensure continued reliable performance.

If you’re unsure about diagnosing or repairing the issue yourself, don’t hesitate to seek assistance from a qualified mechanic or automotive technician.

By addressing the P0009 code promptly, you can keep your vehicle running smoothly and avoid more significant problems down the road.
